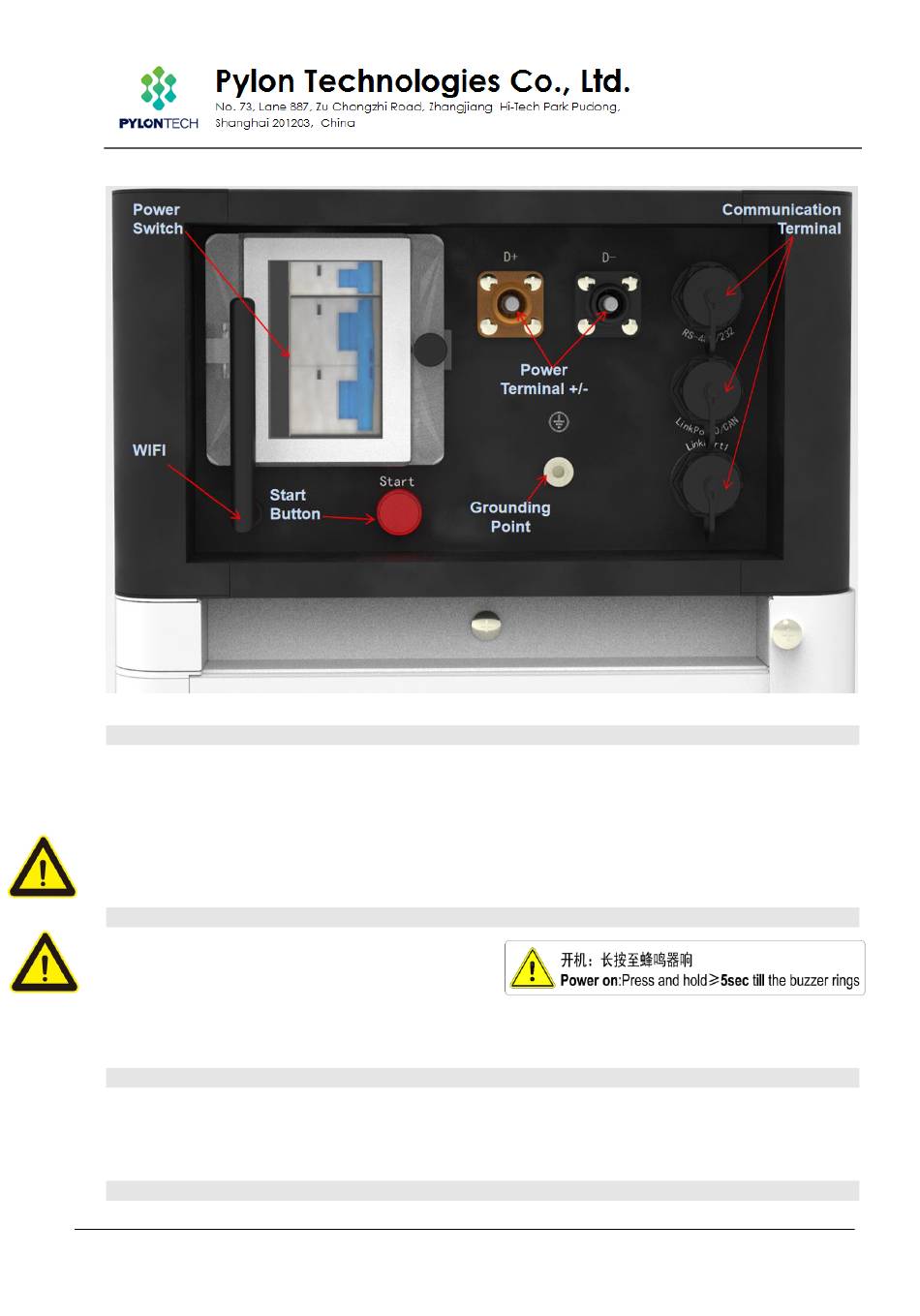

Control Module (FC0048M-100)
Power Switch
Switch A (1P). ON: the battery system's controller able to turn on. OFF: whole system turns OFF.
Switch B (2P). Main breaker.
Caution: When the breaker is tripped off because of over current or short circuit, must wait
more than 30min then can turn on it again, otherwise may cause the breaker damage.
Start
Start function: press more than 5sec until the
buzzer rings, to turn on controller.
Black start function: when system turn on, and
relay is OFF, press more than 5sec, and relay will turn on for 3 min (depends on conditions).
Wi-Fi
Currently not available. Function reserved.
Power Terminal (+/-)
Cable Panel
9 / 13
19PIFP0301
