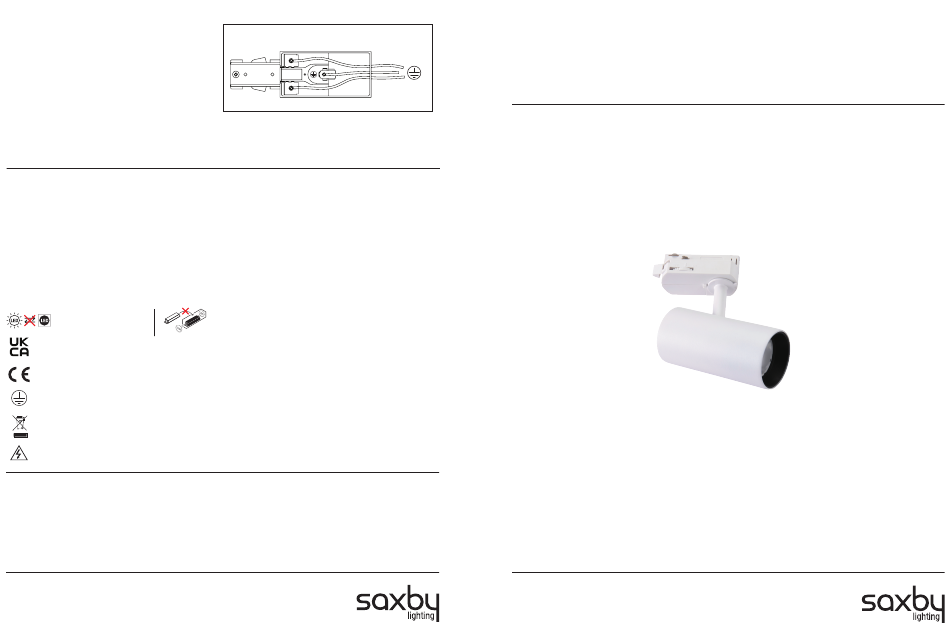

Saxby Lighting 101626 Instruction Manual

Wiring
Undo the screw and remove the cover from the live end. Push out
the desired cable access point. Indentify the correct cable from the
supply and pull through.
Connect the supply wires to the terminal block, opposite the
corresponding wires from the fitting. The central connector can
also be wired in this way.
Refit the cover onto the live end taking care not to trap the cable.
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
101626 / 101628--15W LED module (COB), 3000K
Type:
101627 / 101629--15W LED module (COB), 4000K
101630 / 101632--23W LED module (COB), 3000K
101631 / 101633--23W LED module (COB), 4000K
101634 / 101636--34W LED module (COB), 3000K
101635 / 101637--34W LED module (COB), 4000K
This product contains a light source of energy efficiency class E.
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This product is Class 1, must be connected to earth.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
Caution! Risk of electric shock!
Care and Safety
• We recommend cleaning with a soft dry cloth. Do not use
solvents or abrasive cleaners as these could damage the
finish.
For further information, please visit https://www.lighting-info.co.uk/101626
V1 06/04/2022
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
N
L
Check that...
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection block.
Non-replaceable control gear
• Always disconnect the product from mains at least 10 minutes
allowing to cool down before any maintenance or adjustment.
• For your safety, always switch off the power supply before cleaning.
Instruction manual
Supply
Coltled Track Head
N
101626, 101627, 101628, 101629, 101630, 101631
L
101632, 101633, 101634, 101635, 101636, 101637
