Battery Replacement
If after routine operation check, the lamp does not remain lit for the three hours period, a new battery pack may be required.
• Switch off the electricity at the mains, both switched and permanent supply.
• Allow batteries to fully discharged then reconnect to supply and allow to charge for 24 hours.
• Test again for 3 hours, if light does not remain lit change the battery pack as follows:
- Disconnect from the mains supply both permanent and switched supply.
- Undo two screws to remove the cover then open 4 clips with slotted screwdriver
to separate the rear casing from the product. Keep screws in safe place for refitting later.
- Unplug the battery lead from the lead coming from the PCB. Remove any cable ties around the cables.
- Remove the battery pack and lift the battery pack out of the fitting. Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
- Replace the battery with a 3.6V 800mAh Ni-Cd only. Use of a different type of battery will damage the product.
- Write current date on the new battery pack.
- Fit new battery pack in position and re-secure using the screws set aside earlier. Refit the cable ties in position and then
plug battery pack into the PCB.
- Plug battery pack into circuit board.
- Close and secure gear tray.
- Replace diffuser.
- Restore power and allow to charge for 24 hours.
- Perform full operation check and update test record.
Technical data
Supply
220-240 V~, 50 Hz
Duration: 3 hours (180 minutes)
Voltage:
Operating Temperature: -20ºC to 45ºC
Bulb
3W LED (SMD), 6500K
Maximum Operatin Humidity: 10-90%
Type:
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP65.
65
IP
This product is rated at IK08.
08
IK
Care and Safety
Live Voltages may be present in this unit even when turned off or when completely disconnected.
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
This bulb is protected by a shade. This part must be replaced immediately should the shade become
cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
V2 13/10/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: 1 Gnarrenburg, 27442
Change over Time: Approximately 1s
Battery Specification: 3.6V 800mAh Ni-Cd
Battery Charge Time: 24 hours
Battery warranty: 2 years
Instruction manual

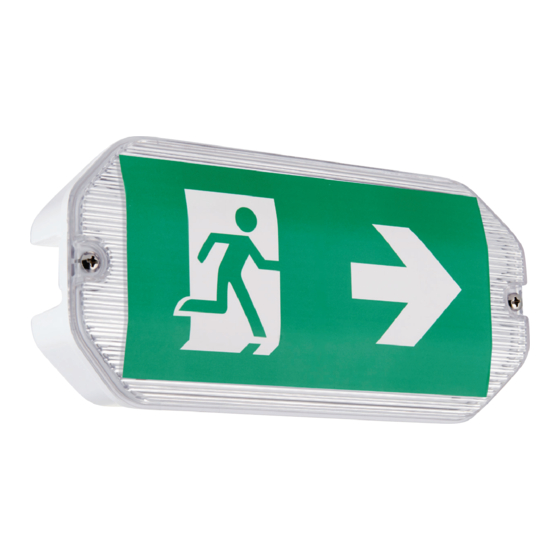

Sight ECO
91358
www.saxbylighting.com
