Saxby Lighting Surge PIR Instruction Manual

PIR Specification

78963, 78965, 78967 and 78969 are fitted with PIR motion sensor. The specification is as follows:
Power Source: 220-240VAC Ambient Light:
2-2000Lux. (adjustable)
Power Frequency: 50/60Hz
Detection Motion Speed:
Rated Load: MAX. 50W
0.6-1.5m/s
Detection Range: 120º
Working TemperaturePower:
Detection Distance:
-10ºC--+45ºC
8±2m (<24ºC)(adjustable)
Working Humidity: <40%RH
Time Setting:
10±5sec-8±2min. (adjustable) Installation Height: 1-3m

Technical data

Supply
220-240 V~, 50 Hz
Voltage:
78963 : 10W LED Module (SMD), 4000K
Bulb
Type:
78965 : 20W LED Module (SMD), 4000K
These products contain a light source of energy efficiency class F.
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This product is Class 1, must be connected to earth.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
44
IP

Care and Safety

We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
This light source is protected by a shade. This part must be replaced immediately should the shade
become cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
For further information, please visit https://www.lighting-info.co.uk/78963
V4 07/01/2022
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
induction area figure:
8m±2m
78967 : 30W LED Module (SMD), 4000K
78969 : 50W LED Module (SMD), 4000K
Non-replaceable control gear

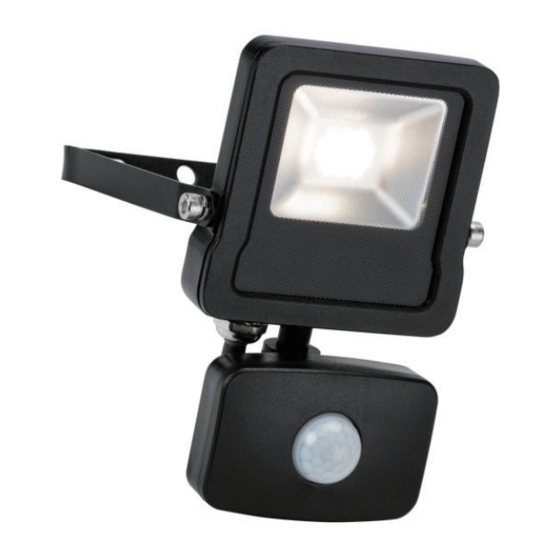

Instruction manual
Surge PIR
78963, 78965, 78967, 78969
