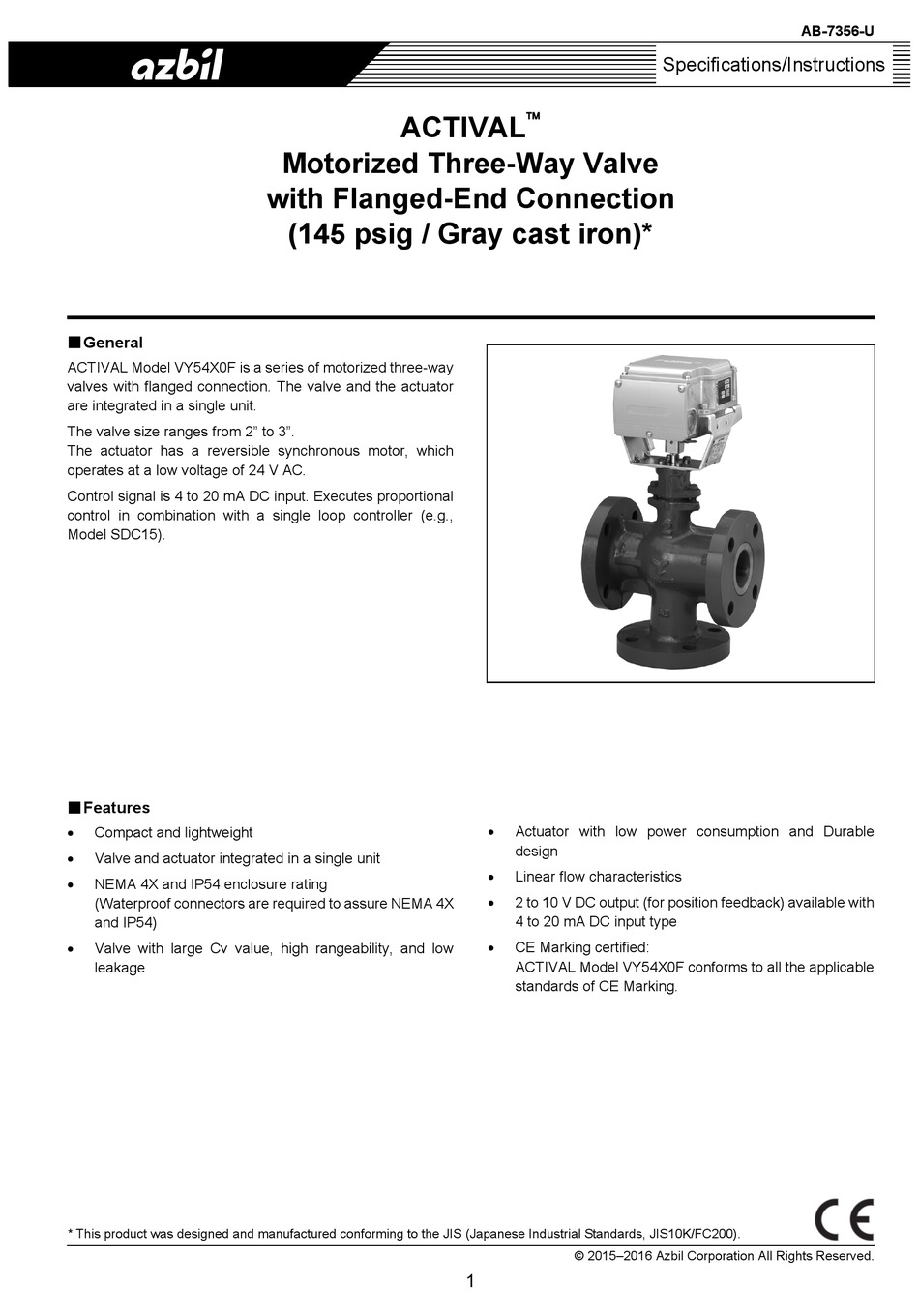

Motorized three-way valve with flanged-end connection
Hide thumbs Also See for ACTIVAL:

Advertisement

Quick Links

 General
ACTIVAL Model VY54X0F is a series of motorized three-way
valves with flanged connection. The valve and the actuator
are integrated in a single unit.
The valve size ranges from 2" to 3".
The actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
Control signal is 4 to 20 mA DC input. Executes proportional
control in combination with a single loop controller (e.g.,
Model SDC15).
 Features
Compact and lightweight
Valve and actuator integrated in a single unit
NEMA 4X and IP54 enclosure rating
(Waterproof connectors are required to assure NEMA 4X
and IP54)
Valve with large Cv value, high rangeability, and low
leakage
* This product was designed and manufactured conforming to the JIS (Japanese Industrial Standards, JIS10K/FC200).
ACTIVAL
Motorized Three-Way Valve
with Flanged-End Connection
(145 psig / Gray cast iron)*
Actuator with low power consumption and Durable
design
Linear flow characteristics
2 to 10 V DC output (for position feedback) available with
4 to 20 mA DC input type
CE Marking certified:
ACTIVAL Model VY54X0F conforms to all the applicable
standards of CE Marking.
© 2015–2016 Azbil Corporation All Rights Reserved.
1
AB-7356-U
Specifications/Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVAL and is the answer not in the manual?

Questions and answers

Summary of Contents for Azbil ACTIVAL

  • Page 1 Flanged-End Connection (145 psig / Gray cast iron)*  General ACTIVAL Model VY54X0F is a series of motorized three-way valves with flanged connection. The valve and the actuator are integrated in a single unit. The valve size ranges from 2” to 3”.
  • Page 2: Safety Instructions

    If this product is used in a clean room or a place where particularly high reliability or control accuracy is required, please contact our sales representative. Azbil Corporation will not bear any responsibility for the results produced by the operators.
  • Page 3 Dispose of this product as industrial waste in accordance with your local regulations. Do not reuse all or part of the  product.. IMPORTANT: In case an Azbil Corporation product fails, you are required to provide your Equipment with safety design such as fool-proof design* , and fail-safe design* (anti-flame propagation design, etc.), whereby preventing any occurrence of physical injuries, fires, significant damage, and so forth.
  • Page 4: Model Numbers

    * This product was designed and manufactured conforming to the JIS (Japanese Industrial Standards, JIS10K / FC200).  Specifications For weight of the ACTIVAL, refer to the table shown in the section Dimensions.  Valve and actuator (as a single unit) specifications...
  • Page 5 (0 to 100) on front, rear, and bottom sides. (0: B-AB (Port B fully open), 100: A-AB (Port A fully open) Manual operation Available. Refer to the section Manually opening/closing the ACTIVAL. Wires connection M3.5 screw terminal connection Enclosure rating...
  • Page 6: Application Examples

    AB-7356-U  Linear flow characteristic diagram Composite flow characteristic Port B Port A Actuator input signal (%) Figure 1. Linear flow characteristic diagram  Application examples For diverting valve application For mixing valve application Figure 2. Example of diverting valve application Figure 3.
  • Page 7: Parts Identification

    Min. 4" (102 mm)* N × h Dia. D Dia. C Dia.  Note: Leave a clearance of 12" (305 mm) if you require to open the top cover after the ACTIVAL is installed. Valve Model number Unit Weight size 2"...
  • Page 8: Installation

     standards.  ACTIVAL Model VY54X0F is the valve and actuator integrated into a single unit. Do not combine the valve with any other actuator, or do not combine the actuator with any other valve.  To remove foreign substances inside the pipes, install a strainer (with 40 or more meshes) on the inflow side of each valve.
  • Page 9: Mounting Position

     When installing the ACTIVAL to pipes, do not allow any object, such as chips, to get inside a pipe or valve. Valve cannot fully close, or the valve seat may get damaged causing fluid leakage, due to an object jammed inside the valve.
  • Page 10 Disconnect the power from the ACTIVAL before manually operating the ACTIVAL. As shown in Fig. 12, from the front of the ACTIVAL, hold the joint using a tool such as a wrench, and turn the joint slowly toward the set position.
  • Page 11 6) Mount the actuator. Place the actuator, with its facing direction changed, on the yoke, and fix them with the screws. <Step 4 in Fig. 13> 7) Check that the ACTIVAL with the mounting position changed operates smoothly from 0 % position to 100 % position. Step 1...
  • Page 12  The ACTIVAL is designed for 24 V AC power supply voltage. Do not apply any other power voltage (e.g., 120 V AC, 240 V AC) to the ACTIVAL.  For 4 to 20 mA input type, make sure the polarity of the power supply and 2 to 10 V DC feedback output referring to the wiring diagrams.
  • Page 13: Wiring Precautions

    AB-7356-U  Wiring precautions 1) To lead the wires into the terminals, cut out a knockout hole for a wiring port. Two knockout holes are provided on the bilateral sides of the actuator terminals. Select a knockout hole according to the conduit mounting direction, and cut it out by lightly knocking the hole using a screwdriver.
  • Page 14: Terminal Connection

    AB-7356-U Terminal connection Further connection example    4 to 20 mA DC input (Model VY5430F00XX)  4 to 20 mA DC input (Model VY5430)  A power supply commonly used Vacant 24 V AC 4 to 20 mA DC 2 to 10 V DC power supply inputs from...
  • Page 15 Note: Using the control signals commonly for 4 to 20 mA DC input Attach it when the controller side is not isolated. The 4 to 20 mA DC input of ACTIVAL is not isolated from the The terminal , , and  are connected internally.
  • Page 16: Inspection And Maintenance

    Inspect the ACTIVAL according to Table 1.  Manually open/close the ACTIVAL at least once a month if it is left in inactive state for a long period.  Visually inspect the fluid leakage of the valve and the actuator operations every six months. If any of the problems described in Table 2 are found, take corresponding actions shown in the table.
  • Page 17 AB-7356-U This blank page is added for page layout purposes.
  • Page 18 AB-7356-U This blank page is added for page layout purposes.
  • Page 19 AB-7356-U This blank page is added for page layout purposes.
  • Page 20 AB-7356-U ACTIVAL is a trademark of Azbil Corporation in Japan or in other countries. Rev. 4.0 Jun. 2016 AB-7356-U...
