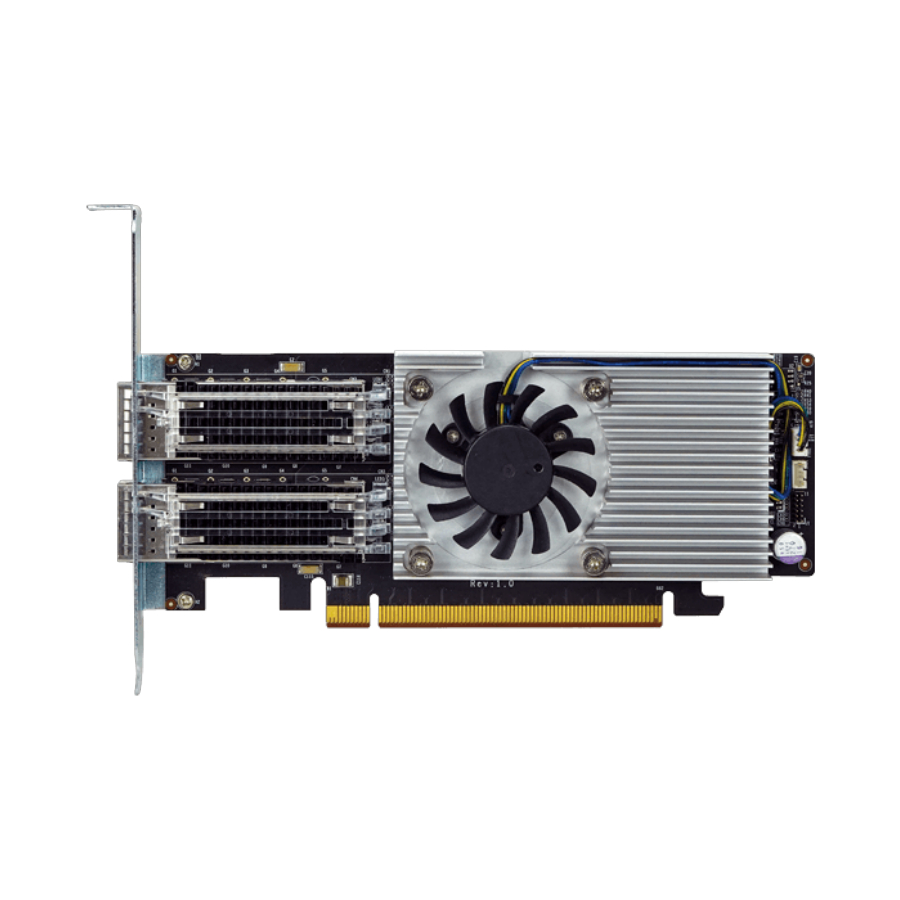

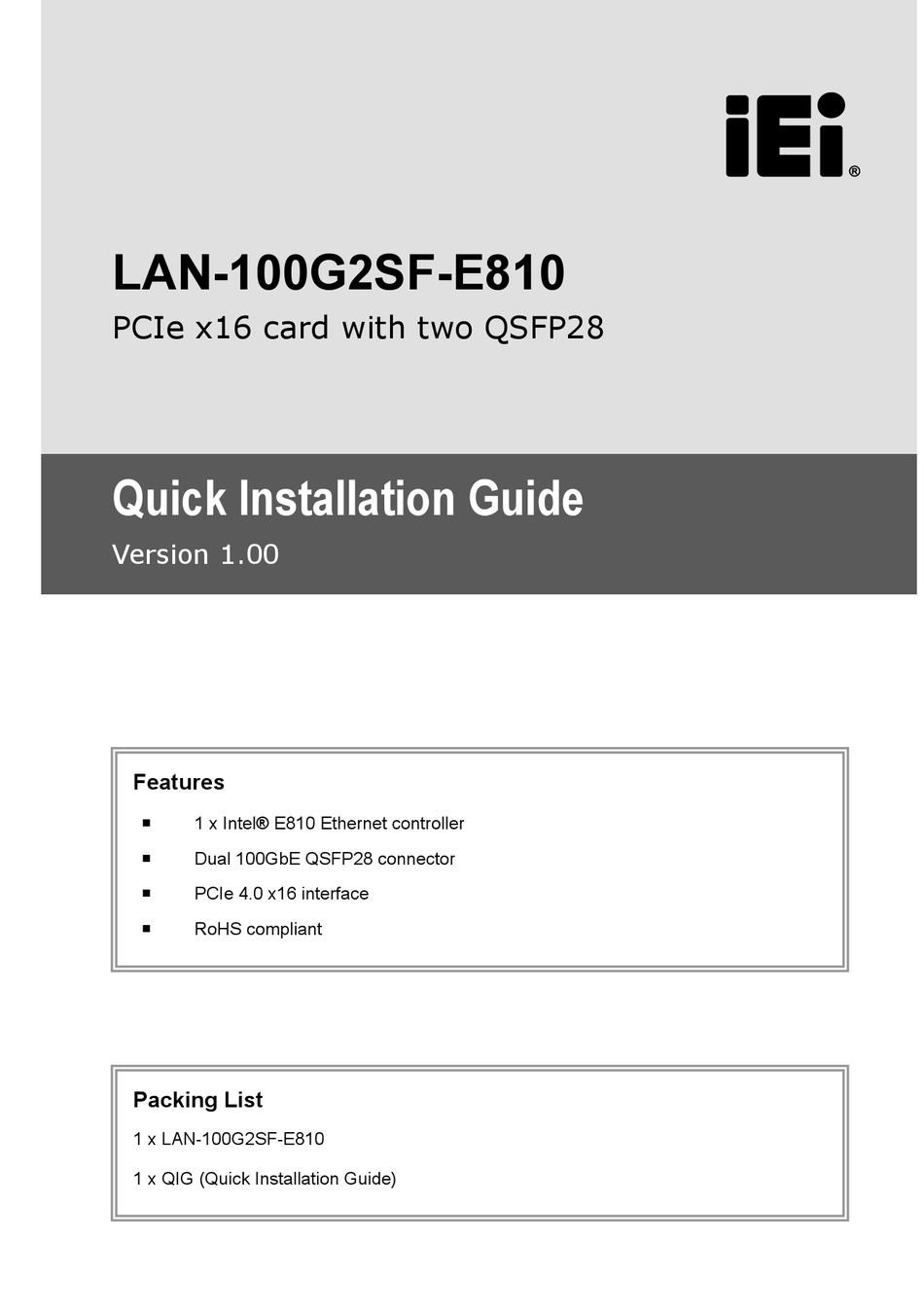

- Page 1 PCIe x16 card with two QSFP28 Quick Installation Guide Version 1.00 Features 1 x Intel® E810 Ethernet controller Dual 100GbE QSFP28 connector PCIe 4.0 x16 interface RoHS compliant Packing List 1 x LAN-100G2SF-E810 1 x QIG (Quick Installation Guide)
-
Page 2: Specifications
-20°C ~ +75°C (-4°F ~ +167°F) Operating Humidity 5% ~ 90%, non-condensing Dimensions 169.54 mm x 56.16 mm x 21.59 mm Ordering Information LAN-100G2SF-E810: Intel® Ethernet Controller E810-CAM2 based PCIe card with two QSFP28 by PCIe 4.0 x16 interface Block Diagram... -
Page 3: Connector Pinouts
Connector Pinouts QSFP28 Connectors Description Description (Module ground) (Module ground) TX2- RX2- (Transmitter inverted data input) (Receiver inverted data output) TX2+ RX2+ (Transmitter noninverted data input) (Receiver noninverted data output) (Module ground) (Module ground) TX4- RX4- (Transmitter inverted data input) (Receiver inverted data output) TX4+ RX4+... -
Page 4: Installation
Remove a blank bracket panel on the back of the computer that aligns with the PCIe slot for installing the LAN-100G2SF-E810. Save the bracket screw. 4. Align the LAN-100G2SF-E810 to the PCIe slot. Press down gently, but firmly, to seat the LAN-100G2SF-E810 correctly in the slot. Install the bracket screw to secure it to the system’s chassis. -
Page 5: Safety Instructions
Headquarters America China IEI Integration Corp. IEI Technology USA Corp. IEI Integration (Shanghai) Corp. No. 29, ZhongXing Rd., Xizhi Dist., 138 University Parkway, Pomona, No. 515, Shen Fu Rd., Xin Zhuang Industrial Develop Zone,...
