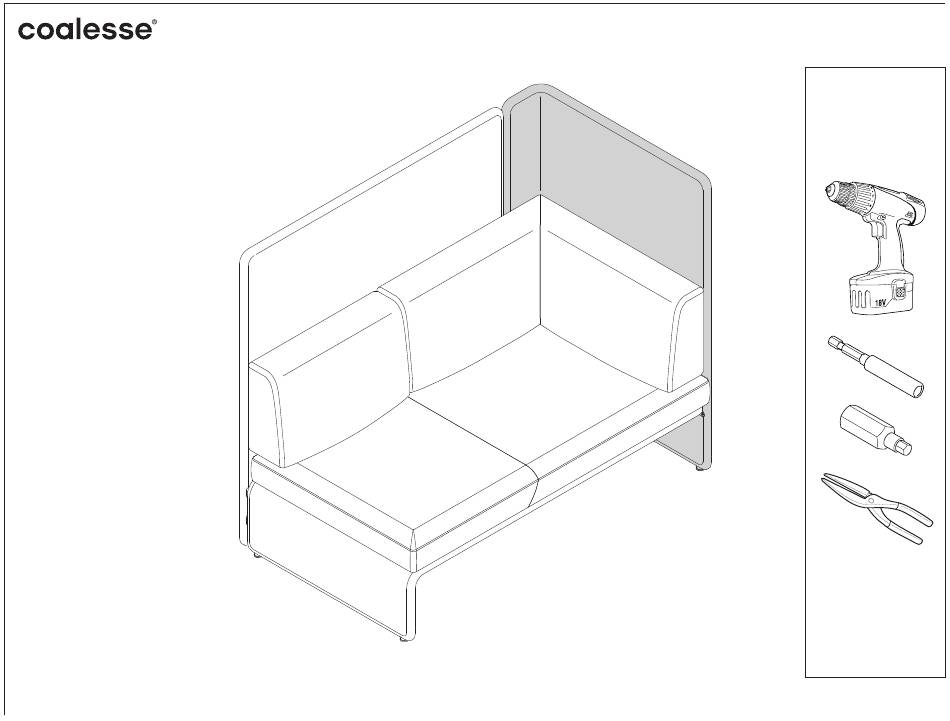

- Page 1 ™ Lagunitas Corner Screen Replacement If you have a problem, question, or request, call your local dealer, or Coalesse at 1.800.627.6770 Or visit our website: www.coalesse.com © 2014 Coalesse San Francisco, California U.S.A. Page 1 of 3 Printed in U.S.A.
- Page 2 SCREEN GANGING CLIP Screen removal is best done with the unit laying on its back. To prevent the unit from getting dirty, lay down a clean piece of cardboard or plastic and then place the unit onto its back. Remove two (2) flat head bolts at the front of the bench. FLAT HEAD BOLT Remove two (2) socket head bolts from the rear attachment bracket as shown.
- Page 3 OVERLAPPING JOINT To reinstall the corner screen leave the unit on its back and install the panel clip into the adjacent screen (ensure the overlapping joint is facing upwards). Push the clip into the screen until a “click” is heard and verify that the clip can’t be pulled from the screen.
