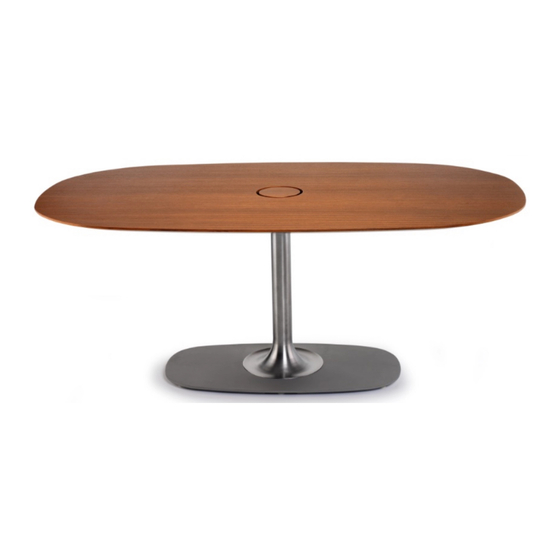

Round and oval table
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Denizen
™

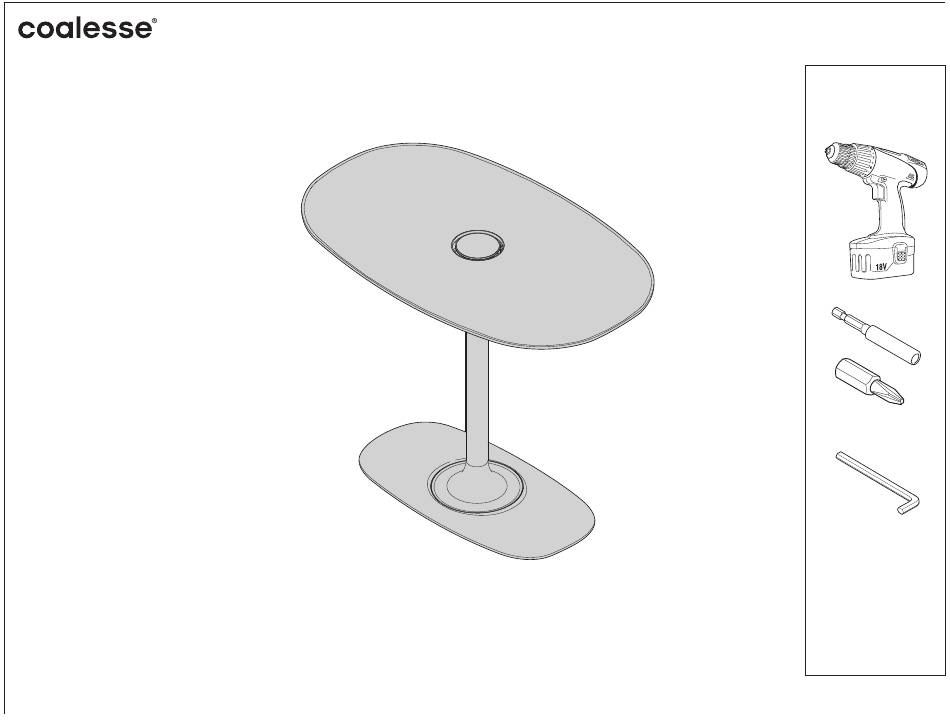

Round and Oval Table Assembly
ALLEN
WRENCH
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2016 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Page 1 of 6
Printed in U.S.A.
939500348 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Denizen and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coalesse Denizen

Summary of Contents for Coalesse Denizen

  • Page 1 Denizen ™ Round and Oval Table Assembly ALLEN WRENCH If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 Place table top (preassembled with PVD lid and liner, if your table has the PVD lid option) face down on the floor (preferably on a carpeted surface to protect from scratching). Place column/base assembly on underside of table, lining it up with pre-drilled holes.
  • Page 3 Once the four (4) screws are tightened into place, screw in the remaining eight (8). SCREW Flip the table over so that it is upright. Adjust the leveling glides by tipping the table and backing the glides out of their holes until the table is level.
  • Page 4 PVD Installation Open P V D (power/voice/data) lid by pres s ing down on the lid s o P V D MOUNT ING that it pops open (touch latch). B R A C K E T Take P V D mounting bracket and pas s it through the hole in the center of the table.
  • Page 5 Remove insert in PVD liner by pressing down on the edges closest to the PVD mounting bracket (5a) and twisting clockwise (5b) until tabs come out the slot to the side (5a). Push insert to the side of the PVD liner. Take PVD unit and snap it into the mounting bracket (6a).
  • Page 6 Once the PVD units are in place, move the insert in the PVD liner back into position so that the tabs are in the slots. Press down on the insert near the tabs (8a) and rotate it counter-clockwise (8b) so that they snap into the detents on the side.
