ENDA EPV741 Quick Start Manual

Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.

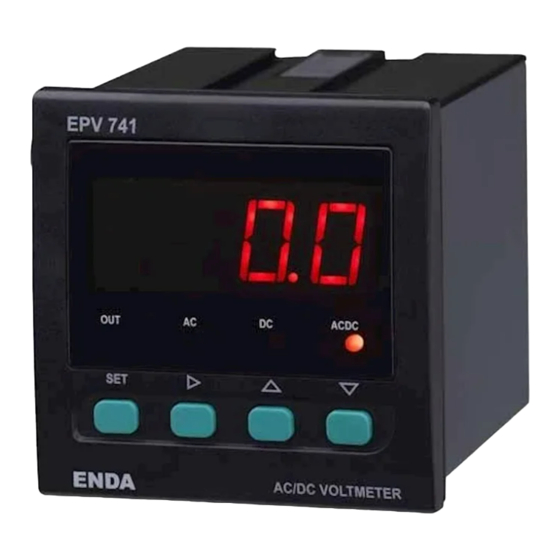

ENDA EPV741 AC/DC VOLTMETER
Thank you for choosing ENDA EPV741 AC/DC voltmeter.
* 77 x 72mm sized.
* 3 digits display.
* Values between -100V and 100V can be indicated with one
decimal number.
* Easy to use by front panel keypad.
* Multifunctional alarm output (NO+NC) for upper and lower
limits.
* Having CE mark according to Europan Norms.
Supply Voltage
230V AC +%10 -%20
24V AC %10 ±
Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient/stroge temperature
Max. Relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Scale
Sensitivity
Accuracy
Input Range
Input Impedance
Frequency Range
EMC
Safety requirements
OUTPUTS
Alarm output
Life expectancy for relay
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
Output Order Code
Relay
EPV741-R
-
EPV741
Relay EPV741-24-R
-
EPV741-24
0 ... +50°C/-25 ... 70°C
%80 up to 31°C decreasing linearly %50 at 40°C.
According to EN 60529
Max. 2000m
230V AC +%10 -%20, 50/60Hz or 24V AC
Max. 7VA
2.5mm² screw-terminal connections
0V...500V
AC and RMS
-
DC 500V...500V
0,1V (for input values between -100V and 100V)
1V (for input values that lower than -100V and higher than 100V)
±
AC %1
± %1
DC
±
RMS %1
-500V...500V , max. 800Vpeak , (Device damages 1250V peak and more voltage.)
870kÙ
DC , 10Hz - 200Hz (For square wave form 10Hz-70Hz)
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard.)
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
Relay: 250V AC, 8A (for resistive load), NO+NC
Mechanical 30.000.000 ; Electrical 100.000 operation.
Suitable for flush-panel mounting.
W72xH72xD97mm
EPV741 Approx. 350g (after packing)
EPV741-24 Approx. 350g (after packing)
Self extinguishing plastics.
34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Fax : +90 216 365 74 01
Front panel : IP60 ,
± %10 , 50/60Hz
(Full scale) (For square wave form
(Full scale)
(Full scale) (For square wave form
(According to DIN 43 700)
1/3
EPV 741
OUT AC
SET
ENDA
Rare panel : Ip20
.
± %2)
± %2)
DC ACDC
AC/DC VOLTMETER
EPV741-E-01
