EzCAP ezcap280H Quick Start Manual

HD Video Capture
Quick Start Guide
Thanks for purchasing ezcap280H HD Video Capture. The following guides you how to set up the
device. Hope this device will bring you nice digital experience.
With this ezcap280H HD Video Capture, you can capture 1080P video from HDMI port, such as blue
ray, set-top-box, computer, game box, etc.

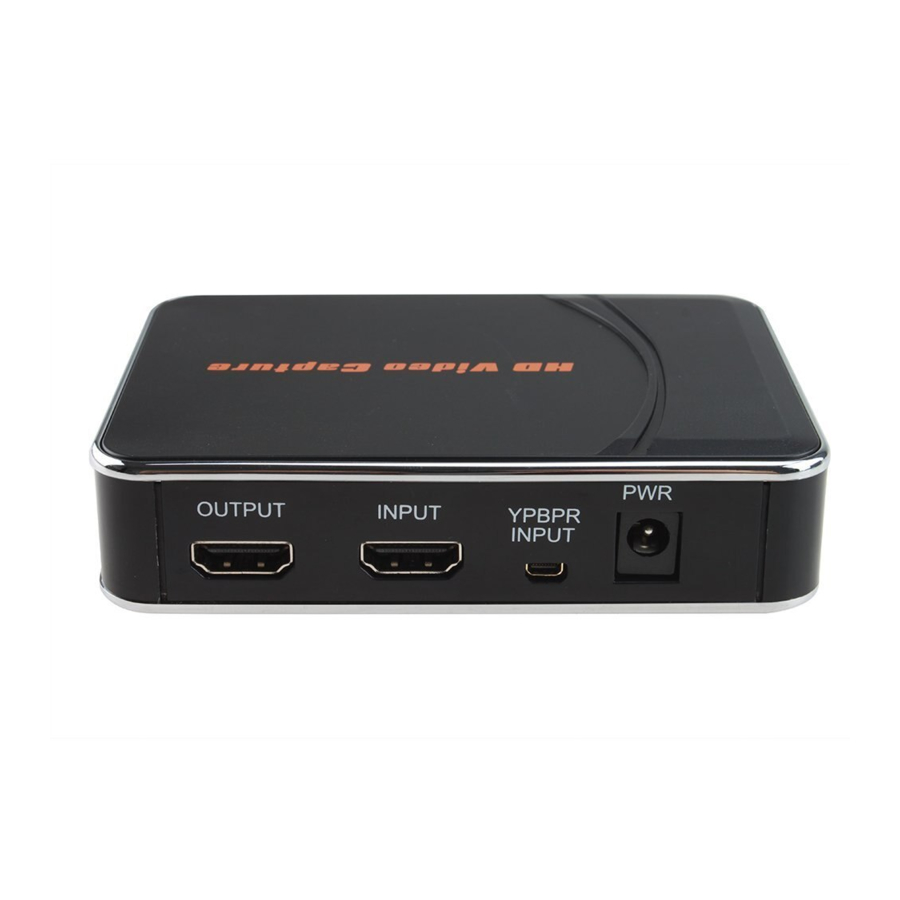

Features/ports and buttons:
1. OUTPUT—HDMI output, pass through display
HDMI.
2. INPUT—HDMI input.
3. PWR—DC 5V power supply.
4. USB HOST—For plug USB flash drive or USB
HDD for saving record files.
5. LED indicator—Color be green when standby, be
red when recording.
6. REC button—Press to record/stop.
7. MIC –Connect a microphone and record voice
comments when play game.
How to play:
1, Connect power with DC adaptor
2, Use HDMI cable connect Xbox or other source.
3, With HDMI cable connect to monitor
4, Plug an USB disk on.
5, Plug a microphone if you need record your voice.
6, Press the REC button to capture the playing
video, you will see the LED indicator turn red from
green. Press REC button again to stop capturing,
will see LED indicator flash few seconds then turn
green.
Most important:
Use "safety remove"
option to remove your USB flash or HDD after
