Echo Auxiliary Control
Quick Reference Guide
The Echo Auxiliary Control is a companion to the Savant Echo wireless dimmers, and switches. The Auxiliary Control is wired in
such a way that allows for control of one load from multiple locations such as in a 3-way configuration. Multiple Auxiliary Controls
can be wired to one Savant Echo dimmer or switch.
The Auxiliary Control cannot be connected to a wireless network. All control signals from the Auxiliary Control are sent over a
traveler wire back to a Savant Echo style dimmer or switch. The Echo device then outputs the appropriate voltage to the load.
Product
Echo Auxiliary Control (WP3-xx0002-00)
Box Contents
(1) Auxiliary Control without faceplate
(2) Mounting Screws
(3) Wire Nuts
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature
32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity
Humidity
(non-condensing)
Location
Indoor Use Only
Pollution
Degree 2
Dimensions
Height
4.13in (10.50cm) Shipping 7.0in (17.78cm)
Width
2.36in (6.00cm) Shipping 4.5in (11.43cm)
Depth
1.57in (3.99cm) Shipping 3.0in (7.62cm)
Weight
Shipping 0.60lb (0.272kg)
Recommended Back Box Depth
All Echo switches require a standard U.S. electrical back box.
– Recommended - 3.5 in (8.89 cm) deep
– Minimum 2.25 in (5.72 cm) deep
– Type 1 enclosure for control
Mounting
Independently mounted (vertical position only)
Installation
Operating
Type 1 action
Control
Power
Input
120V AC, 60Hz on Neutral wire (White)
Rated impulse
2500V
voltage
Regulatory
FCC Part 15 | UL
Safety and
For more details, see the Regulatory and
Emissions
Safety insert.
RoHS
Compliant
Minimum Supported Release
da Vinci Blueprint 9.0
Echo Auxiliary Control
009-1759-04 | 190603

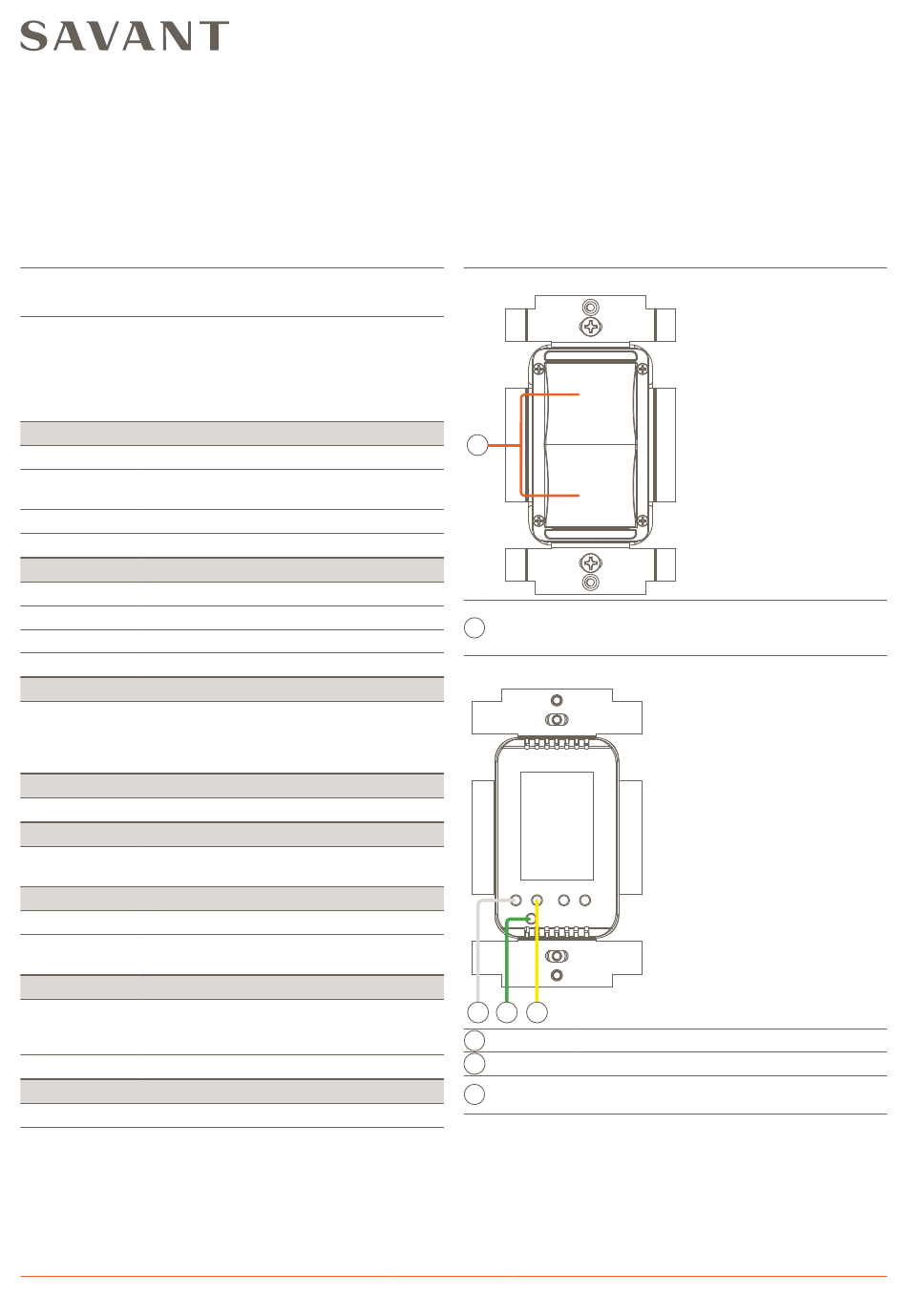

Hardware Overview
Front Panel
A
Pressing the main toggle button up or down will send data
A
over the traveler wire (yellow) to the master Echo dimmer
or switch.
Rear Panel
A
B
C
A
White
Neutral - Return path for voltage.
B
Green
Ground - Wire to Gnd.
Traveler - Wire to one or more Auxiliary
C
Yellow
Controls for multi-location control.
Device wires are all a five inch #16 AWG stranded wire.
1
of
3
Copyright © 2019 Savant Systems, LLC
