INSTRUCTION MANUAL

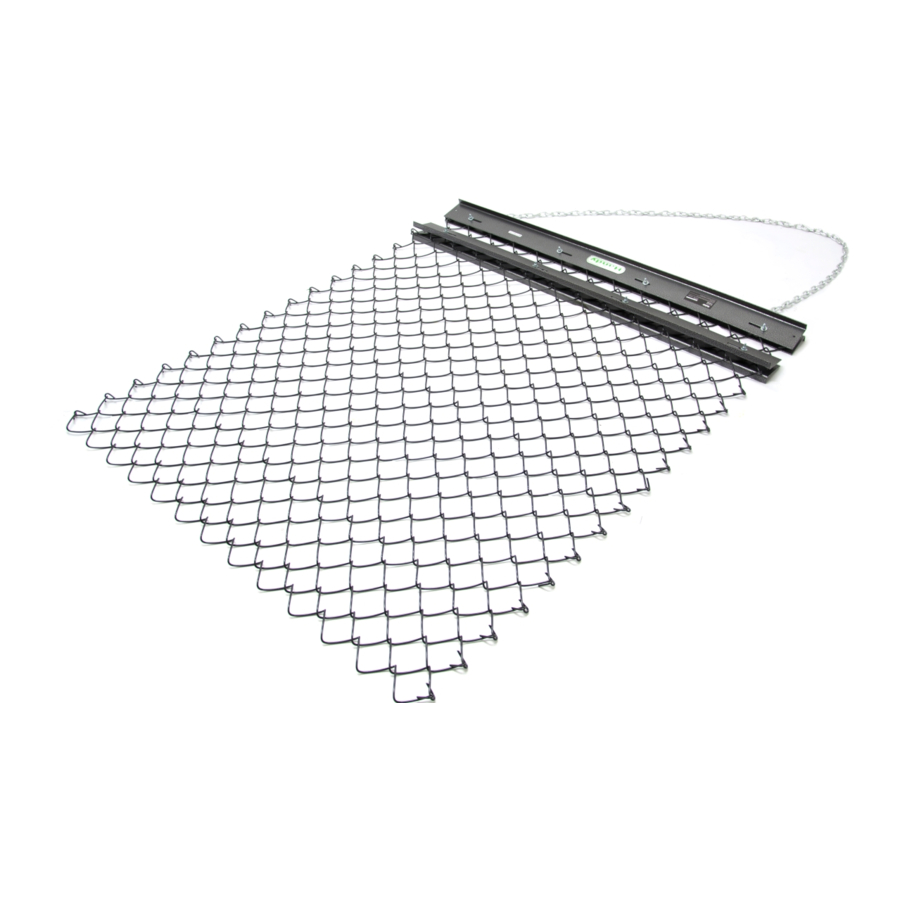

TOWED DRAG MAT
Model No: THDM -- Product No: 193846001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying attention to the safety instructions, before use.
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Images used are for illustration purposes only.
02/02/2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for The Handy THDM
Summary of Contents for The Handy THDM
- Page 1 INSTRUCTION MANUAL TOWED DRAG MAT Model No: THDM -- Product No: 193846001 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying attention to the safety instructions, before use. The manufacturer reserves the right to change the product specification and livery according to continued product improvements.
- Page 2 02/02/2017...
-
Page 3: Table Of Contents
(MON – FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS) EMAIL: customerservice@handydistribution.co.uk SPECIFICATION The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model THDM Product Number 193846001 Matt Dimensions (mm) (L)1525 x (W)1220 Weight... -
Page 4: Important Information
IMPORTANT INFORMATION INTENDED USE The device is intended for to level or smooth dirt or gravel. This product is not intended for commercial use. Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed. Only perform work described in these instructions for use. Any other use is incorrect. The manufacturer will not assume responsibility for damage resulting from such use. - Page 5 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times. Use common sense. AVOID DANGEROUS CONDITIONS Make sure there is adequate surrounding workspace.
-
Page 6: Assembly
ASSEMBLY • Lay the harrow onto the ground and stretch out flat. • The rounded heads of the carriage bolts (7) should be facing upwards. • Check all the fasteners to ensure that they are tight. • Fasten the quick link (1) onto the chain (2) at any desired position to pull the harrow straight or at angles. -
Page 7: Operation
OPERATION WARNING Before using the Drag Mat, review the below instructions & safety information within the manual. Failure to follow these instructions may result in property damage or injury to the operator or bystanders. • ALWAYS the Drag Mat prior to each use for faulty or damaged components. •... -
Page 8: Maintenance & Storage
MAINTENANCE & STORAGE WARNING Improper maintenance & storage of the Drag Mat may void your warranty. MAINTENANCE • After each use clean any material out of the Drag Mat. • Rinse/dry the Drag Mat after each use. • Periodically check all nuts & bolts for tightness. IMPORTANT: Only use the manufacturer’s original replacement parts. -
Page 9: Parts Diagram & List
PARTS DIAGRAM & LIST Part No. Description TH182-1 QUICK LINK TH182-2 6 ‘ CHAIN TH182-3 3/16’’ CHAIN CONNECTOR TH182-4 HARROW PLATE TH182-5 M6 NYLOCK NUT TH182-6 FLAT WASHER TH182-7 M6 X 35 CARRIAGE BOLT TH182-8 4’ X 5’ X 9-GA. LINK FENCE 02/02/2017... - Page 10 GJ HANDY & CO LTD USER WARRANTY POLICY Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 11 GJ HANDY & CO LTD USER WARRANTY POLICY Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
-
Page 12: Tel: 01793 333212
For spares or support of your handy product, please contact us: Tel: 01793 333212 (Mon – Fri 8.00am to 5.30pm excl. Bank Holidays) Email: customerservice@handydistribution.co.uk To see our range of garden machinery & equipment visit: www.thehandy.co.uk Making gardening easier & affordable since 1938 Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
