www.thehandy.co.uk
INSTRUCTION MANUAL

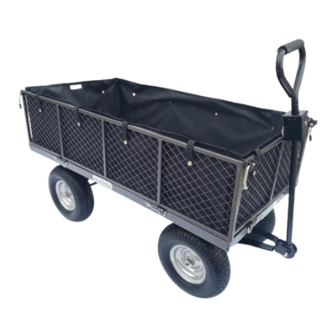

LARGE GARDEN TROLLEY
MODEL NO: THLGT -- PRODUCT NO: 193857004
EN - ORIGINAL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TWO PERSON ASSEMBLY
IMPORTANT INFORMATION
The Garden Trolley is designed for use in private gardens and primarily used around GRASS OR LAWN AREAS,
but not in public facilities, parks or sports grounds and not for agricultural or forestry use.
Never exceed the rated load capacity of 350kg (770lb).
This is a garden trolley, therefore extended use over abrasive surfaces (e.g., concrete, tarmac etc.) could cause
premature wear on the trolley tyres. Commercial or industrial environments are not recommended.
Not to be used on public highways or roads. When operating with a tractor, do not exceed 10mph.
FOR YOUR SAFETY
WARNING: PERSONS SHOULD NEVER RIDE IN THE GARDEN TROLLEY.
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, our policy
of continuous improvement determines the right to make modifications without prior warning.
Images used are for illustration purposes only.
v2 12-09-23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for The Handy THLGT
Summary of Contents for The Handy THLGT
- Page 1 INSTRUCTION MANUAL LARGE GARDEN TROLLEY MODEL NO: THLGT -- PRODUCT NO: 193857004 EN - ORIGINAL INSTRUCTIONS SAVE THESE INSTRUCTIONS TWO PERSON ASSEMBLY IMPORTANT INFORMATION The Garden Trolley is designed for use in private gardens and primarily used around GRASS OR LAWN AREAS, but not in public facilities, parks or sports grounds and not for agricultural or forestry use.
- Page 2 Copyright Notice Copyright © Handy - GJ Handy (Trading) Ltd Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from GJ Handy (Trading) Ltd.
-
Page 3: Table Of Contents
OPTIONAL REMOVEABLE LINER AVAILABLE To make your large garden trolley even more versatile, fitted easily to the sides of the trolley, ideal for transporting loose loads including sand & soil. (Part Number THLGT-LINER) VISIT WWW.THEHANDY.CO.UK FOR PRICING AND DETAILS. (THLGT-LINER – TROLLEY NOT INCLUDED) -
Page 4: Specification
Tyre Size 13 x 5.00-6 Consistent with our policy of continuous improvement, The Handy reserves the right to change the design and configuration of any of its products without notice or obligation. Therefore, please treat the text and images in this manual for illustrative purposes only. -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the product. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. IMPORTANT SAFETY WARNINGS TO REDUCE RISK OF INJURY: Before any use be sure everyone using this product reads and understands all safety instructions and other information contained in this manual. - Page 6 MAINTAIN YOUR MACHINE WITH CARE Clean the machine immediately after use. Keep the machine clean to ensure it operates to its full and safest performance. When maintaining this machine, only the manufacturer’s original replacement parts should be used. The use of non-original manufacturer parts may invalidate your warranty. PROTECT THE ENVIRONMENT Take left over materials to an authorised collection point or follow the stipulations in the country where the machine is used.
-
Page 7: Components
COMPONENTS Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents or operation of your machine, please contact us: Tel: 01793 333212, option 2 Email: cs@thehandy.co.uk Opening Hours Weekdays: (CLOSED WEEKENDS &... -
Page 8: Assembly
ASSEMBLY CAUTION When assembling or using the trolley exercise caution at all times, unawareness may result in serious injury to the user or bystanders. • Turn the bed upside down. Have another adult assist you if necessary. • Place the rear U-frame to the underside of the bed and slot over the two fixing threads. •... - Page 9 • Place the four wheel/tyre assemblies over each of the front and rear axles. • Place the 4x Φ16 wheel washers onto the axle. • Secure with 4x Φ3mm wheel pin. Push the wheel pin through the hole within the axle and then separate the two legs to ensure they do not fall out.
-
Page 10: Maintenance
• Secure the 4x levers to the front and rear panels with the washer and nut. Do not tighten. • Attach the two sides, front & rear panels to the bed, using R-clips (two for each panel). • Lift one side panel and the front panel and secure using the lever. Continue to do this with the remaining panels and levers. -
Page 11: Storage
IMPORTANT: If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement parts that do not meet specifications may result in a safety hazard or poor operation. STORAGE • Never allow carried material to remain in the trolley for extended periods of time. For years of trouble- free service, make sure the trolley is clean and dry before storing. -
Page 12: Parts Diagram
PARTS DIAGRAM – THLGT – 193857004... - Page 13 PARTS LIST – THLGT - 193857004 ITEM HANDY PART NO. DESCRIPTION TH257-13 M14 Nut TH257-2 Large Φ16 Washer TH257-3 Φ14 Metal Washer TH257-4 M10x55 Bolt TH257-5 Φ10 Washer TH257-6 M10 Nut TH257-7 Φ14 Washer TH257-9 Φ16 Wheel Washer TH257-10 Φ3mm Wheel Pin...
-
Page 14: Warranty
Period of Warranty The Handy (Petrol & Electric only) Platinum (Petrol & Electric), Webb (excludes Dynamic, Heritage, Legacy). a) 2 years from the original date of sale to the first domestic user. - Page 15 Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident. b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the operator’s manual, or service parts replacement which would include oil, filters, tyres, belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has evidence of faulty manufacture.
- Page 16 For support of your The Handy product, please contact us: 01793 333212 cs@thehandy.co.uk For spare parts for you’re the Handy product Please email: parts@thehandy.co.uk Opening Hours Weekdays: 8:00am - 5:00pm (CLOSED WEEKENDS & BANK HOLIDAYS) To see our range of garden machinery & equipment visit: www.thehandy.co.uk...
