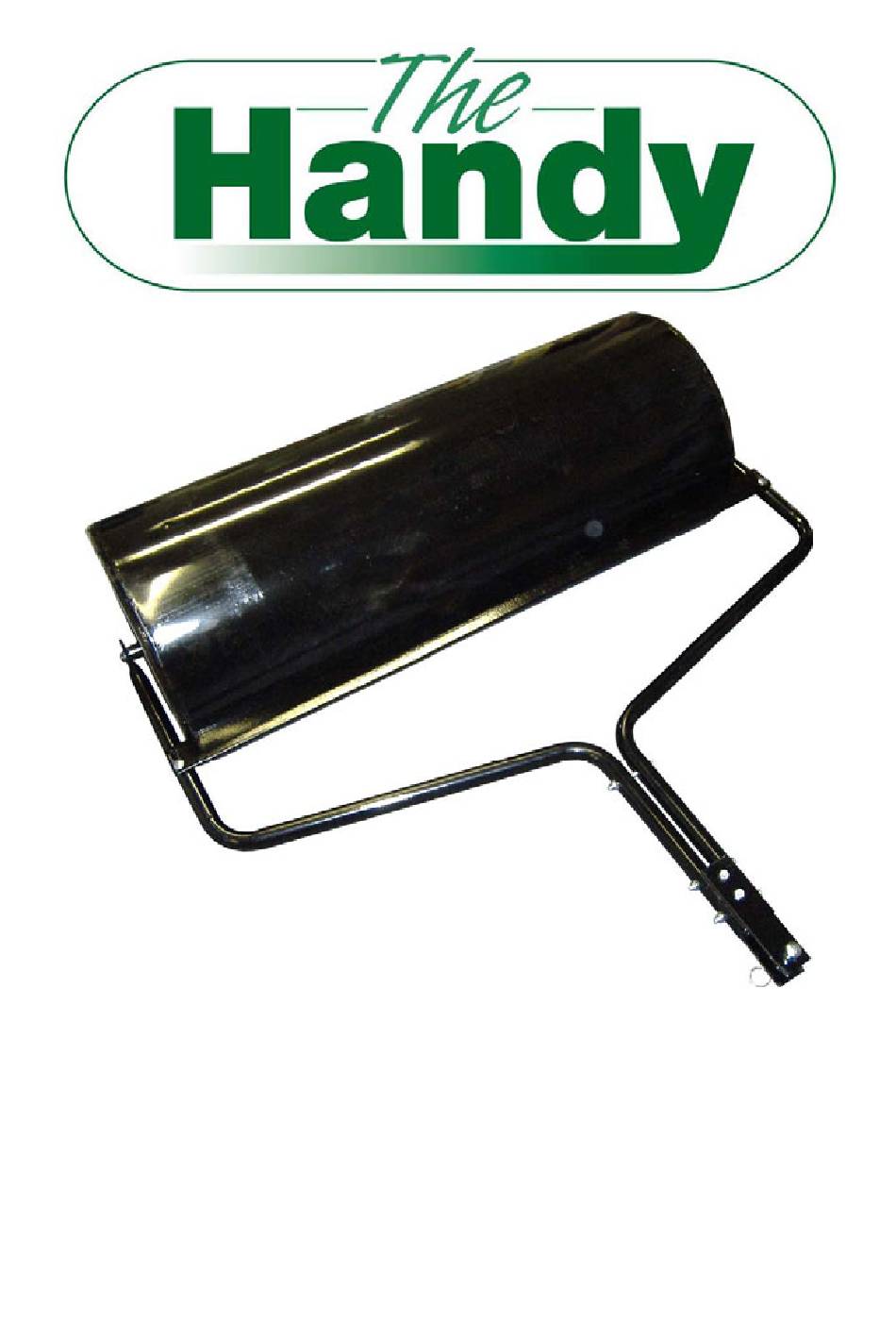

- Page 1 OPERATOR’S MANUAL AND PARTS LIST THE HANDY GARDEN ROLLER - THTGR Sales & Helpline 01793 333212 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 2010 v1...
- Page 2 No. Part No. Description TH160-1 R Pin TH160-2 Towing Bolt TH160-3 Bolt 70mm TH160-4 Coach Bolt 40mm TH160-5 Bolt 55mm TH160-6 Washer TH166-7 Split Pin TH160-8 TH160-9 Plastic Bush...
- Page 3 Assembly Instructions Insert a Plastic Bush onto the inside of the Drawbar. Place the Bush and Drawbar onto the Roller Shaft. The Bush should be between the Drawbar and the Roller Shaft, as shown. Secure with a Washer and Split Pin. Repeat for the other side.
- Page 4 Assembly Instructions Fit the Scraper to the Drawbar assembly using the 40mm Coach Bolts and Nuts. Ensure that the scraper just clears the Roller before tightening the Nuts. Tighten all Nuts and Bolts. Insert the Towing Pin and secure with the R-Clip, as shown.
- Page 6 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Sales & Helpline: 01793 333212...
