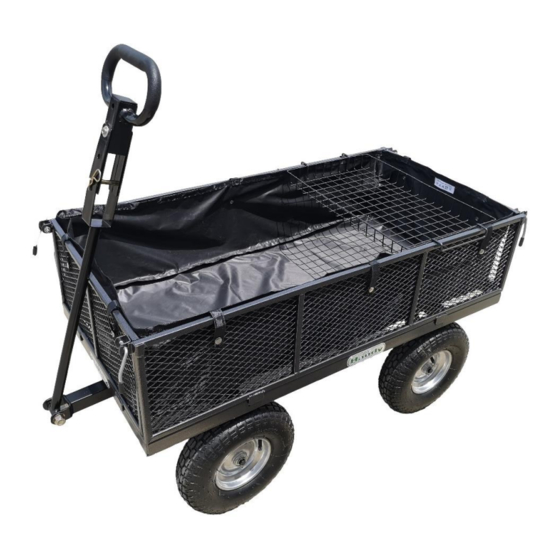

Deluxe large garden trolley with liner & tray
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
DELUXE LARGE
GARDEN TROLLEY WITH
LINER & TRAY
MODEL NO: THDLGT -- PRODUCT NO: 1938208001
EN - ORIGINAL INSTRUCTIONS
ASSEMBLY REQUIRED - MINIMUM TWO PERSONS
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
FOR YOUR SAFETY
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, our
policy of continuous improvement determines the right to make modifications without prior warning.
Images used are for illustration purposes only.
V1 30-05-2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THDLGT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for The Handy THDLGT

Summary of Contents for The Handy THDLGT

  • Page 1 INSTRUCTION MANUAL DELUXE LARGE GARDEN TROLLEY WITH LINER & TRAY MODEL NO: THDLGT -- PRODUCT NO: 1938208001 EN - ORIGINAL INSTRUCTIONS ASSEMBLY REQUIRED - MINIMUM TWO PERSONS SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 FOR YOUR SAFETY Please read & understand this manual, paying attention to the safety instructions, before use.
  • Page 2 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.

  • Page 3: Table Of Contents

    CONTENTS SPECIFICATIONS IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS COMPONENTS ASSEMBLY OPERATION MAINTENANCE STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST WARRANTY ASSEMBLY IS REQUIRED - MINIMUM TWO PERSONS This product requires assembly before use. See “Assembly” section for instructions. Because of the weight and/or size of the trolley, it is recommended that another adult be present to assist with the assembly.

  • Page 4: Specifications

    SPECIFICATIONS The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model THDLGT Product Number 1938208001 Weight N.W 30kg Rated Load Capacity 400kg Bed Dimensions (mm) L 1105 x W 555 x H 260mm...

  • Page 5: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product.
  • Page 6 INSPECT YOUR MACHINE Check all bolts, nuts, and screws for tightness before each use, especially those securing guards and drive mechanisms. Vibration during use, may cause these to loosen. Form a habit of checking to see that all other tools/equipment are removed from the working area before turning it on.

  • Page 7: Components

    COMPONENTS This product must be assembled correctly before use. Carefully remove the product and any accessories from the carton. Inspect the product carefully to make sure there are no breakages or damage occurred during shipping. Do not discard the packing material and carton until you have carefully inspected and satisfactorily operated the product.

  • Page 8: Φ16 Plastic Washer

    M16 Nut M14 Bolt Φ16 Plastic Washer Φ16 Wheel Washer Φ3mm Wheel Pin Φ16 Metal Washer .M10x55 Bolt M14x70 Bolt Φ14 Washer Φ10 Washer M10 Nut M14 Nut Φ14 Washer Lever...

  • Page 9: Assembly

    ASSEMBLY CAUTION When assembling or using the trolley exercise caution at all times, the plug spikes are sharp and may result in serious injury to the user or bystanders. • Turn the Bed upside down. Have another adult assist you if necessary. •...
  • Page 10 • Place the four Wheel/Tyre assemblies over each of the front and rear axles. • Place the 4x Φ16 Wheel Washers onto the axle. • Secure with 4x Φ3mm Wheel Pin. Push the Wheel Pin through the hole within the axle and then separate the two legs to ensure they do not fall out.

  • Page 11: Operation

    • Attach the Front and Rear Panels onto the Bed with the Levers on the outside of the panel. Lay horizontal. • Attach the 2x Side Panels onto the Bed. • Lift one Side Panel and the Front Panel and secure using the Lever. Continue to do this with the remaining Panels and Levers.

  • Page 12: Maintenance

    LINER The Liner sits within the bed area. To affix to the sides, front and rear panels, place the securing tabs over the top of the panel and secure with the popper buttons. TRAY The Tray sits on top of the bed, with the securing hooks seated on the two side panels. The tray can be positioned anywhere along the bed.

  • Page 13: Troubleshooting

    TROUBLESHOOTING WARNING If the product does not perform properly, makes unusual sounds, or any other irregularity or malfunction occurs, do not attempt to repair the product by yourself. Please contact customer services or your local authorised service dealer for advice. NEED ASSISTANCE For Spares or Support of your Handy product, please contact us: Tel: 01793 333212...
  • Page 14 PARTS DIAGRAM – THDLGT (1938208001) NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend you contact our Spares Team on 01793 333212 for expert advice...

  • Page 15: Tray

    PARTS LIST – THDLGT (1938208001) HANDY PART NUMBER ITEM DESCRIPTION TH257-1 M16 Nut TH257-2 Φ16 Plastic Washer TH257-3 Φ16 Metal Washer TH257-4 M10x55 Bolt TH257-5 Φ10 Washer TH257-6 M10 Nut TH257-7 Φ14 Washer TH257-8 M14 Bolt TH257-9 Φ16 Wheel Washer TH257-10 Φ3mm Wheel Pin...
  • Page 16 GJ HANDY & CO LTD USER WARRANTY POLICY Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
  • Page 17 Disclaimer a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of the merchantability or the fitness for a particular purpose. b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of GJ Handy &...
  • Page 18 NOTES...

  • Page 20: Tel: 01793 333212

    For spares or support of your handy product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk (Mon – Fri 8.00am to 5.30pm excl. Bank Holidays) To see our range of garden machinery & equipment visit: www.thehandy.co.uk Making gardening easier & affordable since 1938 Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
