Summary of Contents for The Handy THTILL6.5

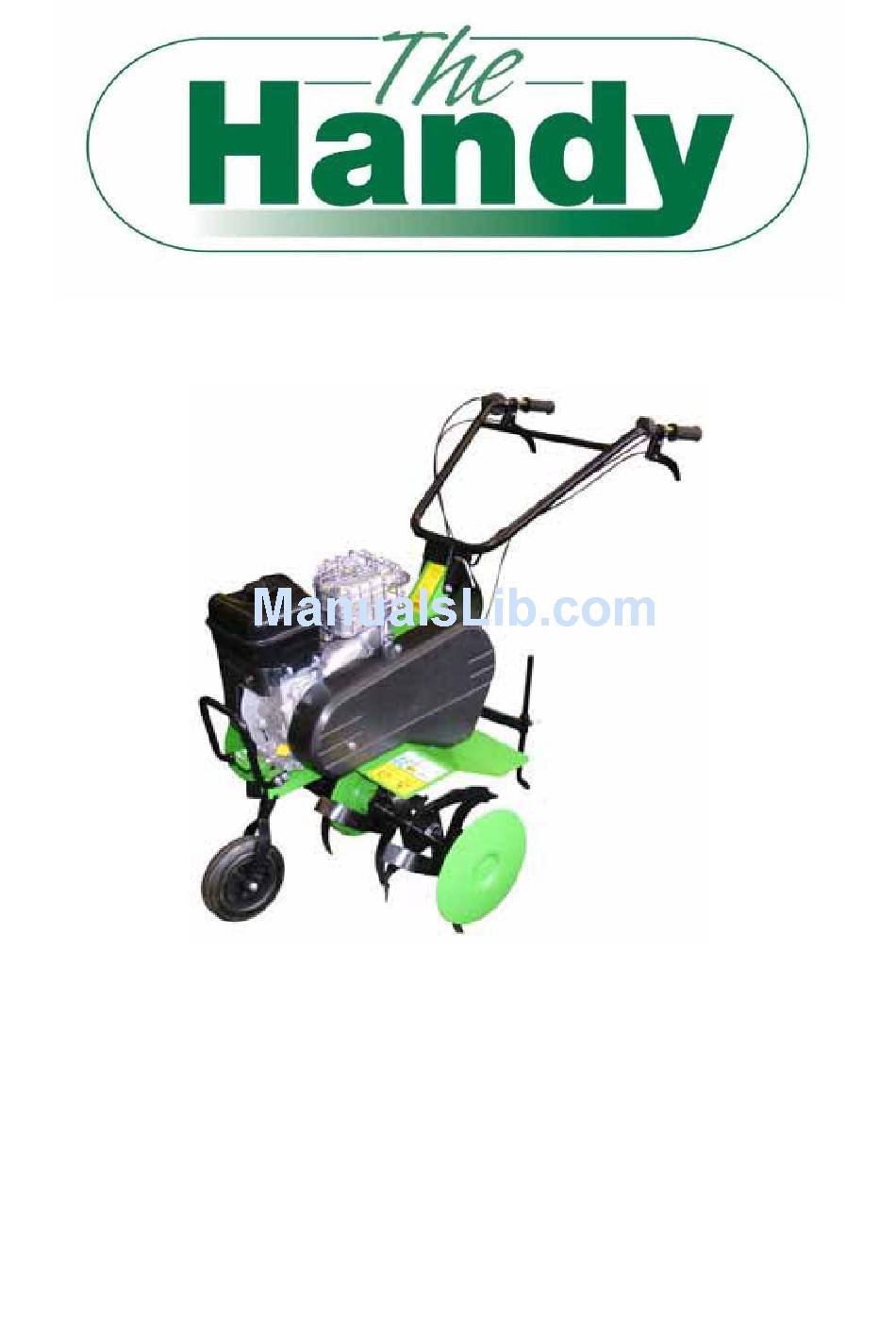

- Page 1 OPERATOR’S MANUAL AND PARTS LIST PETROL TILLER - THTILL6.5 Sales & Helpline 01793 333220 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 2010 v1 Page 1...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS MAJOR PARTS SPECIFICATION ASSEMBLY OPERATING THE TILLER MAINTENANCE PARTS DIAGRAM AND LIST EC DECLARATION OF CONFORMITY Page 2... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read and understand the owner’s manual and labels affixed to the petrol tiller. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for reference. • Check your tiller before use. Keep guards in place and in working order. You should only work with a machine that is in good condition. -
Page 4: Major Parts
13 Tine Wheel 14 Front Wheel Oil Filler Cap 16 Switch 17 Chain Box Tine 19 Recoil Starter SPECIFICATION Model No THTILL6.5 Working Width 60,70 or 75cm Tine Revolution 156 revs /min Tine Diameter 31cm Clutch Tension Belt Set Speed ratio 22.6:1... -
Page 5: Assembly
ASSEMBLY To assemble the handlebar: The handle height can be adjusted to suit the height of the operator by varying the angle where the handle adjuster fits on to the girder. • Remove the bolt and adjuster and attach the handle height adjuster over the girder. •... -
Page 6: Assembly
ASSEMBLY, cont’d To assemble the front wheel: The front wheel is used to help transport the tiller. Fix the front wheel in the down position using a lockpin. When cultivating move the wheel to the up position. Spring Groove Lockpin Front Wheel Bracket To assemble the dragbar: The dragbar can be adjusted to differing tilling depths. -
Page 7: Operating The Tiller
OPERATING THE TILLER The tiller is supplied without fuel or oil. • Fill the engine to the correct level with good quality SAE 30 engine oil. • Fill the fuel tank with unleaded petrol, being careful not to overfill and wiping up any spilt fuel with a cloth. -
Page 8: Parts Diagram And List
PARTS DIAGRAM Page 8... -
Page 9: Parts List
PARTS LIST Part No Description No Part No Description TH104-1 Front Wheel TH104-2 TH104-3 Bolt TH104-4 Spring TH104-5 Front Wheel Bracket TH104-6 TH104-7 Gear Case TH104-8 TH104-9 Tine Assembly 10 TH104-10 Crop Disc TH104-11 Drag Bar 12 TH104-12 Tension Wheel Support TH104-13 Tension Wheel 14 TH104-14... -
Page 10: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Declaration of Conformity Pursuant to the regulations of the following EC Directives: - Machinery Directive 2006/42/EC - EMC Directive 2004/108/EC Handy Distribution Ltd hereby declares that the product Machine Type: Petrol Tiller Machine Model: THTILL6.5R Engine Displacement: 206cc Engine Power: 4.8kW Engine Speed: 3600/min Cutting Width: 600 or 700mm... - Page 11 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Page 11...
