INSTRUCTION MANUAL

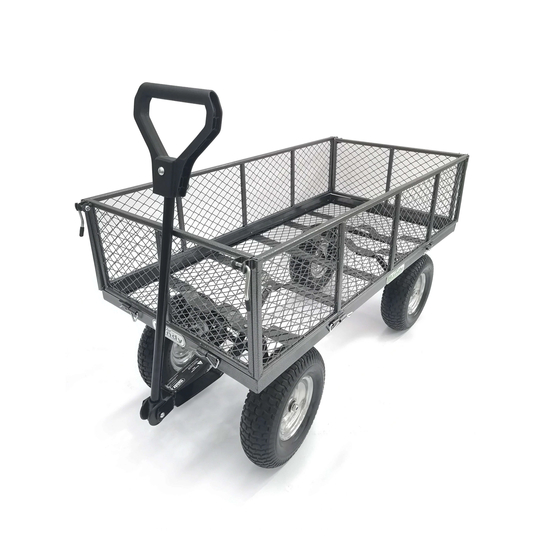

LARGE GARDEN
TROLLEY
Model No: THLGT -- Product No: 193857001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying attention to the safety instructions, before use.
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Images used are for illustration purposes only and may differ from the actual product.
03/02/2018 v4
Advertisement
Related Manuals for The Handy THLGT
Summary of Contents for The Handy THLGT
- Page 1 INSTRUCTION MANUAL LARGE GARDEN TROLLEY Model No: THLGT -- Product No: 193857001 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying attention to the safety instructions, before use. The manufacturer reserves the right to change the product specification and livery according to continued product improvements.
-
Page 2: Important Information
CONTENTS SPECIFICATION IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS SET UP & PREPARATION FOR OPERATION ASSEMBLY MAINTENANCE & STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST WARRANTY ASSEMBLY IS REQUIRED – TWO PERSON’S This product requires assembly before use. See the “Assembly” section for instructions. Because of the weight and size of the Trolley, it is recommended that a minimum of TWO adults be present to assist with the assembly. - Page 3 SPECIFICATION The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model THLGT Product No. 193857001 Load Capacity (kgs) Overall Dimensions (cm) 140(L) 64(W) 65(H) (exc. draw bar handle) Internal Bed Dimensions (cm)
-
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the product. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 5 DRESS PROPERLY Do not wear loose clothing or jewellery (rings, wrist watches), which can be caught in moving parts. CONDITIONS We recommend the machine is not used during winds. This may affect the spreading pattern. DO NOT OVERREACH Keep proper footing and balance. Never stand on the machine. Serious injury could occur if the machine is tipped or if the moving parts are unintentionally contacted.
- Page 6 SET UP & PREPARATION FOR OPERATION Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily assemble the machine. Please ensure that you have all the necessary parts, before commencing with the assembly. Parts lists are supplied towards the back of this manual.
- Page 7 Place the Right (7) and Left (8) Rear Axle Braces onto the Rear Axle Support Attach using Rear Axle Braces using four Carriage Support Bolts, Washers & Nuts (18) x4. STEP 3 Attach the Front Axle Support (9) to the Bed using 2x Carriage Support Bolts, Washers & Nuts (18).
- Page 8 STEP 4 Attach the Steering Link Connector (12) to the Front Axle Support arms, using 2x Bolts, Washers and Nuts (19). The connector should sit over the axle as pictured. STEP 5 Position the Central Front Axle Brace (10) to the Front Axle Support Fix the Central Front Axle Brace (10) to the Bed using 2x Carriage Bolt, Washer &...
- Page 9 STEP 6 Slot the stepped arm of the Yoke (11) onto the protruding leg of the Front Axle Support (9). Position the straight arm of the Centre Front Axle Brace (10) between the Yoke (11) & Front Axle Support (9). STEP 7 Fix the Yoke (11) &...
- Page 10 Fix the Steering Link Connector (12) to the Yoke (11) using Carriage Bolt, Washer & Nut (18). Slide the Large Washer (23) over the Front Axle Support (9) protruding leg and slide the Split Pin (16) through the hole. Split open the Pin legs to secure. STEP 8 •...
- Page 11 STEP 9 • Slide the Axle Sleeve (24) onto the axle. • Slide the Wheel (5) onto the axle. • Secure using a Wheel Washer (17) and a Wheel Nut (25) on to the axle. Do not over tighten; this may cause the wheel to not rotate.
-
Page 12: Troubleshooting
STEP 12 Locate the Side Lock Handles (22) through the tabs on the top right and left of the front and back Side Panels, ensuring that the threaded end faces inwards towards each other. Lift the Side Panels into position and secure the nut. Securely tighten all nuts before use. MAINTENANCE &... - Page 13 PARTS LIST & DIAGRAM NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend you contact our Spares Team on 01793 333212 for expert advice. Item No Part No. Description Quantity TH215-1-1 TH215-2-2 Side Panel TH215-3-3...
- Page 14 Item Part No Description Image Quantity TH215-A1-16 Split Pin - 3.0x50 Wheel Washer 6 TH215-B1-17 Carriage Support Bolt, TH215-C-18 Washer & Nut - M8x15mm Bolt, Washer & Nut - TH215-A4-19 M6x16mm TH215-D-20 R-Clip - 40x105 Bolt, Washer & Nut for TH215-E1-21 Lower Pull Handle - M8x60...
- Page 17 NOTES _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________...
- Page 18 NOTES _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________...
- Page 20 For spares or support of your handy product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk (Mon – Fri 8.00am to 5.30pm excl. Bank Holidays) To see our range of garden machinery & equipment visit: www.thehandy.co.uk Making gardening easier & affordable since 1938 Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
