MAINTENANCE NOTICE

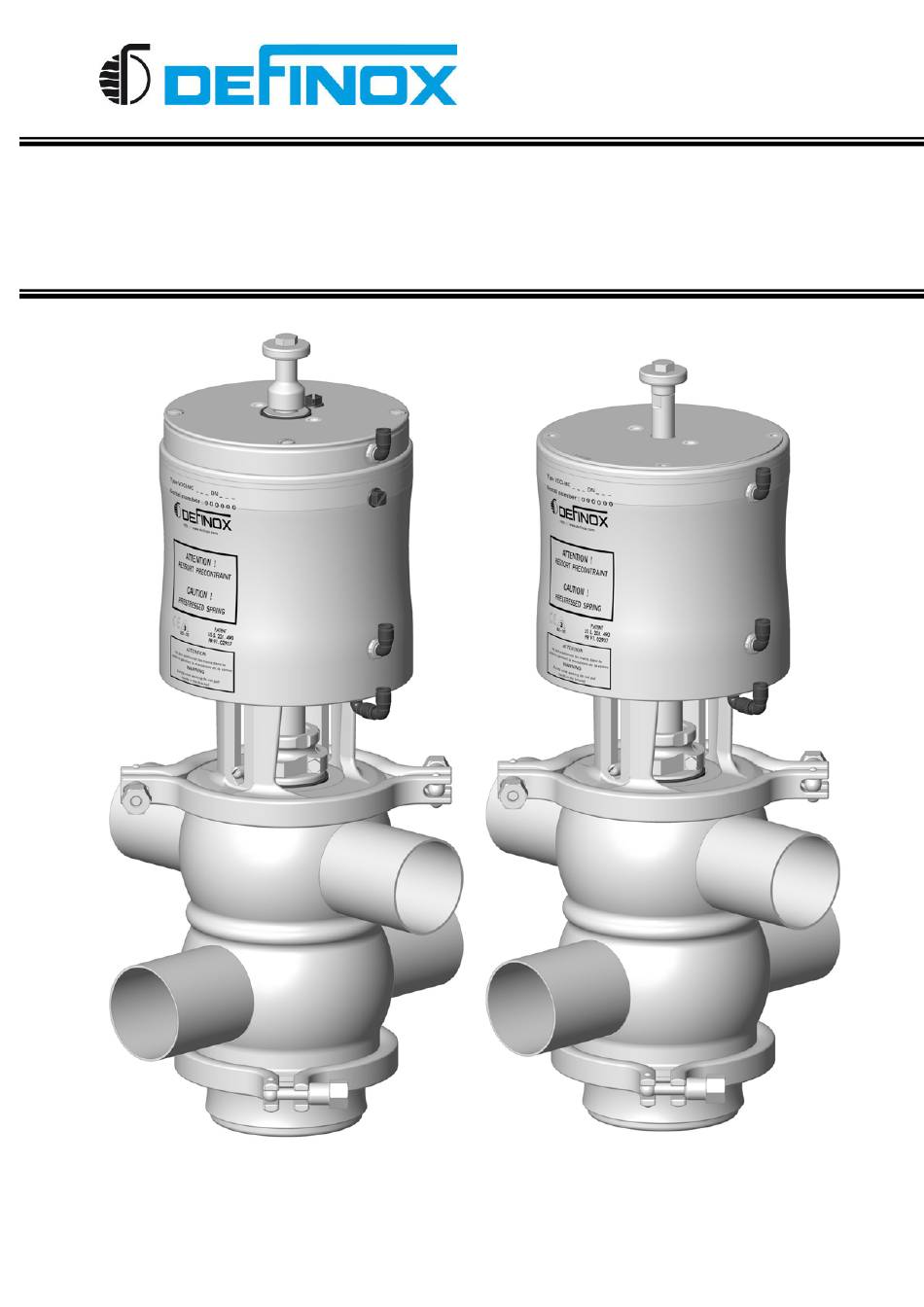

VDCI-MC MIXPROOF VALVES
PFA – SP – SP-C – PMO-C
www.definox.com
IT-TDFX-164
Number 15
Page 1/35
February 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDCI-MC PFA and is the answer not in the manual?

Questions and answers

Related Manuals for Definox VDCI-MC PFA

Summary of Contents for Definox VDCI-MC PFA

  • Page 1 MAINTENANCE NOTICE VDCI-MC MIXPROOF VALVES PFA – SP – SP-C – PMO-C www.definox.com IT-TDFX-164 Number 15 Page 1/35 February 2013...

  • Page 2: Table Of Contents

    5.1.5 REASSEMBLING THE VDCI-MC ACUATOR ASSEMBLY   6 VDCI-MC PARTS 6.1 PARTS FOR THE VDCI-MC PFA BREAKAWAY ACTUATOR SUB-ASSEMBLY: (seal kits page 30) To fit or remove [29] and [30], refer to the   maintenance notice IT-TDFX-187 for box ACS.

  • Page 3: Change Management

    MAINTENANCE NOTICE 1 CHANGE MANAGEMENT For VDCI-MC-PFA DN63-80 actuators. Use of pin 7142193(2) with cam 7142205(1) for all actuators from 01/05 to 04/05. From 05/05 use of pin 7142220(1) with cam 7142222(1). CHANGES INDEX DATE PAGE(S) INITIALS New version. May 2005 T.

  • Page 4: Safety

    MAINTENANCE NOTICE 2 SAFETY IMPORTANT INFORMATION Always read the maintenance notice before manipulating the valve Failure to observe these instructions can result in serious bodily injury or loss of life. DANGER ! This can also result in less serious injuries or damage to the equipment. CAUTION Electricity can result in serious bodily injury or loss of life.

  • Page 5: Introduction

    IMPORTANT: This operation must be performed using a special tool ensuring that the necessary precautions are taken. (IMPORTANT: stressed spring) CAUTION NOTE: After carrying out any maintenance work on DEFINOX products it is essential that you check the correct function of the equipment concerned: tightness, pressure, etc… NOTE ! IMPORTANT: In the lower section of the valve, NEVER BLOCK or RESTRICT the flow from the LEAKAGE CHAMBER.

  • Page 6: Disassembling The Valve

    MAINTENANCE NOTICE 4 DISASSEMBLING THE VALVE Before starting the disassembly procedure, if the valve is fitted with a signalling box it may be necessary to detach the signalling unit from the actuator. DISMANTLING THE SIGNALLING BOX Dismantling without disconnection IMPORTANT: Before starting any work on the box, it is important to ensure that the air supply is closed and that the circuit is purged.

  • Page 7: Body And Isolation

    MAINTENANCE NOTICE BODY AND ISOLATION • Supply air to the main pneumatic actuator to relieve the upper clamp collar of the shear force from the spring. • If a signalling box is installed on the valve, use the box’s air circuit to manoeuvre the valve into an open position.

  • Page 8: Disassembling The Vdci-Mc Pfa Breakaway Actuator: (To Change The Seals If Required)

    MAINTENANCE NOTICE DISASSEMBLING THE VDCI-MC PFA BREAKAWAY ACTUATOR: (to change the seals if required) • Disassemble the fastening screws [33] from the cover [32]. • Remove the breakaway piston [56] from the cover. • Remove the torque seals [31] [28] [35] [36].

  • Page 9: Disassembling Lower Plugs Vdci-Mc Mixproof Valves

    MAINTENANCE NOTICE DISASSEMBLING LOWER PLUGS VDCI-MC MIXPROOF VALVES • Using a plug valve wrench [A] on the lower plug side [43], [51], or [86] and the holding wrench [B] on the plates on the actuator shaft side [1], unscrew the lower plug sub- assembly of the pneumatic actuator [53].

  • Page 10: Disassembling Upper Plug Vdci-Mc Pfa Sp Sp-C And Pmo-C Mixproof Valves

    MAINTENANCE NOTICE DISASSEMBLING UPPER PLUG VDCI-MC PFA SP SP-C and PMO-C MIXPROOF VALVES • Unscrew the indexing screw [68]. • Unscrew the two fastening screws [60]. • Remove the clamp collar [61] from the lantern [11]. • Next, remove the upper plug [37] or [44].

  • Page 11: Disassembling The Main Pneumatic Actuator

    MAINTENANCE NOTICE DISASSEMBLING THE MAIN PNEUMATIC ACTUATOR • Disassemble the air pipes [16] and [17] from the upper plug supply. • Position the actuator sub-assembly [53] on the press (see diagram below). • Ensure that the course of the press is adjusted to dimensions [A] and [B]. •...

  • Page 12: Disassembling The Lantern Sub-Assembly

    MAINTENANCE NOTICE DISASSEMBLING THE LANTERN SUB-ASSEMBLY • Hold the clamp pin [10] with a drift punch [B] and the drift punch guide [C] held in a vice. • Unscrew the breakaway piston nut [7] using a plug valve wrench [A]. •...

  • Page 13: Disassembling The Shaft/Piston Sub-Assembly

    MAINTENANCE NOTICE DISASSEMBLING THE SHAFT/PISTON SUB-ASSEMBLY • Release the set screw [4] on the nut [3]. • Unscrew the main piston [5] screw [3] using a plug valve wrench [A] and the holding wrench [B]. • Release the main piston [5] screw [3] and remove the valve actuator shaft [A]. SHAFT/PISTON DISASSEMBLY TOOLS Diameter DN 38 - 150...

  • Page 14: Reassembling Vdci-Mc Mixproof Valves

    5 REASSEMBLING VDCI-MC MIXPROOF VALVES REPLACING FAULTY COMPONENTS OR SEALS ON THE PLUGS 5.1.1 REPLACING PFA SEALS ON VDCI-MC PFA PLUGS IMPORTANT: It is essential that you disassemble the lower plug before replacing the PFA seal located on the upper plug.

  • Page 15: Replacing Seals On Vdci-Mc Sp Sp-C & Pmo-C Plugs

    MAINTENANCE NOTICE 5.1.2 REPLACING SEALS ON VDCI-MC SP SP-C & PMO-C PLUGS IMPORTANT: It is essential that you disassemble the lower plug before replacing the seals located on the upper plug. CAUTION • Before replacing faulty seals (see list of seals and kits at the end of the notice) grease the seals with a suitable lubricant.
  • Page 16 MAINTENANCE NOTICE • Assembling external seals [48bis] for harsh operating conditions. 48bis IT-TDFX-164 Number 15 Page 16/35 February 2013...
  • Page 17 MAINTENANCE NOTICE • Before replacing faulty seals on the lower plug (see list of seals and kits at the end of the notice). • Grease the seal [50] (with Molykote111 type grease). • Grease (type Molokyte111) the bridge [51] or [77] on the bearing surface of the seal [49] (to aid installation of the seal).

  • Page 18: Reassembling The Vdci-Mc Shaft/Piston Assembly

    MAINTENANCE NOTICE 5.1.3 REASSEMBLING THE VDCI-MC SHAFT/PISTON ASSEMBLY • Remove the torque seals [24] [22] (if a replacement is required, see parts reference at the end of and grease the seals with grease (of the type 4025 H1 by QUINPLEX). this notice) •...

  • Page 19: Reassembling The Vdci-Mc Lantern Assembly

    MAINTENANCE NOTICE 5.1.4 REASSEMBLING THE VDCI-MC LANTERN ASSEMBLY • Remove the torque seals [24] [22] (if a replacement is required, see parts reference at the end of and grease the seals with grease (of the type 4025 H1 by QUINPLEX). this notice) •...

  • Page 20: Reassembling The Vdci-Mc Acuator Assembly

    MAINTENANCE NOTICE 5.1.5 REASSEMBLING THE VDCI-MC ACUATOR ASSEMBLY • Tighten the guides [A] and [B] on the shaft [1] (see table and diagram below). • Position the spring [26] on the body [2], reassemble the shaft/piston assembly on the spring [26], position in the spring assembly [23] and thread the lantern assembly on the guide [A] (see diagram below).

  • Page 21: Vdci-Mc Parts

    MAINTENANCE NOTICE 6 VDCI-MC PARTS PARTS FOR THE VDCI-MC PFA BREAKAWAY ACTUATOR SUB-ASSEMBLY: (seal kits page 30) To fit or remove [29] and [30], refer to the maintenance notice IT-TDFX-187 for box ACS. IT-TDFX-164 Number 15 Page 21/35 February 2013...

  • Page 22: Parts For The Vdci-Mc Actuator: (Seal Kits

    MAINTENANCE NOTICE PARTS FOR THE VDCI-MC ACTUATOR: (seal kits page 31) • Use reference 7142193* instead of 7142220* for the no. 1 shafts mounted on the PFA DN63-85 actuators marked with numbers 100 – 400. 25 24 IT-TDFX-164 Number 15 Page 22/35 February 2013...

  • Page 23: Parts For Plug Sub-Assembly Vdci-Mc Pfa: (Seal Kits

    MAINTENANCE NOTICE PARTS FOR PLUG SUB-ASSEMBLY VDCI-MC PFA: (seal kits page 30) IT-TDFX-164 Number 15 Page 23/35 February 2013...

  • Page 24: Parts For Plug Sub-Assembly Vdci-Mc Sp: (Seal Kits

    MAINTENANCE NOTICE PARTS FOR PLUG SUB-ASSEMBLY VDCI-MC SP: (seal kits page 32) • Parts same for VDCI-SP excluding lower plug [51] which is replaced by [77]. IT-TDFX-164 Number 15 Page 24/35 February 2013...

  • Page 25: Parts For Plug Sub-Assembly Vdci- Mc Pmo-C: (Seal Kits

    MAINTENANCE NOTICE PARTS FOR PLUG SUB-ASSEMBLY VDCI- MC PMO-C: (seal kits page 32-33) IT-TDFX-164 Number 15 Page 25/35 February 2013...

  • Page 26: Parts For Body Sub-Assembly Vdci Mc-Pfa And Sp Sp-C : (Seal Kits Page: 31)

    MAINTENANCE NOTICE PARTS FOR BODY SUB-ASSEMBLY VDCI MC-PFA and SP SP-C : (seal kits page: 31) IT-TDFX-164 Number 15 Page 26/35 February 2013...

  • Page 27: Parts For Dectection Option Plug Open Vdci-Mc

    MAINTENANCE NOTICE PARTS FOR DECTECTION OPTION PLUG OPEN VDCI-MC • Assembly with ACS linear sensor box. • Assembly with sealing system. IT-TDFX-164 Number 15 Page 27/35 February 2013...

  • Page 28: Table Of Parts For Vdci-Mc Pfa Sp Sp-C & Pmo-C Mixproof Valves

    MAINTENANCE NOTICE TABLE OF PARTS FOR VDCI-MC PFA SP SP-C & PMO-C MIXPROOF VALVES DN38 DN51 DN63 DN76 DN104 DN150 Additional DN40 DN50 DN70 DN80 DN125 (1’’1-2) (2’’) (2’’1-2) (3’’) (4’’) (6’’) Main air cylinder shaft 7142192 7142220 7142194 Main actuator body...
  • Page 29 MAINTENANCE NOTICE DN38 DN51 DN63 DN76 DN104 DN150 Additional DN40 DN50 DN70 DN80 DN125 (1’’1-2) (2’’) (2’’1-2) (3’’) (4’’) (6’’) 50 SP torque seal plug EPDM FDA 7006358 7006195 SP torque seal plug FKM FDM 7006312 7006096 51 SP lower plug 7148361 7148182 7148192...

  • Page 30: References Of Seal Kits For Vdci-Mc Mixproof Valves

    7148006 7148124 Lower PFA seal 7148171 7148005 7148125 6.9.2 EPDM FDA seal kits for VDCI-MC PFA plugs DN38 – 40 SMS DN63 – 76 SMS DN104 – 125 – 150 DIN Diameter DN40 – 50 DIN DN70 – 80 DIN DN4’’...

  • Page 31: Epdm Fda Seal Kits For Vdci-Mc Pfa / Sp / Sp-C / Pmo-C Bodies

    MAINTENANCE NOTICE 6.9.5 EPDM FDA seal kits for VDCI-MC PFA / SP / SP-C / PMO-C bodies DN104 – 125 – 150 DN38 – 40 SMS DN63 – 76 SMS Diameter DN40 – 50 DIN DN70 – 80 DIN DN4’’ – 6’’ US DN1"1-2 –...

  • Page 32: Epdm Fda Seal Kits For Vdci-Mc Sp / Sp-C / Pmo-C Plugs

    MAINTENANCE NOTICE 6.9.8 EPDM FDA seal kits for VDCI-MC SP / SP-C / PMO-C plugs DN38 – 40 SMS DN63 – 76 SMS DN104 – 125 – 150 DIN Diameters DN40 – 50 DIN DN70 – 80 DIN DN4’’ – 6’’ US DN1"1-2 –...

  • Page 33: Fkm Fda Seal Kits For Vdci-Mc Pmo-C Plugs

    MAINTENANCE NOTICE 6.9.11 FKM FDA seal kits for VDCI-MC PMO-C plugs DN38 – 40 SMS DN63 – 76 SMS DN104 – 125 – 150 DIN Diameter DN40 – 50 DIN DN70 – 80 DIN DN4’’ – 6’’ US DN1"1-2 – 2" US DN2’’1-2 –...

  • Page 34: List Of Toolkits For Vdci-Mc Mixproof Valves

    MAINTENANCE NOTICE 6.9.12 List of toolkits for VDCI-MC mixproof valves DN38 – 40 SMS DN63 – 76 SMS DN104 – 125 – 150 DIN Diameter DN40 – 50 DIN DN70 – 80 DIN DN4’’ – 6’’ US DN1’’1-2 – 2’’ US DN2’’1-2 –...
  • Page 35 Tel : (1) 262 797 5730 - Fax : (1) 262 797 5735 lbuckett@definox-usa.com CHINA DEFINOX Beijing Stainless Steel Equipment Ltd No 18 Anningzhuang East Road – HAIDIAN District BEIJING 100085 – CHINA Tel : (86) 10.6293.4909 - Fax : (86) 10.6293-4835 lk@definox.com.cn...
