MAINTENANCE NOTICE

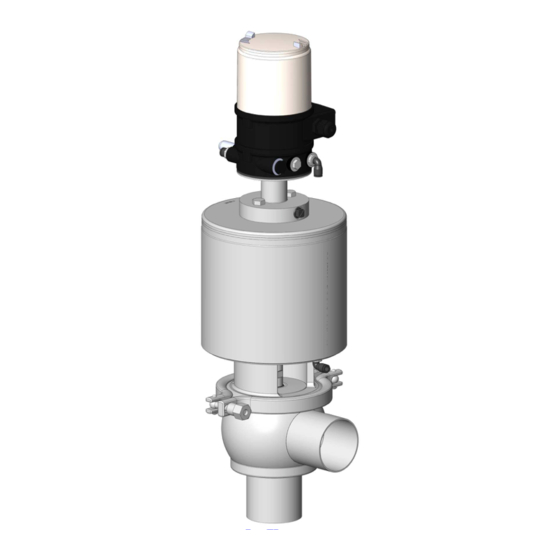

DCX3 & 4 MANUAL COMPRESSION VALVE
www.definox.com
NM-066
index 10
Page 1/26
August 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCX3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Definox DCX3

Summary of Contents for Definox DCX3

  • Page 1 MAINTENANCE NOTICE DCX3 & 4 MANUAL COMPRESSION VALVE www.definox.com NM-066 index 10 Page 1/26 August 2016...

  • Page 2: Table Of Contents

    6.4 DCX4 MANUAL VALVE WITH ELASTOMER SEAL 6.5 DCX3 MANUAL VALVE WITH METAL/METAL SEAL 6.6 LIST OF SPACE PARTS FOR MANUAL DCX3/4 DN 25 A 51 6.7 LIST OF SPACE PARTS FOR MANUAL DCX3/4 DN 63 A 104 6.8 LIST OF REFERENCES OF SEAL KITS FOR DCX3/4 MANUAL VALVES 6.9 DETAILS OF SEAL SETS FOR DCX3/4 MANUAL VALVES...

  • Page 3: Change Management

    Add ex. : grease February 2002 R. GABORIT Modif ref of o’ring Nr24 DN4’’/104 October 2002 R. GABORIT Modif ref of o’ring Nr08 DN70 & kit seal EPDM DCX3 DN80/100 June 2007 14/15 R. GABORIT Update notice October 2009 G. ANDRE...

  • Page 4: Safety

    MAINTENANCE NOTICE 2 SAFETY IMPORTANT INFORMATION Always read the maintenance notice before manipulating the valve Failure to observe these instructions can result in serious bodily injury or loss of life. DANGER ! This can also result in less serious injuries or damage to the equipment. CAUTION ! Electricity can result in serious bodily injury or loss of life.

  • Page 5: Introduction

    MAINTENANCE NOTICE manual DCX3 & 4 floating seal, elastomer seal or metal- to-metal seal. 3 INTRODUCTION The disassembly process for DCX3 or DCX4 changeover valve is divided into two distinct steps : DISASSEMBLING THE VALVE (Extracting the actuator and Plug assembly from the body...

  • Page 6: Disassembling The Valve

    • Lift the plug by unscrewing the handle in order to relieve the pressure on the clamp. • Disassemble the clamp collar, • Remove the manual actuator/shut-off unit assembly from the DCX3 body and retrieve the seal. Manual actuator +...

  • Page 7: Disassembling The Dcx4 Valve Clamp Collar

    Lift the plug by unscrewing the handle in order to relieve the pressure on the clamp. • Remove the clamp from the DCX3 body. • Remove the manual actuator/shut-off unit assembly from the DCX3 body and retrieve the seal. Manual actuator + DCX4 Upper clamp...

  • Page 8: Dcx3 Shut-Off Unit And Manual Actuator

    MAINTENANCE NOTICE DCX3 SHUT-OFF UNIT AND MANUAL ACTUATOR • Withdraw the plug as far as possible by turning the handle. • Unscrew the hex. head screw then remove the washer and handle. • Remove the drive screw completely from the lantern using a flat-head screwdriver.

  • Page 9: Dcx4 Shut-Off Unit And Manual Actuator

    MAINTENANCE NOTICE DCX4 SHUT-OFF UNIT AND MANUAL ACTUATOR • Withdraw the plug as far as possible by turning the handle. • Remove the clamp from the DCX4 body. • Unscrew the hex. head screw then remove the washer and handle. •...

  • Page 10: Changing The Seals And Refitting

    Our valve components are listed and identified in our folder and CD-ROM under “Spare Parts Catalogue”. Here you will find the information required to order your spare parts. REFITTING THE DCX3 OR 4 VALVE This procedure is performed in the reverse order to dismantling. However, it is necessary to take into account the following information : •...

  • Page 11: Replacing Pfa Seals

    MAINTENANCE NOTICE REPLACING PFA SEALS To change PFA seals, follow the guidelines given below: • Remove the defective seal using a cutter taking care not to mark the bearing surface of the plug (protect the stainless steel surface using the edge of a steel rule or a plastic off-cut), •...

  • Page 12: Parts

    MAINTENANCE NOTICE 6 PARTS DCX3 MANUAL STANDARD PFA VALVE A1, A2 Seal kit family (complete): B1, B2 Seal kit family (Without PFA seal): (According to material grade) NM-066 index 10 Page 12/26 August 2016...

  • Page 13: Dcx4 Manual Standard Pfa Valve

    MAINTENANCE NOTICE DCX4 MANUAL STANDARD PFA VALVE C1, C2 Seal kit family (complete): D1, D2 Seal kit family (Without PFA seal): (According to material grade) NM-066 index 10 Page 13/26 August 2016...

  • Page 14: Dcx3 Manual Valve With Elastomer Seal

    MAINTENANCE NOTICE DCX3 MANUAL VALVE WITH ELASTOMER SEAL E1, E2 Seal kit family : (According to material grade) NM-066 index 10 Page 14/26 August 2016...

  • Page 15: Dcx4 Manual Valve With Elastomer Seal

    MAINTENANCE NOTICE DCX4 MANUAL VALVE WITH ELASTOMER SEAL F1, F2 Seal kit family : (According to material grade) NM-066 index 10 Page 15/26 August 2016...

  • Page 16: Dcx3 Manual Valve With Metal/Metal Seal

    MAINTENANCE NOTICE DCX3 MANUAL VALVE WITH METAL/METAL SEAL B1, B2 Seal kit family : (According to material grade) NM-066 index 10 Page 16/26 August 2016...
  • Page 17 MAINTENANCE NOTICE LIST OF SPACE PARTS FOR MANUAL DCX3/4 DN 25 A 51 DN25 DN1’’ DN25 DN32 DN38 DN1’’1/2 DN40 DN2’’ DN51 DN50 Description DCX3 valve body Depending on body configuration DCX3 standard seat valve plug 7005634 7005580 7005509 DCX4 standard seat valve plug...

  • Page 18: List Of Space Parts For Manual Dcx3/4 Dn 63 A 104

    MAINTENANCE NOTICE LIST OF SPACE PARTS FOR MANUAL DCX3/4 DN 63 A 104 DN2’’1/2 DN63 DN65 DN3’’ DN76 DN80 DN104 Description DN4’’ US DCX3 valve body Depending on body configuration DCX3 standard seat valve plug 7005651 7005667 7005601 7005560 7005528...

  • Page 19: List Of References Of Seal Kits For Dcx3/4 Manual Valves

    MAINTENANCE NOTICE LIST OF REFERENCES OF SEAL KITS FOR DCX3/4 MANUAL VALVES DESCRIPTION 25-40 50-51 63-76 100-104 seal kit for DCX3 standard valve PFA/EPDM FDA 7080500 7080501 7080502 7080503 7080504 (Complete) PFA/FKM FDA seal kit for DCX3 standard valve (Complete)

  • Page 20: Details Of Seal Sets For Dcx3/4 Manual Valves

    MAINTENANCE NOTICE DETAILS OF SEAL SETS FOR DCX3/4 MANUAL VALVES valve seal kits for (Complete): PFA/EPDM FDA DCX3 standard valves DN25-38 SMS DN51 SMS DN63-76 SMS Diameter DN25-40 DIN DN50 DIN DN65 DIN DN80 DIN DN104 DIN DN1’’-1’’1-2 US DN2’’ US DN3’’...
  • Page 21 MAINTENANCE NOTICE valve seal kits for (Without seal): EPDM FDA DCX3 standard valves DN25-38 SMS DN51 SMS DN63-76 SMS Diameter DN25-40 DIN DN50 DIN DN65 DIN DN80 DIN DN104 DIN DN1’’-1’’1-2 US DN2’’ US DN3’’ US DN4’’ US Kit No.
  • Page 22 7080543 7080544 7080545 7080546 Guide Description Seal reference Seal support plate O-ring 7380158 7380159 7006164 7006183 EPDM FDA DCX3/4 plug seal 7005138 7005147 7005156 7140038 7005291 Seal support plate O-ring 7380137 7380179 7006160 EPDM FDA Seal support plate ring. 7009993...
  • Page 23 MAINTENANCE NOTICE valve seal kits for valves (Without seal): EPDM FDA DCX4 standard DN25-38 SMS DN51 SMS DN63-76 SMS Diameter DN25-40 DIN DN50 DIN DN65 DIN DN80 DIN DN104 DIN DN1’’-1’’1-2 US DN2’’ US DN3’’ US DN4’’ US Kit No. 7080557 7080558 7080559...
  • Page 24 7380158 7380159 7006164 7006183 Seal support plate O-ring EPDM FDA 7006174 7380158 7006193 7380101 7006162 DCX3/4 plug O-ring EPDM FDA 7380137 7380179 7006160 Seal support plate O-ring EPDM FDA Seal support plate ring. 7009993 7009972 7009973 valve seal kits for...
  • Page 25 7380158 7380159 7006164 7006183 Joint torique de P.P.J. EPDM FDA 7006174 7380158 7006193 7380101 7006162 Joint torique clapet DCX3/4 EPDM FDA 7380137 7380179 7006160 Joint torique de P.P.J. EPDM FDA Segment de P.P.J. 7009993 7009972 7009973 valve seal kits for...
