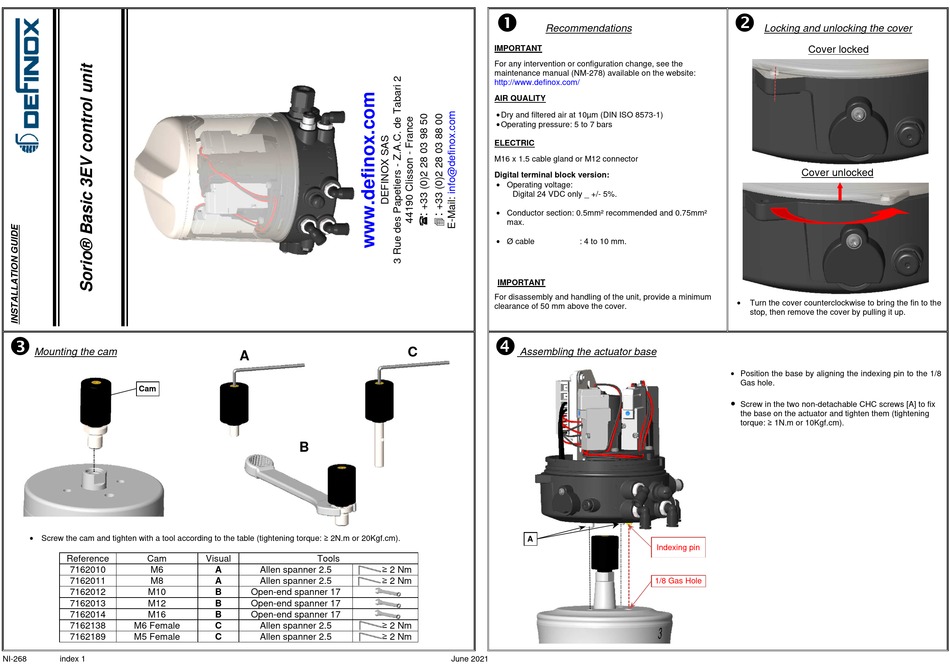

Mounting the cam

Cam
• Screw the cam and tighten with a tool according to the table (tightening torque: ≥ 2N.m or 20Kgf.cm).
Reference
Cam
7162010
M6
7162011
M8
7162012
M10
7162013
M12
7162014
M16
7162138
M6 Female
7162189
M5 Female
NI-268
index 1
A
B
Visual
Tools
Allen spanner 2.5
≥ 2 Nm
A
A
Allen spanner 2.5
≥ 2 Nm
B
Open-end spanner 17
B
Open-end spanner 17
B
Open-end spanner 17
C
Allen spanner 2.5
≥ 2 Nm
Allen spanner 2.5
≥ 2 Nm
C

Recommendations

IMPORTANT
For any intervention or configuration change, see the
maintenance manual (NM-278) available on the website:
http://www.definox.com/
AIR QUALITY
• Dry and filtered air at 10µm (DIN ISO 8573-1)
• Operating pressure: 5 to 7 bars
ELECTRIC
M16 x 1.5 cable gland or M12 connector
Digital terminal block version:
• Operating voltage:
Digital 24 VDC only _ +/- 5%.
• Conductor section: 0.5mm² recommended and 0.75mm²
max.
• Ø cable
: 4 to 10 mm.
IMPORTANT
For disassembly and handling of the unit, provide a minimum
clearance of 50 mm above the cover.
C

Assembling the actuator base

A
June 2021

Locking and unlocking the cover

Cover locked
Cover unlocked
Turn the cover counterclockwise to bring the fin to the
stop, then remove the cover by pulling it up.
• Position the base by aligning the indexing pin to the 1/8
Gas hole.
Screw in the two non-detachable CHC screws [A] to fix
the base on the actuator and tighten them (tightening
torque: ≥ 1N.m or 10Kgf.cm).
Indexing pin
1/8 Gas Hole
