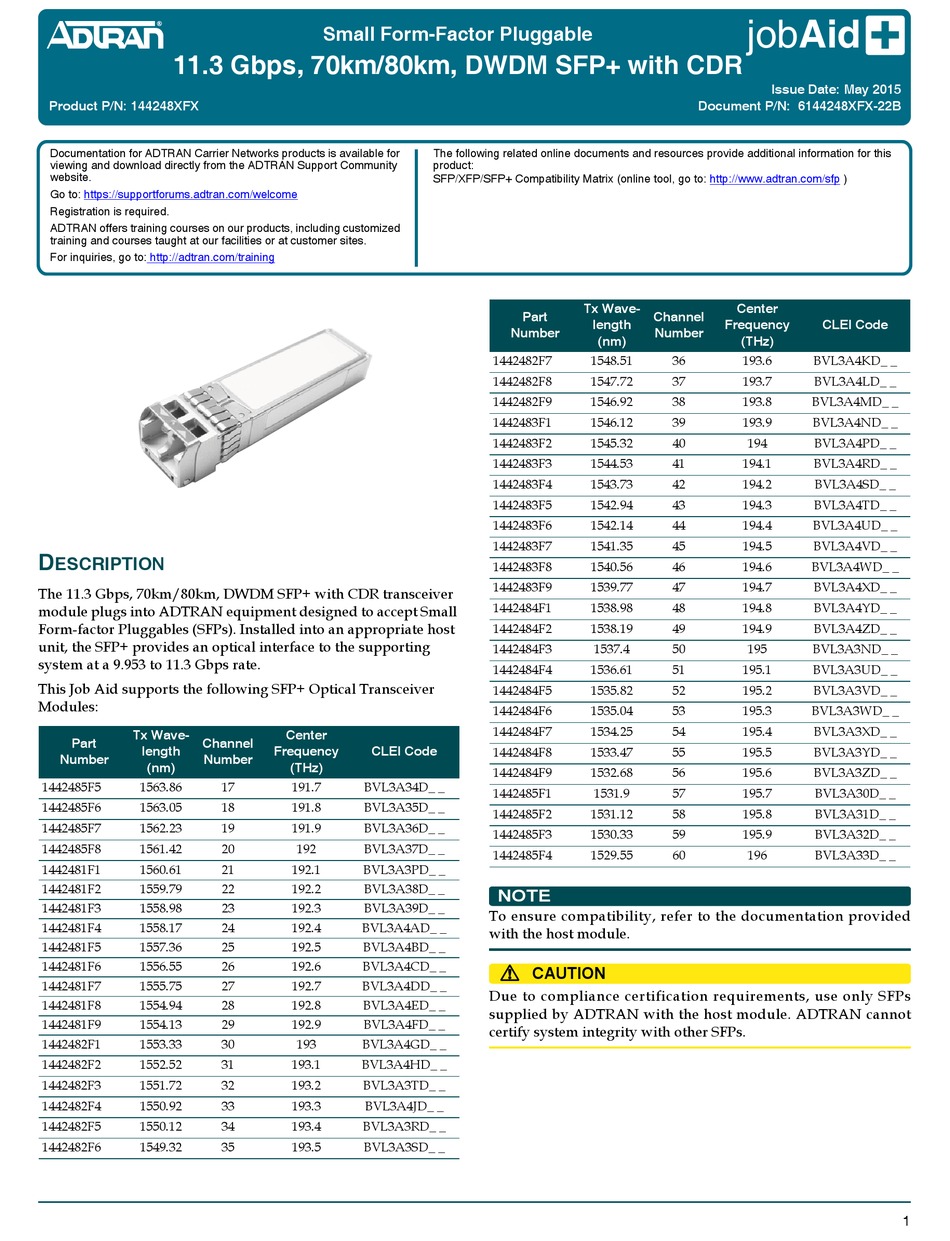

ADTRAN 1442482F7 Manual

11.3 Gbps, 70km/80km, DWDM SFP+ with CDR
Product P/N: 144248XFX
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The 11.3 Gbps, 70km/80km, DWDM SFP+ with CDR transceiver
module plugs into ADTRAN equipment designed to accept Small
Form-factor Pluggables (SFPs). Installed into an appropriate host
unit, the SFP+ provides an optical interface to the supporting
system at a 9.953 to 11.3 Gbps rate.
This Job Aid supports the following SFP+ Optical Transceiver
Modules:
Tx Wave-
Part Channel
length
Number Number
(nm)
1442485F5 1563.86
1442485F6 1563.05
1442485F7 1562.23
1442485F8 1561.42
1442481F1 1560.61
1442481F2 1559.79
1442481F3 1558.98
1442481F4 1558.17
1442481F5 1557.36
1442481F6 1556.55
1442481F7 1555.75
1442481F8 1554.94
1442481F9 1554.13
1442482F1 1553.33
1442482F2 1552.52
1442482F3 1551.72
1442482F4 1550.92
1442482F5 1550.12
1442482F6 1549.32
Small Form-Factor Pluggable
Center
Frequency CLEI Code
(THz)
17 191.7 BVL3A34D_ _
18 191.8 BVL3A35D_ _
19 191.9 BVL3A36D_ _
20 192 BVL3A37D_ _
21 192.1 BVL3A3PD_ _
22 192.2 BVL3A38D_ _
23 192.3 BVL3A39D_ _
24 192.4 BVL3A4AD_ _
25 192.5 BVL3A4BD_ _
26 192.6 BVL3A4CD_ _
27 192.7 BVL3A4DD_ _
28 192.8 BVL3A4ED_ _
29 192.9 BVL3A4FD_ _
30 193 BVL3A4GD_ _
31 193.1 BVL3A4HD_ _
32 193.2 BVL3A3TD_ _
33 193.3 BVL3A4JD_ _
34 193.4 BVL3A3RD_ _
35 193.5 BVL3A3SD_ _
The following related online documents and resources provide additional information for this
product:
SFP/XFP/SFP+ Compatibility Matrix (online tool, go to:
Tx Wave-
Part
length
Number
(nm)
1442482F7 1548.51
1442482F8 1547.72
1442482F9 1546.92
1442483F1 1546.12
1442483F2 1545.32
1442483F3 1544.53
1442483F4 1543.73
1442483F5 1542.94
1442483F6 1542.14
1442483F7 1541.35
1442483F8 1540.56
1442483F9 1539.77
1442484F1 1538.98
1442484F2 1538.19
1442484F3 1537.4
1442484F4 1536.61
1442484F5 1535.82
1442484F6 1535.04
1442484F7 1534.25
1442484F8 1533.47
1442484F9 1532.68
1442485F1 1531.9
1442485F2 1531.12
1442485F3 1530.33
1442485F4 1529.55
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
!
CAUTION
Due to compliance certification requirements, use only SFPs
supplied by ADTRAN with the host module. ADTRAN cannot
certify system integrity with other SFPs.
jobAid
Issue Date: May 2015
Document P/N: 6144248XFX-22B
http://www.adtran.com/sfp
Center
Channel
Frequency CLEI Code
Number
(THz)
36 193.6 BVL3A4KD_ _
37 193.7 BVL3A4LD_ _
38 193.8 BVL3A4MD_ _
39 193.9 BVL3A4ND_ _
40 194 BVL3A4PD_ _
41 194.1 BVL3A4RD_ _
42 194.2 BVL3A4SD_ _
43 194.3 BVL3A4TD_ _
44 194.4 BVL3A4UD_ _
45 194.5 BVL3A4VD_ _
46 194.6 BVL3A4WD_ _
47 194.7 BVL3A4XD_ _
48 194.8 BVL3A4YD_ _
49 194.9 BVL3A4ZD_ _
50 195 BVL3A3ND_ _
51 195.1 BVL3A3UD_ _
52 195.2 BVL3A3VD_ _
53 195.3 BVL3A3WD_ _
54 195.4 BVL3A3XD_ _
55 195.5 BVL3A3YD_ _
56 195.6 BVL3A3ZD_ _
57 195.7 BVL3A30D_ _
58 195.8 BVL3A31D_ _
59 195.9 BVL3A32D_ _
60 196 BVL3A33D_ _
)
