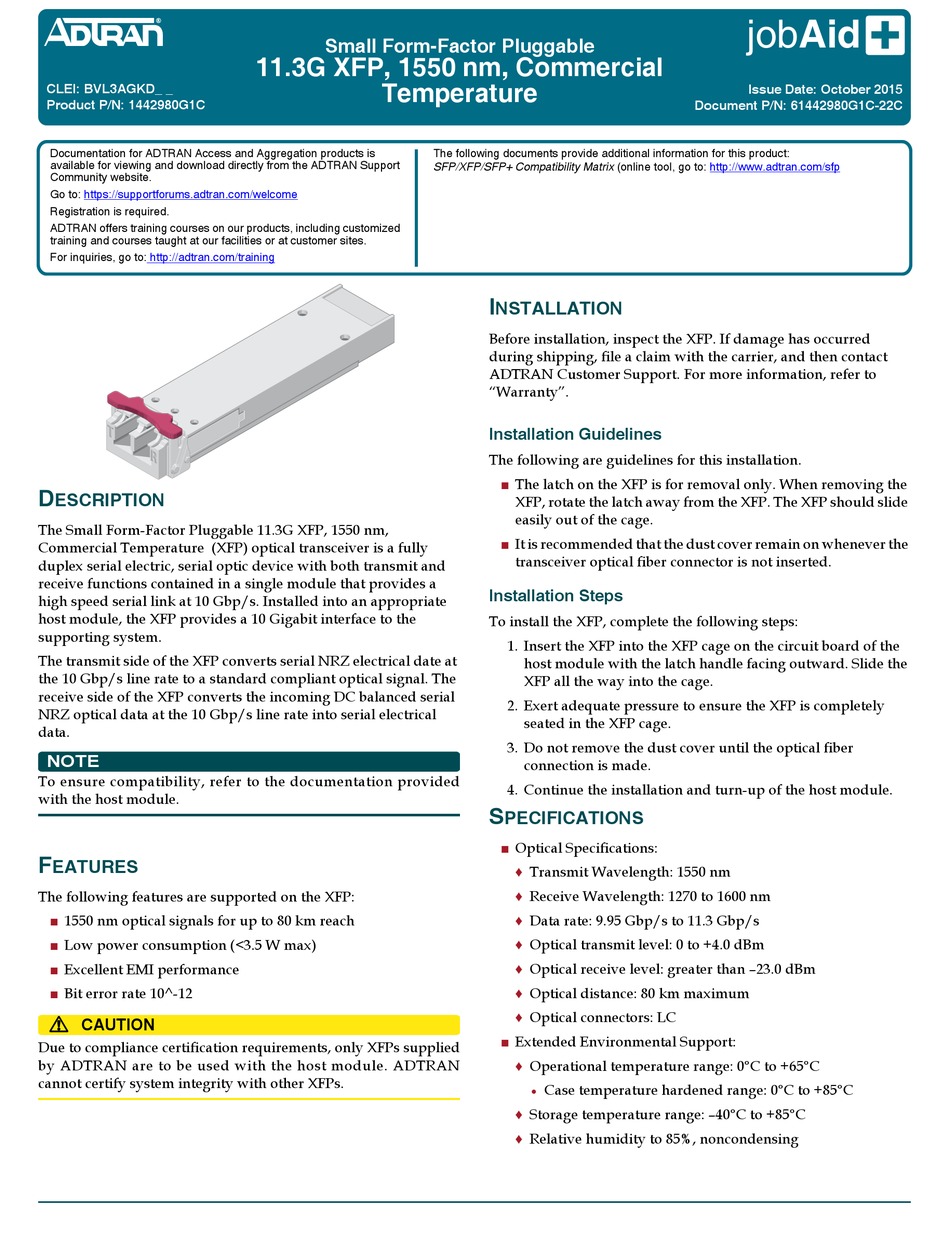

ADTRAN 11.3G XFP Manual

CLEI: BVL3AGKD_ _
Product P/N: 1442980G1C
Documentation for ADTRAN Access and Aggregation products is
available for viewing and download directly from the ADTRAN Support
Community website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION

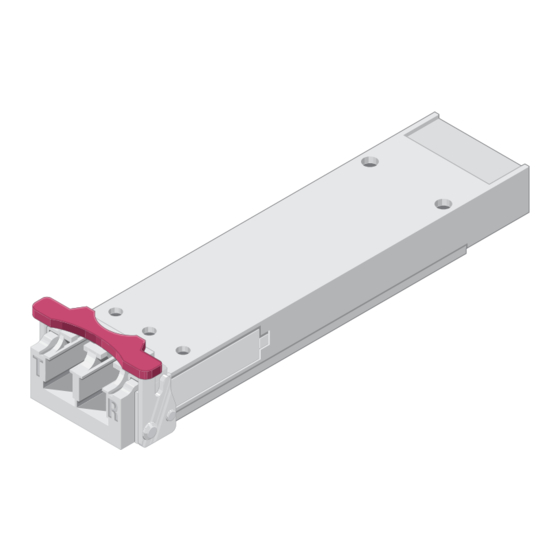

The Small Form-Factor Pluggable 11.3G XFP, 1550 nm,
Commercial Temperature (XFP) optical transceiver is a fully
duplex serial electric, serial optic device with both transmit and
receive functions contained in a single module that provides a
high speed serial link at 10 Gbp/s. Installed into an appropriate
host module, the XFP provides a 10 Gigabit interface to the
supporting system.
The transmit side of the XFP converts serial NRZ electrical date at
the 10 Gbp/s line rate to a standard compliant optical signal. The
receive side of the XFP converts the incoming DC balanced serial
NRZ optical data at the 10 Gbp/s line rate into serial electrical
data.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
F
EATURES
The following features are supported on the XFP:
■ 1550 nm optical signals for up to 80 km reach
■ Low power consumption (<3.5 W max)
■ Excellent EMI performance
■ Bit error rate 10^-12
!
CAUTION
Due to compliance certification requirements, only XFPs supplied
by ADTRAN are to be used with the host module. ADTRAN
cannot certify system integrity with other XFPs.
Small Form-Factor Pluggable
11.3G XFP, 1550 nm, Commercial
Temperature
The following documents provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix (online tool, go to:
I
NSTALLATION
Before installation, inspect the XFP. If damage has occurred
during shipping, file a claim with the carrier, and then contact
ADTRAN Customer Support. For more information, refer to
"Warranty".
Installation Guidelines
The following are guidelines for this installation.
■ The latch on the XFP is for removal only. When removing the
XFP, rotate the latch away from the XFP. The XFP should slide
easily out of the cage.
■ It is recommended that the dust cover remain on whenever the
transceiver optical fiber connector is not inserted.
Installation Steps
To install the XFP, complete the following steps:
1. Insert the XFP into the XFP cage on the circuit board of the
host module with the latch handle facing outward. Slide the
XFP all the way into the cage.
2. Exert adequate pressure to ensure the XFP is completely
seated in the XFP cage.
3. Do not remove the dust cover until the optical fiber
connection is made.
4. Continue the installation and turn-up of the host module.
S
PECIFICATIONS
■ Optical Specifications:
♦ Transmit Wavelength: 1550 nm
♦ Receive Wavelength: 1270 to 1600 nm
♦ Data rate: 9.95 Gbp/s to 11.3 Gbp/s
♦ Optical transmit level: 0 to +4.0 dBm
♦ Optical receive level: greater than –23.0 dBm
♦ Optical distance: 80 km maximum
♦ Optical connectors: LC
■ Extended Environmental Support:
♦ Operational temperature range: 0°C to +65°C
● Case temperature hardened range: 0°C to +85°C
♦ Storage temperature range: –40°C to +85°C
♦ Relative humidity to 85%, noncondensing
jobAid
Issue Date: October 2015
Document P/N: 61442980G1C-22C
http://www.adtran.com/sfp
