ADTRAN jobAid+ 1700486F1 Manual

Product P/N: 1700486F1
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The Small Form-factor Pluggable 9.95 -11.3G, Single-Mode, 10km,
optical transceiver is a fully duplex serial electric, serial optical
device with both transmit and receive functions contained in a
single module that provides a high speed serial link at 10 Gbps.
Installed into an appropriate host module, the SFP+ provides a 10
Gbps interface to the supporting system.
The transmit side of the SFP+ converts serial NRZ electrical data
at the 10 Gbps line rate to a standard compliant optical signal. The
receive side of the SFP+ converts the incoming DC balanced serial
NRZ optical data at the 10 Gbps line rate into serial electrical data.
The following features are supported on the SFP+:
■ 1310 nm optical signals for up to 10 km
-12
■ Bit error rate (<1x10 )
■ Excellent EMI performance
!
CAUTION
Due to compliance certification requirements, only SFPs supplied
by ADTRAN are to be used with ADTRAN modules. ADTRAN
cannot certify system integrity with other SFPs.

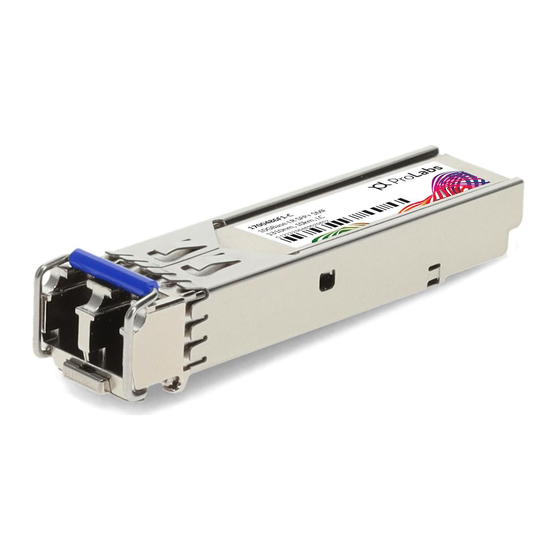

Small Form-Factor Pluggable
9.95 - 11.3G, Single-Mode, 10 km, SFP+
The following online documents and resources provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix (online tool, go to: http://www.adtran.com/sfp)
Specifications
General
■ Module type: SFP+
♦ Fiber/Copper: Fiber
♦ Single/Dual: Dual
♦ Direction: Duplex
■ Signal Data rate: 9.953 Gbps to 11.317 Gbps
■ Optical Connector: LC
■ Applications:
♦ 10G Base-LR/LW
♦ 10G Ethernet
♦ 10G Fiber Channel
♦ SDH STM64
■ Distance: 10 km maximum
■ Power: 1.5W max
Optical
■ Transmitter
♦ Laser Diode Type: DFB
♦ Tx Central Wavelength: 1310 nm
♦ Tx Output optical power: –6.0 dBm to +0.5 dBm
♦ Tx Spectral width: 1nm Max
♦ SMSR: <30 dB
♦ Extinction Ratio: 5 dB
♦ Optical Rise time (tr): 28 ps
♦ Optical Fall time (tf): 28 ps
■ Receiver
♦ Rx Type: PIN
♦ Rx Central wavelength: 1310 nm
♦ Output Eye: ITU-T G.691 SDH STM-64 I-64.1 Compatable
♦ Receive Over load:+0.5 dBm
♦ Receiver Sensitivity: –14.4 dBm
Environmental
■ Controlled Protected Environment (Inside)
♦ Operational temperature range: –5°C to +50°C
♦ Storage temperature range: –40°C to +85°C
♦ Relative humidity: 5 to 85%, noncondensing
jobAid
Issue Date: April 2016
Document P/N: 61700486F1-22A
1
