ADTRAN 1442140G2 Quick Start Manual

CLEI: VAUIAMBP_ _
Product P/N: 1442140G2
D
ESCRIPTION

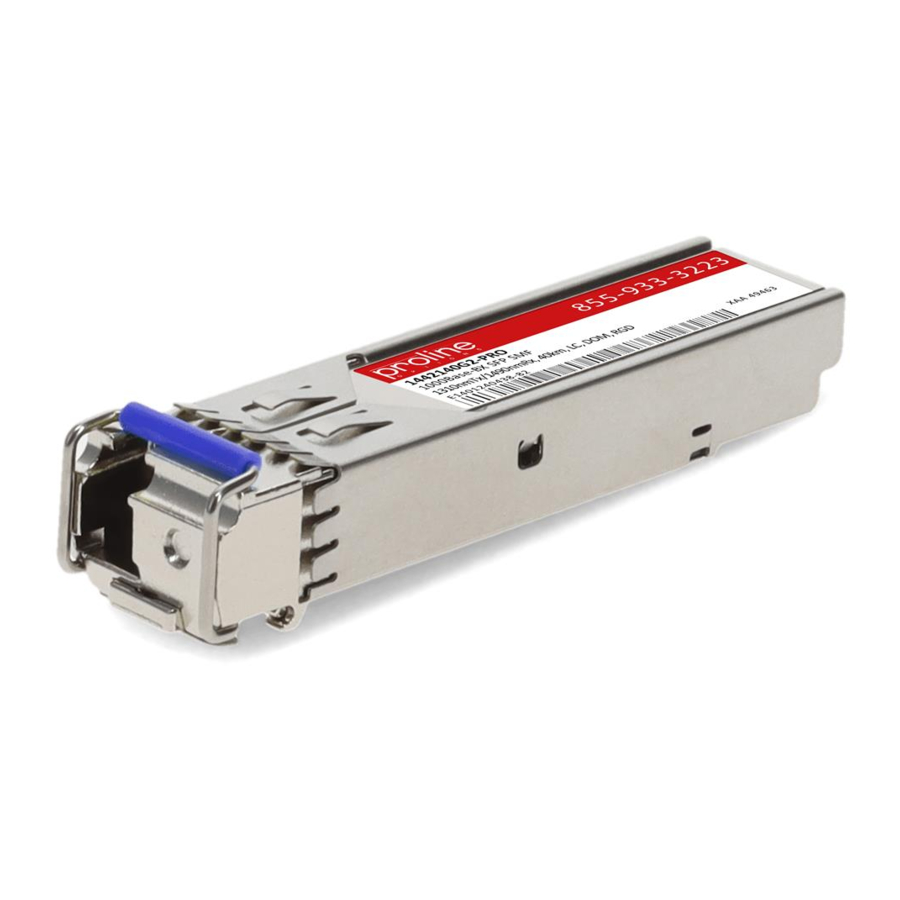

The Small Form-Factor Pluggable (SFP) Gigabit
Ethernet, Single-Fiber is a bidirectional SFP that
plugs into an Optical Network Unit (ONU) designed to
accept SFPs. The SFP provides a single optical
interface to the GigE physical interface. Installed into
an appropriate ONU, the SFP provides a Gigabit
Ethernet interface to the supporting system.
NOTE
To ensure compatibility, refer to the documentation
provided with the ONU.
In a deployment consisting of an ONU with a
1 4 4 2 1 4 0 G 2 S F P i n s t a l l e d ; t h e O p t i c a l L o o p
Termination (OLT) should have a complementary
1442140G1 SFP installed.
Rx: 1310 nm
OLT
Tx: 1490 nm
1442140G1
The following features are supported on the SFP:
♦
1000Base-LX 1310 nm Transmitter
♦ 1000Base-LX 1490 nm Receiver
♦ Optical distance: 40 km maximum
Due to compliance certification requirements, only
SFPs supplied by ADTRAN should be used. ADTRAN
cannot certify system integrity with other SFPs.
Small Form-Factor Pluggable
1310 nm TX / 1490 nm RX, 40 km
Rx: 1490 nm
ONU
Tx: 1310 nm
1442140G2
Operational Specifications
♦ Optical Specifications:
◊ Transmit wavelength: 1310 nm
◊
Receive wavelength: 1490 nm
◊ Optical transmit level: –2 dBm to +3 dBm
◊ Optical receive level: –23 dBm to –3 dBm
◊ Optical distance: 40 km
◊
Optical connectors: LC
♦ Extended Environmental Support:
◊ Operational temperature range: –40°C to +70°C
◊ Storage temperature range: –40°C to +85°C
◊
Relative humidity to 95%, noncondensing
I
NSTALLATION
Prior to installation, inspect the SFP. If damage has
occured during shipping, file a claim with the carrier,
and then contact ADTRAN Customer Support. For
more information, refer to "Warranty".
To install the SFP into an appropriate module,
complete the following steps:
1. Insert the SFP into the SFP cage on the circuit
board of the host module with the latch handle
facing outward. Slide the SFP all the way into the
cage.
NOTE
The latch on the SFP is for removal only. When
removing the SFP, rotate the latch away from the
SFP, the SFP should slide easily out of the cage.
2. Exert adequate pressure to ensure the SFP is
completely seated in the SFP cage.
3. Do not remove the connector plug until the
optical fiber connection is made.
It is recommended that the connector plug remain on
whenever the transciever optical fiber connector is
not inserted.
4. Continue the installation and turn-up of the host
module using the instructions in the Job Aid
provided with the module, or using the
Installation and Maintenance Practice (I&M)
available online at
Issue Date: 0812
Document P/N: 61442140G2-22B
www.adtran.com.
