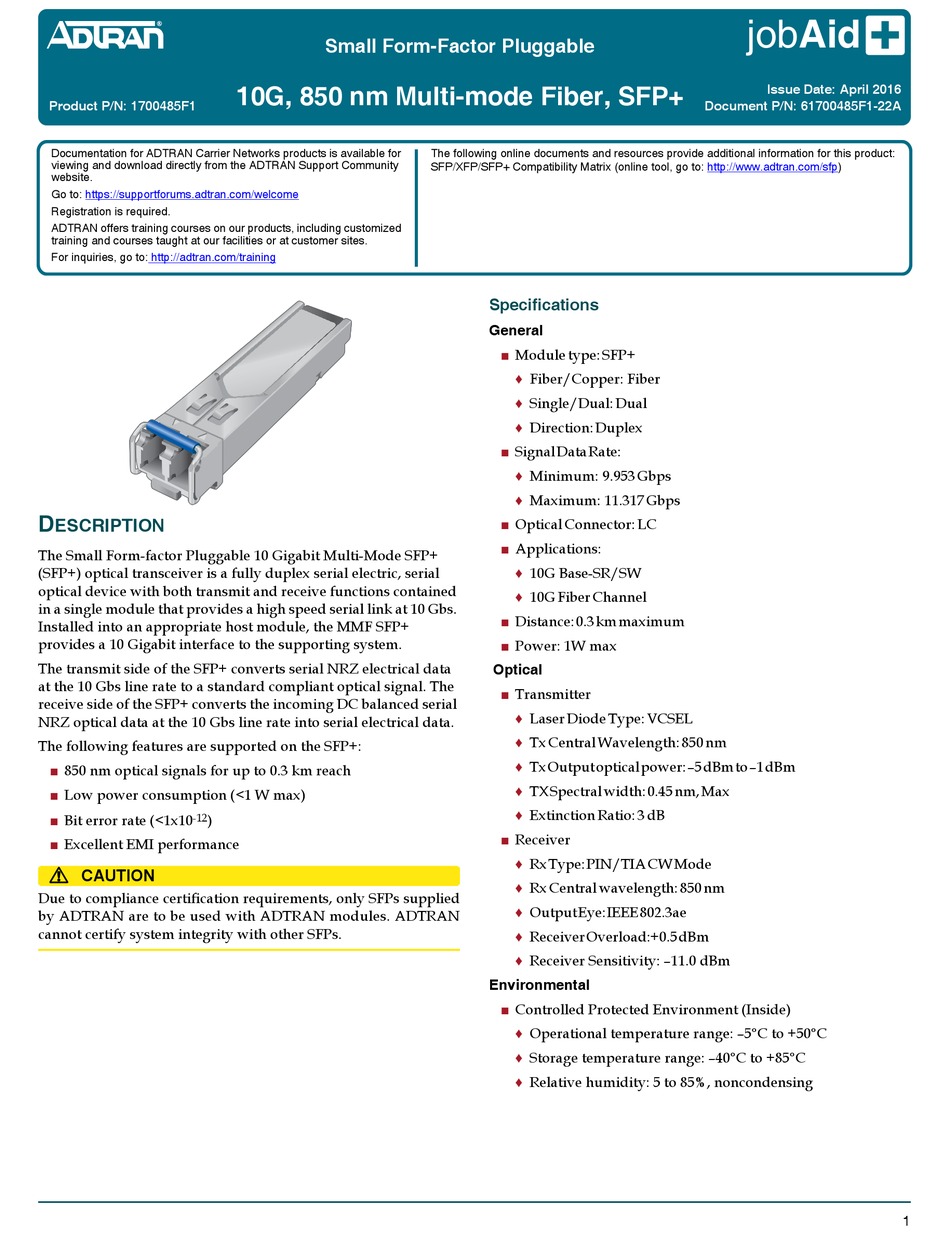

ADTRAN 1700485F1 Manual

Product P/N: 1700485F1
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION

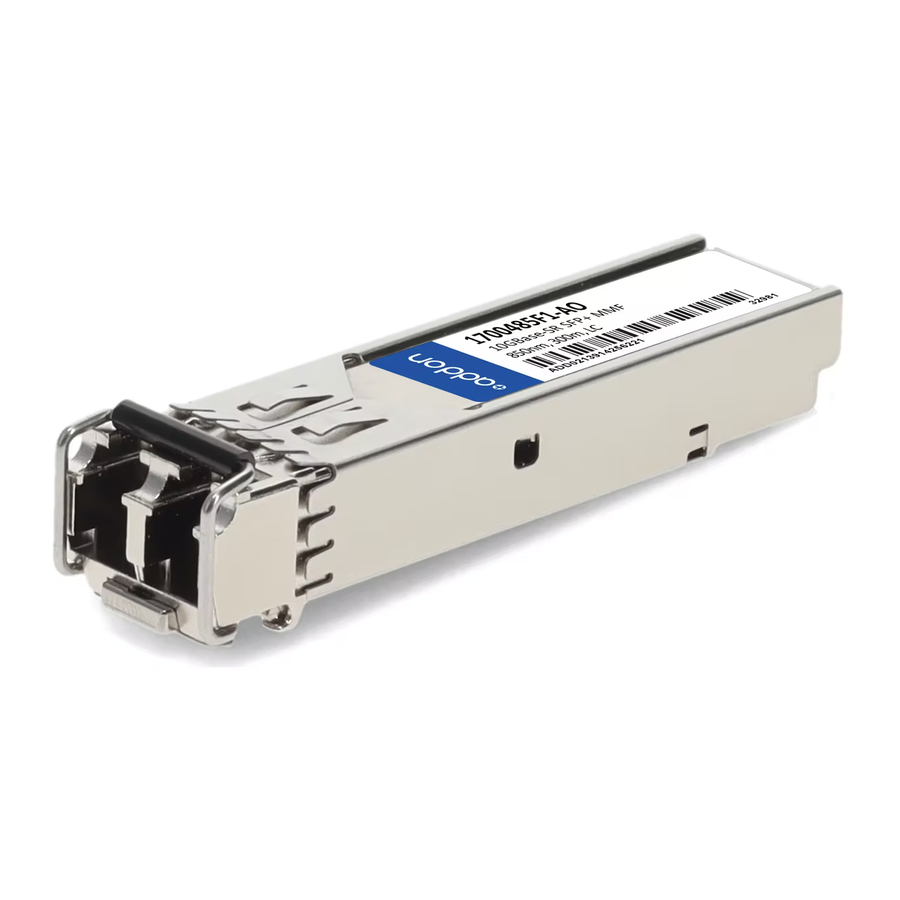

The Small Form-factor Pluggable 10 Gigabit Multi-Mode SFP+
(SFP+) optical transceiver is a fully duplex serial electric, serial
optical device with both transmit and receive functions contained
in a single module that provides a high speed serial link at 10 Gbs.
Installed into an appropriate host module, the MMF SFP+
provides a 10 Gigabit interface to the supporting system.
The transmit side of the SFP+ converts serial NRZ electrical data
at the 10 Gbs line rate to a standard compliant optical signal. The
receive side of the SFP+ converts the incoming DC balanced serial
NRZ optical data at the 10 Gbs line rate into serial electrical data.
The following features are supported on the SFP+:
■ 850 nm optical signals for up to 0.3 km reach
■ Low power consumption (<1 W max)
-12
■ Bit error rate (<1x10 )
■ Excellent EMI performance
!
CAUTION
Due to compliance certification requirements, only SFPs supplied
by ADTRAN are to be used with ADTRAN modules. ADTRAN
cannot certify system integrity with other SFPs.
Small Form-Factor Pluggable
10G, 850 nm Multi-mode Fiber, SFP+
The following online documents and resources provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix (online tool, go to: http://www.adtran.com/sfp)
Specifications
General
■ Module type: SFP+
♦ Fiber/Copper: Fiber
♦ Single/Dual: Dual
♦ Direction: Duplex
■ Signal Data Rate:
♦ Minimum: 9.953 Gbps
♦ Maximum: 11.317 Gbps
■ Optical Connector: LC
■ Applications:
♦ 10G Base-SR/SW
♦ 10G Fiber Channel
■ Distance: 0.3 km maximum
■ Power: 1W max
Optical
■ Transmitter
♦ Laser Diode Type: VCSEL
♦ Tx Central Wavelength: 850 nm
♦ Tx Output optical power: –5 dBm to –1 dBm
♦ TX Spectral width: 0.45 nm, Max
♦ Extinction Ratio: 3 dB
■ Receiver
♦ Rx Type: PIN/TIA CW Mode
♦ Rx Central wavelength: 850 nm
♦ Output Eye: IEEE 802.3ae
♦ Receiver Overload:+0.5 dBm
♦ Receiver Sensitivity: –11.0 dBm
Environmental
■ Controlled Protected Environment (Inside)
♦ Operational temperature range: –5°C to +50°C
♦ Storage temperature range: –40°C to +85°C
♦ Relative humidity: 5 to 85%, noncondensing
jobAid
Issue Date: April 2016
Document P/N: 61700485F1-22A
1
