CLEI: BVL3AHFD_ _
Product P/N: 1442530G1
D
ESCRIPTION

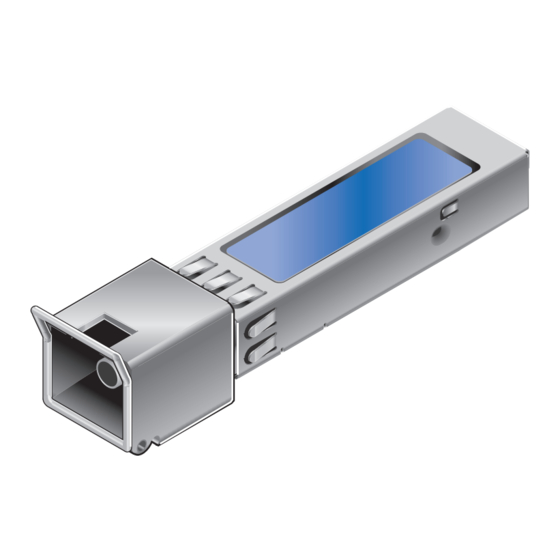

The Small Form‐Factor Pluggable (SFP) is a single‐mode fiber SFP
that plugs into an ADTRAN optical interface designed to accept
SFPs. The SFP provides a single optical interface to a physical
interface, and is intended for use with a Gigabit Passive Optical
Network (GPON) Optical Line Termination (OLT) module.
Installed into an appropriate module, the SFP provides a GPON
interface to the supporting system.
This SFP is designed for use in Wavelength Division Multiplexing
(WDM) applications.
This SFP has a Digital Diagnostic Monitoring (DDM) function
with internal calibration.
The following features are supported on the SFP:
Data rate downstream: 2.488 Gbps
Date rate upstream: 1.244 Gbps
Transmit Wavelength: 1490 nm
Receive Wavelength: 1310 nm
Optical distance: 30 km maximum
Hot Pluggable
Operational Specifications
Optical Specifications:
Optical transmit level: +1.5 dBm to +5 dBm
Optical receive level: –30 dBm minimum
Optical connectors: SC
Extended Environmental Support:
Operational temperature range: –40°C to +85°C
Storage temperature range: –40°C to +85°C
Relative humidity to 95%, noncondensing
Operating Altitude Range: –197 feet (–60 meters) to 13000
feet (3962 meters)
NOTE
The operating ambient temperature is derated by 1°C/1000 feet
(3.3°C/km).
Small Form-Factor Pluggable
GPON OLT
Transceiver SFP
Due  to  compliance certification  requirements,  only  SFPs
approved by ADTRAN are to be used with the host module.
ADTRAN cannot certify system integrity with other SFPs.
I
NSTALLATION
To install the SFP into an appropriate module, complete the
following steps:
Inspect the SFP. If damaged, file a claim with the carrier and then
contact ADTRAN Customer Support.
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
COMPLIANCE
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist strap
to prevent damage to electronic components. Place modules in
antistatic packing material when transporting or storing. When
working on modules, always place them on an approved
antistatic mat that is electrically grounded.
!
CAUTION
!
CAUTION
1. Insert the SFP into the SFP cage on the module. Ensure the
latch on the SFP is facing upward for correct installation.
2. Slide the SFP all the way into the SFP cage until there is an
audible "click".
NOTE
The latch on the SFP is used to remove the SFP from the cage
on the circuit card.
The SFP meets or exceeds all the applicable requirements of
NEBS, Telcordia GR‐63‐CORE, and GR‐1089‐CORE.
!
CAUTION
NOTE
The SFP is a Class 1 Laser Product and complies with the Laser
Safety requirements of FDA 21CFR 1040.10 and 1040.11, and
EN60825‐1 and ‐2. The SFP is NRTL Listed and CB Certified to
all applicable American and European safety standards.
The SFP has been evaluated to international safety standards
EN 60950‐1, AS/NZS 60950.1, and IEC 60950‐1. The SFP meets
the requirements for CE marking under the EMC Directive
and Low Voltage Directive. Standards used to demonstrate
Compliance are EN 300 386, EN 50222, EN 55024 as applicable
and EN 60950.
jobAid
Issue Date: April 2010
Document P/N: 61442530G1-22A
