10-5. Plug Assembly Replacement

Work
Applicable
model category
AR20M Disassembly
AR30M
AR40M
Assembly
Step
1) Remove the plug assembly.
Remove the 2 mounting screws and remove the
plug assembly.
2) Confirm that the O-ring is mounted onto the
plug assembly.
When the O-ring comes out or is left on the
regulator, mount the O-ring to the plug
assembly correctly.
3) Assemble the plug assembly.
Assemble the plug assembly to the product with
the mounting screws and tighten the screws
referring to the tightening torque specified in the
right column.

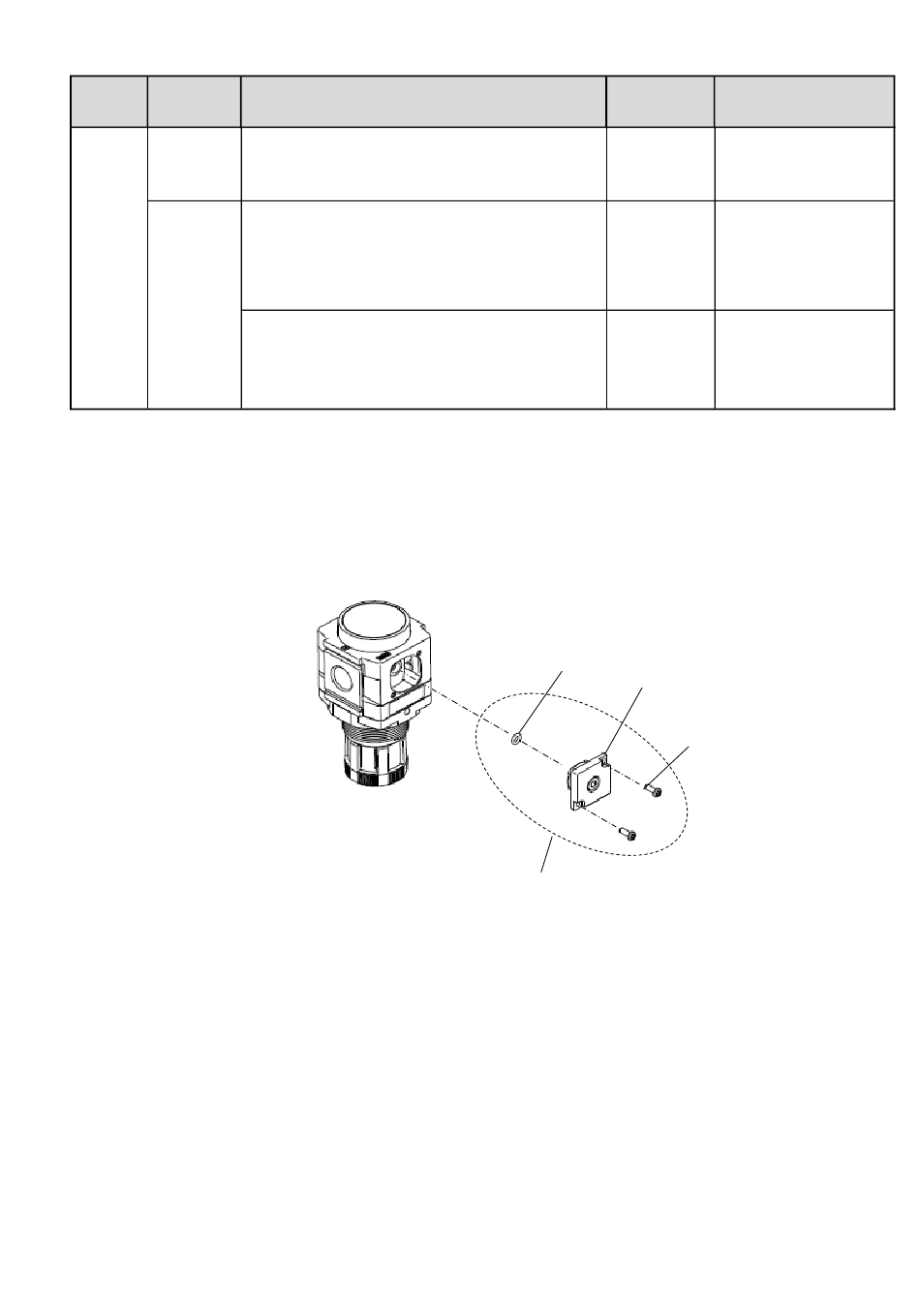

Product
O-ring
Plug assembly
(12)
Plug assembly
-19-
Tool Criteria
Phillips
screwdriver
-
Presence of the O-ring
Phillips Tightening torque:
screwdriver 0.6+/-0.05 N m
Mounting screws
(2 pcs.)
－
