v

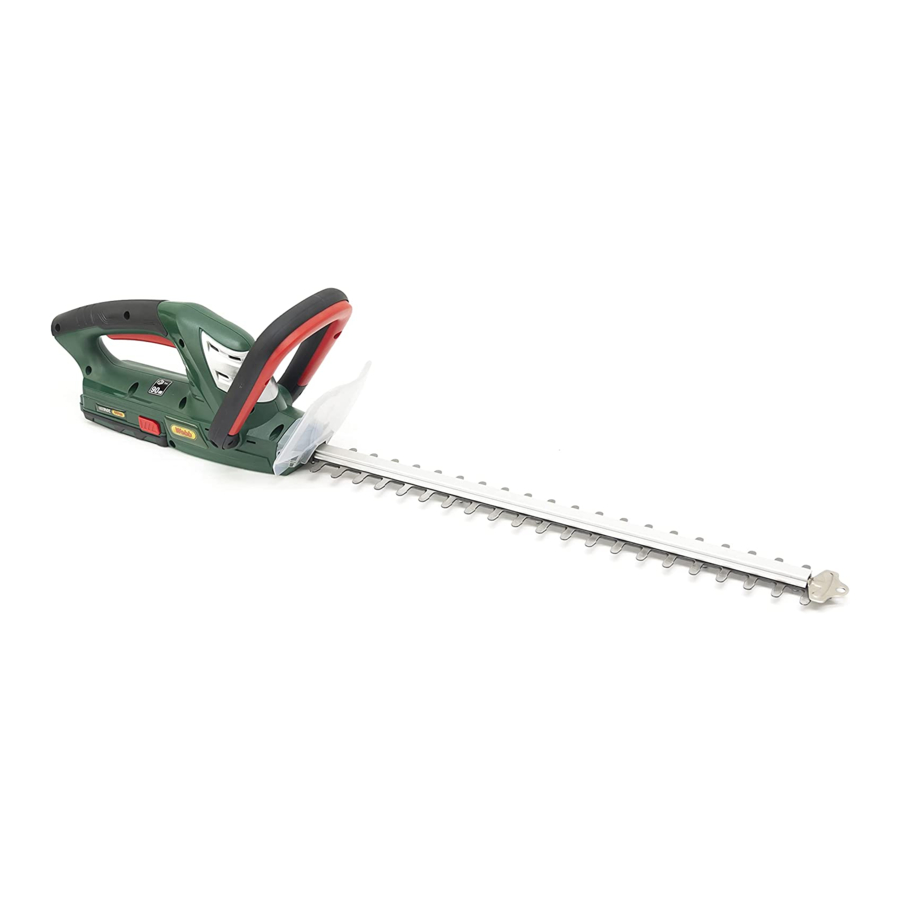

50cm Hedge Trimmer
with 20V 2Ah Lithium-Ion Battery & Charger
WEV20HT
1938201002
en - Original Instructions
ASSEMBLY REQUIRED
Minimum Two Persons
Save these instructions
Sales & Support: 01793 333212
Before use please read & understand this manual; paying particular attention to the safety instructions before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every eff ort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement
determines the right to make modifi cations without prior warning.
Images are used for illustration purposes only.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Webb WEV20HT
Summary of Contents for Webb WEV20HT
- Page 1 50cm Hedge Trimmer with 20V 2Ah Lithium-Ion Battery & Charger WEV20HT 1938201002 en - Original Instructions ASSEMBLY REQUIRED Minimum Two Persons Save these instructions Sales & Support: 01793 333212 Before use please read & understand this manual; paying particular attention to the safety instructions before use.
- Page 2 INSTRUCTION MANUAL 14 October 20 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
- Page 3 CONTENTS INTENDED USE GENERAL SAFETY INSTRUCTIONS SPECIFICATION KNOW YOUR MACHINE BATTERY CHARGING OPERATION CLEANING & MAINTENANCE STORAGE & TRANSPORTATION TROUBLE SHOOTING PARTS DIAGRAM & LIST EC DECLARATION OF CONFORMITY INTENDED USE The basic version of the equipment is a handheld lithium battery powered hedge-trimmer, intended for private use, i.e.
- Page 4 INSTRUCTION MANUAL WARNING For safety reasons, the hedge-trimmer may not be used as a drive unit for other equipment or toolkits of any kind, unless specifically advised to do so by the manufacturer. The equipment is to be used only for its prescribed purpose.
-
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. -
Page 6: General Operation
INSTRUCTION MANUAL GENERAL SAFETY RULES WARNING Before you put the machine into operation, you must read this instruction manual. When using this machine, observe the following safety instructions to remove the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters. Where applicable, follow the legal directives or regulations for the prevention of accidents in relation to the use of this machine. -
Page 7: Slope Operation
the disengaged position when released. 17. Never operate in wet grass. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your footing, release the trigger/lever immediately and the blades stop moving after release. -
Page 8: Personal Safety
INSTRUCTION MANUAL SERVICE General Service: 1. Before cleaning, repairing, or inspecting, make certain the blades and all moving parts have stopped. Disconnect the battery from the machine to prevent unintended starting. 2. Check the blades at frequent intervals for proper tightness. Also, visually inspect blades for damage. Replace with the original equipment manufacture’s (O.E.M.) parts only, listed in this manual. - Page 9 BATTERY TOOL USE AND CARE 1. Recharge only with the charger specified by the manufacturer. A charger that is unsuitable for one type of battery may create a risk of fire when used with another battery. 2. Use power tools only with specifically designated battery. Use of any other battery may create a risk of injury and fire 3.
-
Page 10: Danger Of Fire
INSTRUCTION MANUAL WARNING: Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks. DANGER OF FIRE! Never charge batteries in the vicinity of acids or easily flammable materials. Charge battery only at a temperature bet-ween 10 - 45 °C. -
Page 11: Specification
Weight without Battery N.W 2.8kg Consistent with our policy of continuous improvement, WEBB reserves the right to change the design and configuration of any of its products without notice or obligation. Therefore, please treat the text and images in this manual for illustrative purposes only. They may in no case serve as a basis for any legal claim. -
Page 12: Know Your Machine
INSTRUCTION MANUAL KNOW YOUR MACHINE 1. Rear Handle 2. Trigger 3. Front Handle 4. Safety Lever 5. Hand Guard 6. Blade Assembly 7. Blade Guard 8. Battery 2Ah 9. Charger BATTERY CARE • There will be some charge present in the Battery on delivery, but to ensure maximum running time, charge your Battery for 4-hours before first use. - Page 13 TO REMOVE Depress release button (A) on the back of battery cartridge (B) to release the battery. Pull the battery cartridge out of tool. TO INSTALL Align the battery with the cavity in the handle. Insert the battery into the handle until the battery release button locks into place.
-
Page 14: Winter Storage
INSTRUCTION MANUAL CONNECTING CHARGER TO POWER SOURCE Connect the battery charger to the voltage and frequency specified in this manual and on the rating plate. Put the electric plug in an earthed socket-outlet. The LED on the battery charger lights up green. CONNECTING CHARGER TO BATTERY The battery must be charged before using it the first time. -
Page 15: General Instructions
GENERAL INSTRUCTIONS: In order to maintain the long service life of the battery, always follow the instructions below: The line trimmer will automatically switch off when the battery voltage is low. The battery must then be recharged before the tool can be used again. Always recharge the lithium-ion battery prior to any prolonged period of non-use, i.e. -
Page 16: Trimming Instructions
INSTRUCTION MANUAL Switching on: Pull the On/Off trigger upwards with your right hand. Push in the safety lever with your left hand. Switching off: Release the On/Off trigger or safety lever. WARNING Never attempt to lock a switch in the ON position TRIMMING INSTRUCTIONS WORKING POSITION (Figure 4) –... - Page 17 TRIMMING NEW GROWTH (Figure 5) - A wide, sweeping motion, feeding the blade teeth through the twigs is most effective. A slight downward tilt of the blade, in the direction of motion gives the improved cutting. CAUTION: Do not cut stems greater than 16 mm. Use the trimmer only for cutting normal shrubbery around houses and buildings.
-
Page 18: Cleaning And Maintenance
WARNING To guard against injury, observe the following: • Read this instruction manual before using. Save the instruction manual. • Check the hedge for foreign objects, such as wire or fences before each use. • Keep hands on handles. Don’t overreach. •... -
Page 19: Maintenance
MAINTENANCE A plastic blade cover is supplied with your trimmer for storing. Remove the battery and slip the hedge trimmer blade into the sheath, as shown in (Figure 8). WARNING Remove battery before servicing, cleaning or removing material from the gardening appliance. The cutting blades are made from high quality, hardened steel and with normal usage, they will not require sharpening. -
Page 20: Storage And Transportation
INSTRUCTION MANUAL STORAGE & TRANSPORTATION STORAGE Store the tool in a dry and well-ventilated place. TRANSPORTATION Always remove the battery from the machine and ensure the blade guard is securely place over the blade assembly, when transporting the product. TROUBLE SHOOTING Switch off the trimmer and disconnect the battery before inspecting, cleaning or working on the thread. - Page 21 Notes...
-
Page 22: Parts Diagram
INSTRUCTION MANUAL PARTS DIAGRAM... -
Page 23: Parts List
PARTS LIST Item Webb Item Webb Description Description Part No. Part No. WE144- WE144- Motor Handle Right Cap 301062870 102010429 Assembly WE124- Self-Tapping WE144- Motor Gear 104030136 Screw ST4.2x15 103070102 WE144- WE144- Triple Screw Handle Left Cap 301062871 104030081A Assembly... -
Page 24: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Lithium-ion Battery Hedge Trimmer Model(s): WEV20HT Product Number: 1938201002 Type/Serial No. As per rating label on machine Battery: 18Vd.c - 20V d.c Max No Load Speed: 1200 rpm Max. - Page 25 Notes...
- Page 26 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the conditional manufacturer domestic warranty*. Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
- Page 27 2. Period of Warranty - valid from 1 January 2020 Webb (excludes Dynamic, Legacy & Heritage), 2 year conditional warranty from the original date of sale to the fi rst domestic user.
-
Page 28: Warranty
It is the owner’s responsibility to ensure that their Webb machine is maintained at specifi c intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &... - Page 29 Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
-
Page 30: Service Record
Service Record INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date... - Page 31 Email From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, off ers or just opinions, which may be used for marketing, research or analysis purposes.
- Page 32 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
