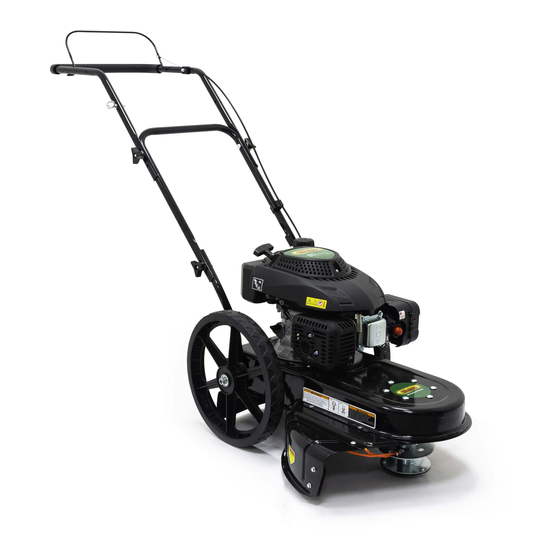

Petrol Walk Behind Trimmer

WEPWT

1938259001

en - Original Instructions

ASSEMBLY REQUIRED

Minimum Two Persons

Sales & Support: 01793 333212

Before use please read & understand this manual; paying particular attention to the safety instructions before use.

Incorrect use of the product could put the operator or machine in danger.

Whilst every eﬀ ort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement

determines the right to make modiﬁ cations without prior warning.

Images are used for illustration purposes only.

Need help?

Do you have a question about the WEPWT and is the answer not in the manual?

Questions and answers

Summary of Contents for Webb WEPWT

Page 1 Petrol Walk Behind Trimmer WEPWT 1938259001 en - Original Instructions ASSEMBLY REQUIRED Minimum Two Persons Sales & Support: 01793 333212 Before use please read & understand this manual; paying particular attention to the safety instructions before use. Incorrect use of the product could put the operator or machine in danger.
Page 2 INSTRUCTION MANUAL 27 May 2020 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
Page 3 CONTENTS INTENDED USE SAFETY INSTRUCTIONS SPECIFICATIONS KNOW YOUR MACHINE ASSEMBLY PRE-OPERATION OPERATION MAINTENANCE, CLEANING & STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST DECLARATION OF CONFORMITY WARRANTY INTENDED USE The basic version of the equipment is a walk behind trimmer intended for private use, i.e. for use in home and gardening environments.
Page 4 INSTRUCTION MANUAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. Read &...
Page 5 GENERAL SAFETY RULES WARNING Before you put the machine into operation, you must read this instruction manual. When using this machine, observe the following safety instructions to exclude the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters. Where applicable, follow the legal directives or regulations for the prevention of accidents in relation to the use of this machine.
Page 6 INSTRUCTION MANUAL 17. The OPC/Brake lever is a safety device. Never attempt to bypass its operation. Doing so makes the safety device inoperative and may result in personal injury through contact with the rotating trimmer line. The control lever must operate easily in both directions and automatically return to the disengaged position when released.
Page 7 SERVICE Safe Handling of Petrol: 1. To avoid personal injury or property damage use extreme care in handling petrol. Petrol is extremely flammable, and the vapors are explosive. Serious personal injury can occur when petrol is spilled on yourself or your clothes, which can ignite. Wash your skin and change clothes immediately. 2.
Page 8 These effects can be worsened by low ambient temperatures and/or by gripping the handgrips excessively tightly. Period of use you can extend with appropriate gloves or regular breaks. Take frequent work breaks. Limit the amount of exposure per day. SPECIFICATIONS Model WEPWT Product Number 1938259001 Working Width 560mm...
Page 9 KNOW YOUR MACHINE 1. OPC/Brake Lever 2. Engine Recoil Starter 3. Top Handle 4. Handle Fixing 5. Middle Handle 6. Wheel 7. 4mm Trimmer Line 8. Guard 9. Air Filter Housing 10. Fuel Tank Cap 11. Exhaust (Muffler) 12. Primer Bulb * 13.
Page 10 INSTRUCTION MANUAL ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require assistance with regards to the contents or operation of the machine, please contact us: Tel: 01793 333212 Email: customerservice@webbgardenpower.co.uk Opening hours weekdays: February to October 8:30am - 5:30pm / November to January 8:30am - 5:00pm (Closed Bank Holidays) IMPORTANT INFORMATION...
Page 11 UPPER HANDLE 1. Remove the triangle knobs and carriage bolts from the left & right upper handles. 2. Place the upper handle into one of two height position holes on the middle handle by pivoting and fastening with the triangle knobs and carriage bolts. ENGINE RECOIL STARTER HANDLE 1.
Page 12 INSTRUCTION MANUAL TRIMMER GUARD 1. Pull the trimmer shield out into position by pivoting and lining up the holes. 2. Secure with the three bolts and nuts supplied and fasten it to the main body of the machine as imaged below.
Page 13 PRE-OPERATION FUEL & OIL WARNING YOUR MACHINE IS SUPPLIED WITHOUT ENGINE OIL OR PETROL Operating the engine with insufficient oil can have catastrophic consequences. Any failure caused by insufficient oil, will not be covered by the manufacturer’s warranty. Read instructions carefully. Fuel &...
Page 14 INSTRUCTION MANUAL ADD ENGINE OIL Only use 4-stroke SAE30 or 10W/30 air cooled lawnmower engine oil. DO NOT USE automotive or marine oil. 1. Remove the oil filler cap with built in dipstick (G). 2. Fill the engine with 4-stroke SAE30 or 10W/30 air cooled lawnmower engine oil. DO NOT USE automotive or marine oil.
Page 15 OPERATION ENGINE STARTING & STOPPING PROCEDURE STARTING THE ENGINE - COLD 1. Press the engine primer bulb up to 3 times. 2. Pull the OPC/brake lever towards the top handle. 3. Grab the recoil starter handle and pull lightly until resistance is felt, then pull rapidly. CAUTION Do not allow the starter grip to snap back against the engine.
Page 16 INSTRUCTION MANUAL STOPPING THE ENGINE 1. Release the OPC/brake lever to stop the engine. USING YOUR TRIMMER Be sure the trimming area is clear of stones, sticks, wire, or other objects which could damage the trimmer or engine. Such objects could be accidently thrown by the trimmer in any direction and cause serious personal injury to the operator and others.
Page 17 MAINTENANCE, CLEANING & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. Turn off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated.
Page 18 INSTRUCTION MANUAL Check/Add Oil 1. Remove the dipstick and wipe with a clean cloth. 2. Insert the dipstick into the filler neck without screwing it in. 3. Remove the dipstick and check the oil level. The oil level should be in between the MIN. and MAX. levels on the dipstick.
Page 19 Air Filter A dirty air filter will block air flow into the carburettor. To prevent carburettor malfunction, service the air filter regularly. Service more frequently when operating the engine in extremely dusty areas. 1. Remove the air filter housing cover (C). Be careful to prevent dirt and debris from falling into the air cleaner assembly.
Page 20 INSTRUCTION MANUAL 4. Attach the plug washer, thread the plug in by hand to prevent cross‐threading. 5. When mounting a new spark plug, you should screw 1/2 more thread with the wrench after the washer is compressed. If you are mounting an old one, you should only screw 1/8‐1/4 more thread. CAUTION The spark plug must be securely tightened.
Page 21 STORAGE & TRANSPORT The following steps should be taken to prepare your trimmer for storage. 2. Empty the fuel tank. Disconnect the spark plug cap. Drain petrol from the trimmer with a suction pump. Alternatively, tip the trimmer so that it rests on its side. Keep the side with the air filter housing facing up. Drain all fuel from fuel tank into proper receptacle for storage.
Page 22 INSTRUCTION MANUAL TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES REMEDIAL ACTION OPC/Brake lever disengaged. Engage OPC/Brake lever. Spark plug cap disconnected. Connect spark plug cap to spark plug. Fuel tank empty or stale fuel. Fill tank with clean, fresh petrol. Engine not primed. Prime engine as instructed in the Engine does not start Operation section.
Page 23 Notes...
Page 24 INSTRUCTION MANUAL PARTS LIST PARTS DIAGRAM - WEPWT 1938259001...
Page 25 RTS LIST - WEPWT 1938259001 Item No. Webb Part No. Webb Description Item No. Webb Part No. Webb Description WE153-90058 M6 Nut WE153-91868 Bolt M8x45 WE178-624015 Bump Head WE153-91870 Bolt M6x35 WE149-94040 Spring Washer WE178-623003V-010 OPC/Brake Lever WE178-96812 Flat Gasket...
Page 26 INSTRUCTION MANUAL PARTS DIAGRAM - ENGINE...
Page 27 PARTS LIST - ENGINE Item No Webb Part No. Description Item No Webb Part No. Description WE151-91365 M6x12 Bolt WE151-91038 Stud Bolt WE151-311101 Cylinder Head Cover WE151-293601-055 Fuel Cap Assembly WE151-96161 Cylinder Gasket WE151-293206-055 Fuel Tank WE151-312101 Rocker Arm WE151-296402...
Page 28 Please find on the following pages, parts lists and drawings for your machine. Should you require a replacement part, please call our Spares Team on 01793 333212, option 1 for assistance. Webb recommends the use of Handy Parts oils, fuel additives, nylon lines pre-packed parts for all our machines.
Page 29 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Walk Behind Wheeled Petrol Line Trimmer Model(s): WEPWT Product No.: 1938259001 Type/Serial No. As per rating label on machine Engine Displacement: 161 cm Rated Engine Power: 3.0 kW / 3000 rpm...
Page 30 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the conditional manufacturer domestic warranty*. Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
Page 31 2. Period of Warranty - valid from 1 January 2020 Webb (excludes Dynamic, Legacy & Heritage), 2 year conditional warranty from the original date of sale to the ﬁ rst domestic user.
Page 32 It is the owner’s responsibility to ensure that their Webb machine is maintained at speciﬁ c intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
Page 33 SERVICE BOOK Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
Page 34 Service Record INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
Page 35 Email From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, oﬀ ers or just opinions, which may be used for marketing, research or analysis purposes.
Page 36 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
