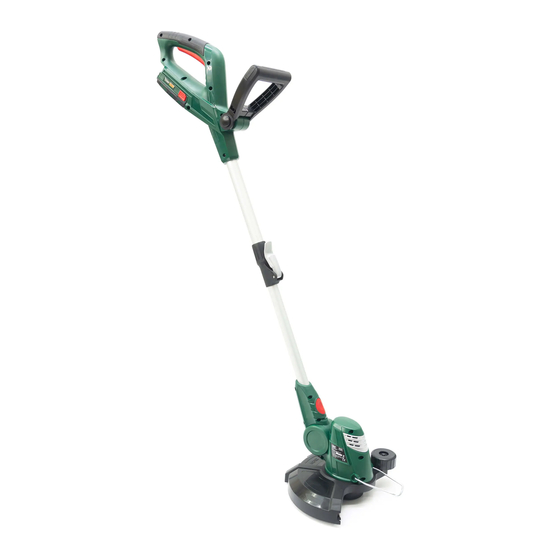

25cm Line Trimmer
with 20V 2Ah Lithium-Ion Battery & Charger
WEV20LT
1938200001
en - Original Instructions
Sales & Support: 01793 333212
Before use please read & understand this manual; paying particular attention to the safety instructions.
The manufacturer reserves the right to change the product specifi cation and livery according to continues product improvements.
Advertisement
Related Manuals for Webb WEV20LT
Summary of Contents for Webb WEV20LT
- Page 1 25cm Line Trimmer with 20V 2Ah Lithium-Ion Battery & Charger WEV20LT 1938200001 en - Original Instructions Sales & Support: 01793 333212 Before use please read & understand this manual; paying particular attention to the safety instructions. The manufacturer reserves the right to change the product specifi cation and livery according to continues product improvements.
- Page 2 INSTRUCTION MANUAL 8 August 19 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
-
Page 3: Important Information
Weight N.W 2.2kg Consistent with our policy of continuous improvement, WEBB reserves the right to change the design and configuration of any of its products without notice or obligation. Therefore, please treat the text and images in this manual for illustrative purposes only. They may in no case serve as a basis for any legal claim. - Page 4 INSTRUCTION MANUAL IMPORTANT INFORMATION WARNING Read this instruction manual carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions to reduce the risk of fire, electric shock and personal injury. IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS! This machine can cause serious injury to the operator and others, the warning and safety instructions must be followed to ensure reasonable safety and efficiency in using this product.
-
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 INSTRUCTION MANUAL PREPARATION not use the device, as you are not in a condition To operate this device safely, the user must to use it safely. have read and understood these instructions for This product is not intended to be used by use before using the device for the first time.
- Page 7 In the vicinity of 15m around the cutting area Vibration during use may cause these to loosen. there should be no people or animals, they may Replace damaged, missing or failed parts before be hurt by flying objects. using. Only work with good light and visibility. Warning labels carry important information.
- Page 8 INSTRUCTION MANUAL water. In case of fluid contact with the eyes, seek medical aid. Leaking battery fluid can cause irritation of the skin or burns. DANGER OF FIRE! In the event of improper use of the battery Never charge batteries in the vicinity of acids pack, there is a risk of escaping hazardous or easily flammable materials.
- Page 9 KNOW YOUR MACHINE 1. Front Handle 2. Height Adjuster 3. Rotating Head Adjuster 4. Plant Guard 5. Guard 6. Trigger 7. Lawn Edging Wheel 8. 20V 2Ah Battery 9. Handle Angle Adjuster 10. Spool & Nylon...
- Page 10 INSTRUCTION MANUAL ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents or operation of your machine, please call our Customer Service Team on 01793 333212 or email customerservice@webbgardenpower.co.uk (Monday to Friday 8.00am to 5.30pm excl.
- Page 11 PLANT GUARD Only follow the below action if the plant guard is not fitted to the machine. Align the plant guard with the two fixing holes on the front of the motor assembly. Prize apart the two prongs of the plant guard and slide them into the fixing holes. BATTERY CARE There will be some charge present in the Battery on delivery, but to ensure maximum running time,...
- Page 12 INSTRUCTION MANUAL CHARGING The battery must be charged for approximately 4 hours before using it for the first time. Use only the original charger supplied with this machine or approved replacement. Use charging unit only in dry rooms. Remove the battery from the grass trimmer. Apply pressure to both side release buttons to release the •...
- Page 13 OPERATION DANGER Risk of injury! The device may only be put into operation if there are no defects. If a part is defective it must be replaced before the device is used again. WARNING Risk of injury! Before starting work check the area and remove all objects which may be kicked up by the unit.
- Page 14 INSTRUCTION MANUAL AUTOFEED NYLON LINE MANUAL FEED BUTTON When switching on the line trimmer, the inertia of the head spinning will feed a small length of line out. An ‘impact’ noise can be heard when the nylon line hits the cutting knife, located on the shield. After a minimal period, the nylon line will be cut to the correct length and the noise will reduce as the motor reaches operation speed.
- Page 15 LINE TRIMMING (STANDARD) LINE TRIMMING (SLOPES & UNDER OBSTACLES) Adjust the angle of the head up or down to ensure you have a clean and unobscured cutting angle. TRIMMING EDGES Press in and hold the locking button. Rotate the cutting head 180 degrees. Release the locking button. Guide the unit, as shown, slowly along the edge of the lawn, using the side wheel.
- Page 16 INSTRUCTION MANUAL CLEANING & MAINTENANCE DANGER Prior to conducting maintenance or cleaning: Remove the battery from the machine. The trimmer continues to spin after being switched off! Always remove battery before performing any work on the trimmer! Note: Clean unit immediately after every use. Grass debris when dry is very hard and are very difficult to remove.
-
Page 17: Trouble Shooting
TROUBLE SHOOTING Switch off the trimmer and disconnect the battery before inspecting, cleaning or working on the thread. Error/Fault Cause Remedy Place the coil in a container with Nylon line too dry or brittle water for approx. 24 hours. Dry Nylon Line breaks too frequently and reinstall it. - Page 18 PARTS DIAGRAM...
-
Page 19: Parts List
PARTS LIST Item Item Webb Part No. Description Webb Part No. Description WE143-301062815 Left Handle WE143-103060271 Button Spring Connector WE143-301051101 Safety Button WE132-103060096 Spring Positive Left Motor WE132-102020111 WE143-301062818 Microswitch Housing WE143-301062665 Trigger WE132-301029421 Left Connector Safety Button Shake Head... -
Page 20: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Lithium-ion Battery Line/Edge Trimmer Model(s): WEV20LT Product Number: 1938200001 Type/Serial No. As per rating label on machine Battery: DC 20V Max Protection: Class III Max. - Page 21 Notes...
- Page 22 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the conditional manufacturer domestic warranty*. Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
- Page 23 Webb (excludes Electric Handheld) & Webb Pro, 2 year conditional warranty from the original date of sale to the fi rst domestic user. Webb Electric Handheld & Dynamic, Legacy & Heritage 1 year warranty from the original date of sale to the fi rst domestic user.
- Page 24 It is the owner’s responsibility to ensure that their Webb machine is maintained at specifi c intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
- Page 25 Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
- Page 26 Service Record INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
- Page 27 Email From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, off ers or just opinions, which may be used for marketing, research or analysis purposes.
- Page 28 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
