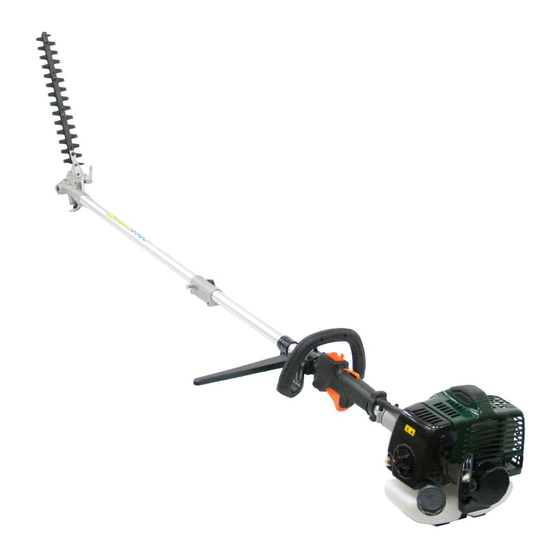

- Page 1 26cc Loop Handle Petrol Multi Cutter WEMC26 193868001 Operator’s Manual & Parts List Please read & understand this manual, paying particular attention to the safety instructions, before use. 23 Nov 2015...
- Page 3 COMPONENTS ASSEMBLY OPERATION MAINTENANCE, CLEANING & STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST DECLARATION OF CONFORMITY WARRANTY For Spares or Support of your Webb product, please contact us: Tel: 01793 333212 (Mon – Fri 8.30am to 5.00pm) Email: customerservice@webblawnmowers.co.uk www.webblawnmowers.co.uk...
-
Page 4: Safety Instructions
INSTRUCTION MANUAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. Read &... - Page 5 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times.
-
Page 6: Specifications
INSTRUCTION MANUAL SPECIFICATIONS Model WEMC26 Product Number 193868001 Engine (cc) 25.4 Idle Speed (r/min) 2800 Carburetor Diaphragm Fuel Tank Capacity (Litre) 0.70 Fuel Ratio (Petrol:2 Stroke Oil) 40:1 Total Weight (kgs) N.W 11.0 - G.W 13.0 Brushcutter Line Trimmer Pruner... - Page 7 COMPONENTS 1. D-Handle 2. Harness Eyelet 3. Ignition Switch 4. Throttle Cable 5. Throttle Lever 6. Safety Lever 7. Driveshaft 8. Hand Wheel & Coupler 9. Exhaust 10. Recoil Starter 11. Fuel Tank & Cap 12. Primer Bulb 13. Choke Lever 14.
-
Page 8: Hedge Trimmer
INSTRUCTION MANUAL ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the lawnmower contact us: Tel: 01793 333212 - Mon – Fri 8.30am – 5.00pm (excl. Bank Holidays) Email: customerservice@webblawnmowers.co.uk MACHINE FITTING D-HANDLE... - Page 9 LINE TRIMMER & BRUSHCUTTER FITTING GUARD/SHIELD 1. Install the safety cover onto the shaft with the safety cover bracket. 2. Align the four screws of the cover with the safety cover bracket 3. Tighten the screws after setting the safety cover bracket at the appropriate position. LINE TRIMMER FITTING NYLON LINE CUTTING HEAD 1.
-
Page 10: Working Plan
INSTRUCTION MANUAL OPERATION DANGER All Hedge Trimmers can throw debris, metal or small objects as well as material being cut. Do not allow anyone to enter the operating DANGER ZONE with you. The danger zone is an area 15 metres in radius Insist that persons in the RISK ZONE beyond the danger zone wear eye protection from thrown objects. - Page 11 LINE TRIMMER Always keep a firm grip with both hands during operation The machine should be held at a comfortable position, with the trigger handle at hip height. Adjust the harness to suit. Maintain a firm footing in case the machine hits a solid object & kicks back Cut tall grass from the top down to prevent grass wrapping around the shaft housing &...
- Page 12 INSTRUCTION MANUAL BRUSHCUTTER Always keep a firm grip with both hands during operation The machine should be held at a comfortable position, with the trigger handle at hip height. Adjust the harness to suit. Maintain a firm footing in case the machine hits a solid object & kicks back. Do not use the metal blade near fencing, posts, buildings or other immoveable objects –...
- Page 13 PRUNER WARNING The Pruner is supplied with a low KICKBACK chain, however sometimes kick back can occur, so always hold the unit firmly in two hands. The Kickback danger zone on your Pruner is the upper part of the nose of the guide bar.
- Page 14 INSTRUCTION MANUAL HEDGECUTTER To adjust the angle of the Hedgecutter, loosen the locking lever; rotate the Hedgecutter head to the desired angle. Tighten the locking lever to the adjuster; ensuring blade is secure, before operating. TIGHTENED LOOSENED Always have a firm footing and use two hands to hold the machine It is advisable to cut a hedge from the bottom up, sweeping the cutter head in an arc as you move along the hedge.
- Page 15 FUEL & OIL MIXTURE Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking. Allow the engine to cool for more than 2 minutes, before re-fueling. Never fuel the machine with the engine running.
- Page 16 INSTRUCTION MANUAL ENGINE STARTING & STOPPING PROCEDURE STARTING A COLD ENGINE 1. Place the machine onto a flat, firm surface. 2. Keep the cutting head off of the ground and clear o f any surrounding objects 3. Move the stop switch to "START" position 4.
- Page 17 MAINTENANCE, CLEANING & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. MAINTENANCE Before each use, check all nuts & bolts to be sure they are sufficiently tightened. We recommend only manufacturer original parts are used when maintaining this machine.
- Page 18 INSTRUCTION MANUAL LINE TRIMMER REPLACING YOUR NYLON LINE 1. Cut 3 metres of 2.5mm diameter Nylon Line. 2. Align the arrows on the feed/bump knob with the eyelets. 3. Feed the line into the feed pipe (supplied). 4. Feed the feed pipe & line in through the first eyelet and out of the second eyelet. 5.
- Page 19 PRUNER CHAIN TENSION Periodically during use, check the tension of the chain. It is important to maintain proper chain tension. Incorrect chain tension can cause the guide bar to wear and the chain to come off. To check the chain tension: Switch the engine off...
- Page 20 INSTRUCTION MANUAL GUIDE BAR Turn the Guide Bar over, each me you sharpen or replace the chain. This will help prevent one sided wear, especially at the nose & underside of the bar. Regularly clean the bar, especially the chain groove. CHAIN SPROCKET every second chain is replaced, the drive sprocket should also be replaced.
-
Page 21: Trouble Shooting
TROUBLE SHOOTING Failures such as a difficulty in starting the engine, irregularity in functions and abnormality in performance can normally be prevented if careful attention is paid to all operating instructions & maintenance procedures. Should the engine not function properly, check the following? That the fuel system is in good condition and fuel is flowing to the engine. - Page 22 PARTS DIAGRAM - WEMC26 Engine...
- Page 23 PARTS LIST - WEMC26 Engine Item No. Part No. Description Item No. Part No. Description WE03010110121 Screw M5x12 WE70070030026 Cover WE70030030853 Engine Cowling WE70030030164 Guide Screw GB/T9074.4 WE03020020055 WE03040020012 Washer GB/T97.1 4 M4x12 WE03010010062 Screw M5x20 WE02070010048 Spacer WE70070130069 Cylinder...
- Page 24 PARTS DIAGRAM - WEMC26 Shaft & Sundries PARTS LIST - WEMC26 Shaft & Sundries Item Part No Webb Description Item Part No Webb Description WE02010010019 Shaft 24x1.5x750 WE70030160031 Handle Clamp WE02020150010 Washer WE61270040018 Trigger Assembly WE02040010005 Oil Bearing WE03010010029 Screw M5x14...
- Page 25 PARTS DIAGRAM - WEMC26 Brushcutter PARTS LIST - WEMC26 Brushcutter Item No Webb Part No Webb Description Item No Webb Part No Webb Description WE61270030106 Gearhead Assembly 1-16 WE03090010019 Bearing 6201-2RS WE03120020006 Retaining Ring 24 1-17 WE03120020001 Retaining Ring 32...
- Page 26 PARTS DIAGRAM - WEMC26 Hedgecutter PARTS LIST - WEMC26 Hedgecutter Item No Webb Part No Webb Description Item No Webb Part No Webb Description WE03030060007 Nut M5 WE03050010012 Washer 6 WE02020160100 Frame WE03040050050 Washer 6 WE03010110043 Grease Nipple WE03120020007 Retaining Ring 22...
- Page 27 PARTS DIAGRAM - WEMC26 Line Trimmer PARTS LIST - WEMC26 Line Trimmer Item No Webb Part No Webb Description Item No Webb Part No Webb Description WE61270030043 Gearhead Assembly WE02020150010 Locked Washer WE03120020002 Retaining Ring 26 WE02080020006 Rubber WE03120010001 Retaining Ring 10...
- Page 28 PARTS DIAGRAM - WEMC26 Pruner PARTS LIST - WEMC26 Pruner Item No Handy Part No. Webb Description Item No Handy Part No. Webb Description WE03020020032 Screw M4X12 WE70030030334 Gear Case cover WE70030060064 Case Cover WE03010010010 Screw M5X25 WE02070010130 Gasket WE03010010008...
-
Page 29: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Petrol Multicutter (incl. Pruner, Hedgecutter, Line Trimmer, Brushcutter Attachments) Model(s): WEMC26 Type/Serial No. As per rating label on machine Complies with the following directives:... - Page 30 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the 2 year conditional manufacturer domestic warranty*. * Commercial/Professional & Hire users receive a 90 day warranty Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
- Page 31 SERVICE BOOK 1. Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser, is not transferable and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 32 It is the owner’s responsibility to ensure that their Webb machine is maintained at specific intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
- Page 33 SERVICE BOOK Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
- Page 34 INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
-
Page 35: Warranty Registration
& services we provide, including information that we believe is relevant to your and/or your machine. We value your trust by giving us this information about yourself and we are committed to protecting your privacy. From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, offers, technical improvements or just opinions, which may be used for marketing, research or analysis purposes. - Page 36 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
