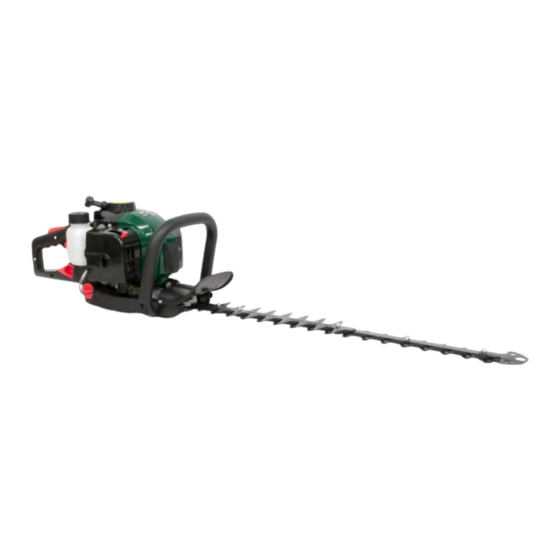

26cc double bladed petrol hedge cutter
Hide thumbs Also See for WEHC600:

Advertisement

v
26cc Double Bladed
Petrol Hedge Cutter
WEHC600
193870001
en - Original Instructions
Sales & Support: 01793 333212
Before use please read & understand this manual; paying particular attention to the safety instructions.
The manufacturer reserves the right to change the product specifi cation and livery according to continues product improvements.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WEHC600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Webb WEHC600

  • Page 1 26cc Double Bladed Petrol Hedge Cutter WEHC600 193870001 en - Original Instructions Sales & Support: 01793 333212 Before use please read & understand this manual; paying particular attention to the safety instructions. The manufacturer reserves the right to change the product specifi cation and livery according to continues product improvements.
  • Page 2 INSTRUCTION MANUAL 19 February 19 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
  • Page 3: Table Of Contents

    CONTENTS SPECIFICATIONS SAFETY INSTRUCTIONS COMPONENTS ASSEMBLY OPERATION MAINTENANCE, CLEANING & STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST DECLARATION OF CONFORMITY WARRANTY...
  • Page 4: Safety Instructions

    INSTRUCTION MANUAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. Read &...
  • Page 5 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times.
  • Page 6 INSTRUCTION MANUAL SPECIFICATIONS Model WEHC600 Product Number 193870001 Engine 25.4cc Rated engine Power 0.75kW/7500 min Idle Speed 2800 r/min Carburetor Diaphragm Fuel Tank Capacity 0.65L Fuel Ratio 40:1 (Unleaded Petrol:2 Stroke Synthetic Oil) Overall Size L1070 x W240 x H224mm...
  • Page 7: Components

    COMPONENTS 1. Cutting Blade 2. Throttle Lever 3. Ignition Switch 4. Safety Lever 5. Air Filter Cover 6. Handle 7. Guard 8. Fuel Tank 9. Recoil Starter 10. Handle Lock...
  • Page 8: Assembly

    INSTRUCTION MANUAL ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the machine, contact us: Tel: 01793 333212 - Mon – Fri 8.00am – 5.30pm (excl. Bank Holidays) Email: customerservice@webblawnmowers.co.uk No assembly is necessary with this machine from the carton.
  • Page 9 SWIVELED HANDLE To reduce fatigue when trimming hedges, the handle on your WEHC600 Hedgecutter can be swiveled 90 degrees to the left or right. 1. Free the handle, by pulling the locking lever. 2. Turn the handle until the locking lever clicks into place.
  • Page 10 INSTRUCTION MANUAL FUEL & OIL MIXTURE Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking. Allow the engine to cool for more than 3 minutes, before re-fueling. Never fuel the machine with the engine running.
  • Page 11 FUELING THE MACHINE Place the machine onto a solid flat surface, ensuring the engine is not running. Unscrew the fuel cap slowly and fill the fuel tank with your fuel mixture to a maximum of 80% capacity. This will allow the fuel tank to expand. Fasten the fuel cap tightly, being careful not to cross-thread. This will also prevent loosening through vibration during use.
  • Page 12: Maintenance, Cleaning & Storage

    INSTRUCTION MANUAL MAINTENANCE, CLEANING & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. MAINTENANCE • Before each use, check all nuts & bolts to be sure they are sufficiently tightened. •...
  • Page 13 CLEANING Keep your machine clean. Thoroughly clean the machine at the end of each use, paying particular attention to cuttings in and around the guard and cutting tool. • Clean any resin and plant residue from the blades using cleaning agent before & after using the machine. •...
  • Page 14: Trouble Shooting

    INSTRUCTION MANUAL TROUBLE SHOOTING Failures such as a difficulty in starting the engine, irregularity in functions and abnormality in performance can normally be prevented if careful attention is paid to all operating instructions and maintenance procedures. Should the engine not function properly, check the following? •...
  • Page 15 Notes...
  • Page 16 PARTS DIAGRAM - WEHC600 ENGINE...
  • Page 17 PARTS LIST - WEHC600 ENGINE Item Item Webb Part No Webb Description Webb Part No Webb Description WE03020010013 Screw GB9074.3 WE03040010007 Washer GB96 WE03040050021 Washer WE02070010110 Crankcase Gasket WE70030030128 Engine Housing WE03060010002 Locating Pin GB119 WE02070010049 Spacer WE70070050020 Front Crankcase...
  • Page 18 PARTS DIAGRAM - WEHC600 MACHINE...
  • Page 19 PARTS LIST - WEHC600 MACHINE Item No Webb Part No Webb Description Item No Webb Part No Webb Description WE02020070064 Blade Guard WE03020020033 Screw WE02020070066 Blade Retaining Plate WE03010040010 Tapping Screw WE02020070063 Blade WE70030070251 Right Handle WE02020160144 Spacer WE70030160014 Bracket...
  • Page 20 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Petrol Hedgecutter Model(s): WEHC600 Product No.: 193870001 Type/Serial No. As per rating label on machine Engine Displacement: 25.4cm Rated Engine Power: 0,75kW/7500min Idle Speed: 2800 r/min...
  • Page 21 Notes...
  • Page 22 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the conditional manufacturer domestic warranty*. Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
  • Page 23 Webb (excludes Electric Handheld) & Webb Pro, 2 year conditional warranty from the original date of sale to the fi rst domestic user. Webb Electric Handheld & Dynamic, Legacy & Heritage 1 year warranty from the original date of sale to the fi rst domestic user.
  • Page 24: Warranty

    It is the owner’s responsibility to ensure that their Webb machine is maintained at specifi c intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
  • Page 25 Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
  • Page 26 Service Record INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
  • Page 27 Email From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, off ers or just opinions, which may be used for marketing, research or analysis purposes.
  • Page 28 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
