25cm Line Trimmer

with 20V 2Ah Lithium-Ion Battery & Charger

WEV20LT

1938200002

en - Original Instructions

ASSEMBLY REQUIRED

Minimum Two Persons

Save these instructions

Sales & Support: 01793 333212

Before use please read & understand this manual; paying particular attention to the safety instructions before use.

Incorrect use of the product could put the operator or machine in danger.

Whilst every eﬀ ort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement

determines the right to make modiﬁ cations without prior warning.

Images are used for illustration purposes only.

Need help?

Do you have a question about the WEV20LT and is the answer not in the manual?

Questions and answers

Summary of Contents for Webb WEV20LT

Page 1 25cm Line Trimmer with 20V 2Ah Lithium-Ion Battery & Charger WEV20LT 1938200002 en - Original Instructions ASSEMBLY REQUIRED Minimum Two Persons Save these instructions Sales & Support: 01793 333212 Before use please read & understand this manual; paying particular attention to the safety instructions before use.
Page 2 INSTRUCTION MANUAL 21 October 20 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
Page 3 CONTENTS INTENDED USE GENERAL SAFETY INSTRUCTIONS SPECIFICATION KNOW YOUR MACHINE BATTERY CHARGING ASSEMBLY OPERATION CLEANING & MAINTENANCE STORAGE & TRANSPORTATION TROUBLE SHOOTING PARTS DIAGRAM & LIST DECLARATION OF CONFORMITY WARRANTY INTENDED USE The basic version of the equipment is a handheld lithium battery powered line trimmer, intended for private use, i.e.
Page 4 INSTRUCTION MANUAL GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product.
Page 5 GENERAL SAFETY RULES WARNING Before you put the machine into operation, you must read this instruction manual. When using this machine, observe the following safety instructions to remove the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters. Where applicable, follow the legal directives or regulations for the prevention of accidents in relation to the use of this machine.
Page 6 INSTRUCTION MANUAL 19. Stop the blades when moving to another work area. 20. If the machine starts to vibrate abnormally, stop the motor, and check immediately for the cause. Vibration is generally a warning of trouble. 21. Shut the motor off and wait until the blades come to a complete stop. Then remove the battery before cleaning the blades.
Page 7 & compromise safety!” 7. Do not change the motor’s settings. The motor has been set for the maximum safe operating speed. 8. Maintain or replace safety and instruction labels, as necessary. 9. Observe proper disposal laws and regulations. Improper disposal of fluids and materials can harm the environment.
Page 8 INSTRUCTION MANUAL RESIDUAL RISK Even when the product is used as described, it is still impossible to eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following: 1.
Page 9 Weight N.W 2.2kg Consistent with our policy of continuous improvement, WEBB reserves the right to change the design and configuration of any of its products without notice or obligation. Therefore, please treat the text and images in this manual for illustrative purposes only. They may in no case serve as a basis for any legal claim.

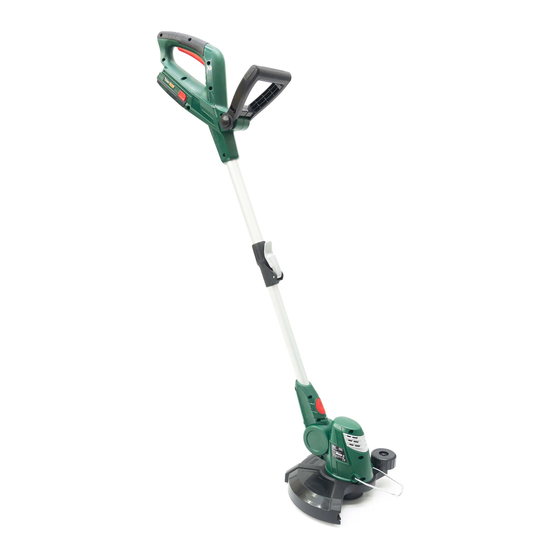

Page 10 INSTRUCTION MANUAL KNOW YOUR MACHINE 1. Front Handle 2. Height Adjuster 3. Head Rotating Adjuster 4. Plant Guard 5. Guard 6. Trigger 7. Lawn Edging Wheel 8. 20v 2Ah Battery 9. Head Angle Adjuster 10. Spool & Nylon 11. Safety Button 12.
Page 11 BATTERY CARE • There will be some charge present in the battery on delivery, but to ensure maximum running time, charge your battery for 4-hours before first use. If over a period the battery quickly runs down after a full 4-hour charging period, a replacement •...
Page 12 INSTRUCTION MANUAL CHARGING The battery must be charged for approximately 4 hours before first use. Only the original charger supplied with this machine or approved replacement to be used. Charge unit only in dry rooms. BATTERY CHARGER WARNING Risk of electric shock and short circuiting. Use approved and intact wall sockets. Make sure that the cable is not damaged.
Page 13 WINTER STORAGE • Fully charge for 4-hours before winter storage. • Re-charge the Battery every 3 to 4 months for a full 4-hour charging period to top up the battery during winter storage. Avoid extended storage without re-charge. • Store in a cool dry place. •...
Page 14 INSTRUCTION MANUAL ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents or operation of your machine, please call our Customer Service Team on 01793 333212 or email customerservice@webbgardenpower.co.uk Opening hours weekdays: February to October 8:30am - 5:30pm / November to January 8:30am - 5:00pm (Closed Bank Holidays) PROTECTIVE GUARD...
Page 15 PLANT GUARD Only follow the below action if the plant guard is not fitted to the machine. Align the plant guard with the two fixing holes on the front of the motor assembly. Prize apart the two prongs of the plant guard and slide them into the fixing holes.
Page 16 INSTRUCTION MANUAL OPERATION DANGER Risk of injury! The device may only be put into operation if there are no defects. If a part is defective it must be replaced before the device is used again. WARNING Risk of injury! Before starting work check the area and remove all objects which may be kicked up by the unit. Check to make sure there are no visible defects.
Page 17 SWITCHING ON AND OFF Ensure the battery is housed in the trimmer, with an audible click. Switching on: 1. Push in the safety button with your thumb. 2. Pull the On/Off trigger upwards. 3. Release safety button. Switching off: 1. Release the On/Off trigger. NYLON LINE Your trimmer uses 1.6mm diameter nylon line to cut grass and weeds quickly and easily.
Page 18 INSTRUCTION MANUAL LINE TRIMMING (STANDARD) LINE TRIMMING (SLOPES & UNDER OBSTACLES) Adjust the angle of the head up or down to ensure you have a clean and unobscured cutting angle. TRIMMING EDGES Press in and hold the locking button. Rotate the cutting head 180 degrees. Release the locking button. Guide the unit, as shown, slowly along the edge of the lawn, using the side wheel.
Page 19 CUTTING TIPS Only cut with the left (shown here as light grey) area of the cutting unit when the unit is being moved from right to left. In the right (dark grey) area, the threads rotate in your direction. This represents a high level of kickback risk and objects may be thrown in your direction by the rotation of the thread.
Page 20 INSTRUCTION MANUAL CLEANING & MAINTENANCE DANGER Prior to conducting maintenance or cleaning: Remove the battery from the machine. The trimmer continues to spin after being switched off! Always remove battery before performing any work on the trimmer! Note: Clean unit immediately after. Grass debris when dry is very hard and difficult to remove. CLEANING •...
Page 21 • Press the spool down GENTLY and rotate it until you feel it drop into place. (When in place, the spool will turn a few degrees left and right freely.) • Snap the spool cover back on, insert the battery and turn the tool on. In a few seconds you’ll hear the nylon line being cut automatically to the proper length.
Page 22 INSTRUCTION MANUAL PARTS DIAGRAM...
Page 23 PARTS LIST Item Webb Part No. Webb Description WE188-301063368A Left Handle WE188-301051100M Safety Button WE188-102020315 Switch WE188-301062665M ON/OFF Trigger WE143-103060183 Safety Button Spring WE188-102080685 Spring Line Assembly WE188-301063370 Battery Insert Assembly WE188-102080684 Internal Wiring Assembly WE188-301063369A Right Handle WE123-104030161 Self-Tapping Screw...
Page 24 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Lithium-ion Battery Line/Edge Trimmer Model(s): WEV20LT Product Number: 1938200002 Type/Serial No. As per rating label on machine Battery: DC 20V Max Protection: Class III Max.
Page 25 Notes...
Page 26 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the conditional manufacturer domestic warranty*. Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
Page 27 2. Period of Warranty - valid from 1 January 2020 Webb (excludes Dynamic, Legacy & Heritage), 2 year conditional warranty from the original date of sale to the ﬁ rst domestic user.
Page 28 It is the owner’s responsibility to ensure that their Webb machine is maintained at speciﬁ c intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
Page 29 Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
Page 30 Service Record INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
Page 31 Email From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, oﬀ ers or just opinions, which may be used for marketing, research or analysis purposes.
Page 32 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
