Altronix Trove T1SAK3F4 Installation Manual page 3

1. Fasten standoffs onto metal pems configuration (A) of backplane (Fig. 2, pg. 3).
2. Position Salto modules over corresponding standoffs and mount them utilizing pan head screws (provided) (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Salto Access Controller
CU42E0, CU4200 or CU4EB8

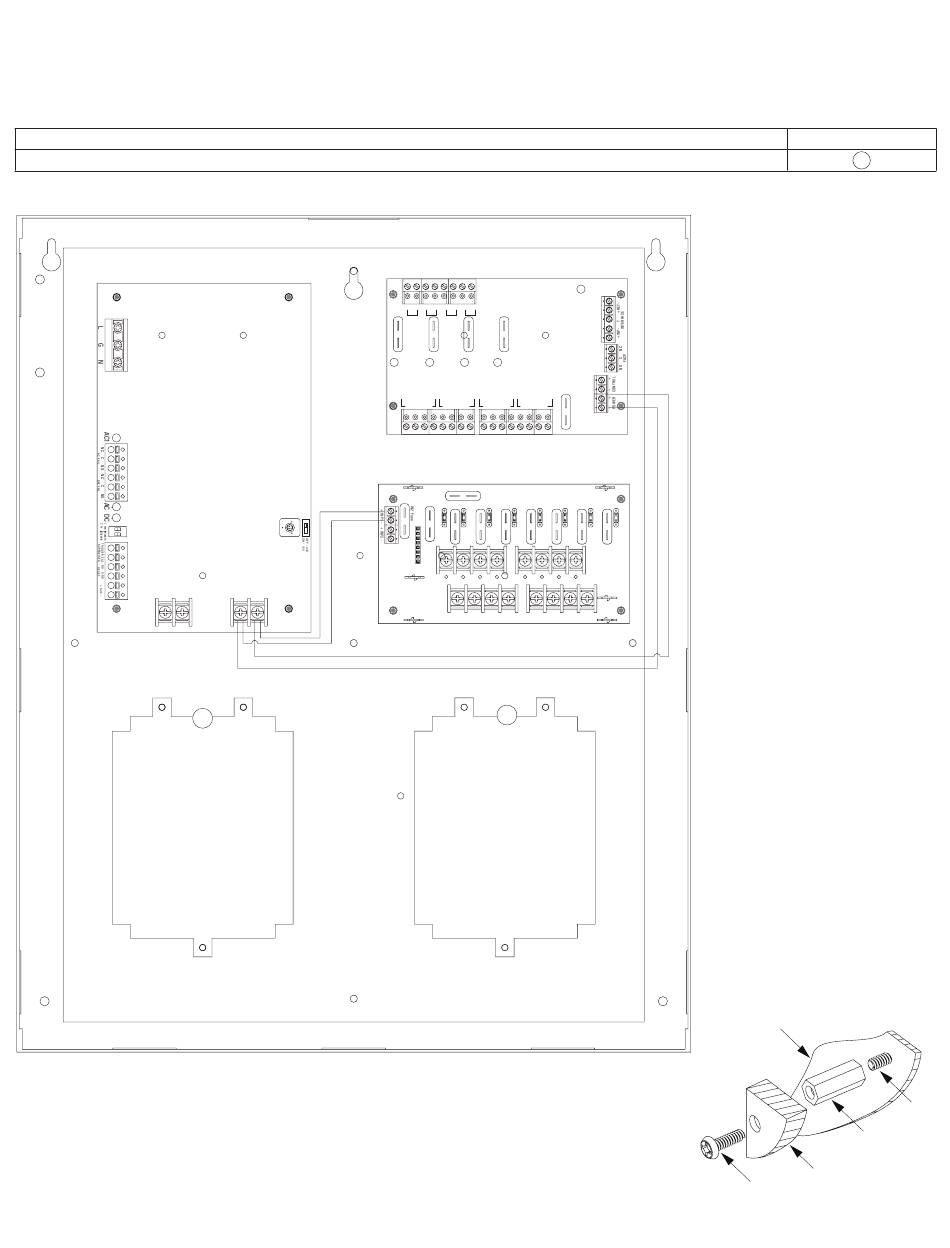

Fig. 2
Altronix
eFlow6NB
--- BAT +
Trove / SALTO Kits
T1SAK3F4: Configuration of Salto Modules:
Access Controller Position Chart for the Following Models:
ON
--- DC +
A
TRIGGER
INPUT
IN GND IN GND IN GND IN GND
1 2 3 4
Altronix
ACM4
LED1 LED2 LED3 LED4
MAIN
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
Altronix PDS8
DM1+ IN1 Fuse
Fuse1
Fuse2 Fuse3 Fuse4 Fuse5 Fuse6
P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7
Common(-)
N
DM2+ 1 2 3 4 5 6
Common Power Outputs (NEG)
Altronix VR6 mounted under PDS8
A
TRG
DM1+
Fuse7 Fuse8
P
OUT8
N
Common(-)
7 8 DM2+
Backplane
Pan Head
Screw
Pem Mounting
A
Fig. 2a
Pem
Standoff
HS4 Module
- 3 -
