ECtemp Next Plus HW
4 Installation Steps
User Guide can be downloaded from: heating.danfoss.com.
• Installation must be done by an authorised electrician.

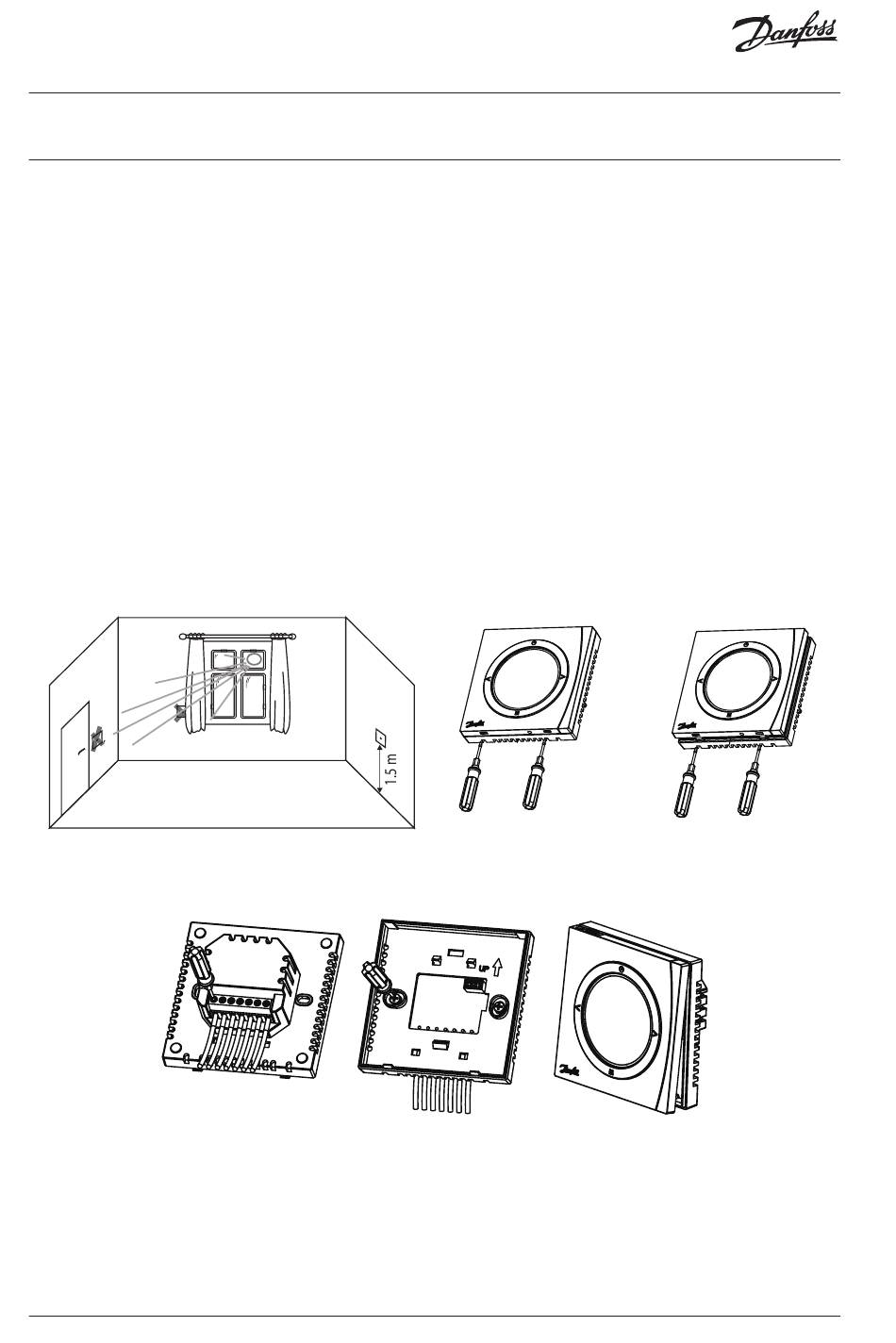

• The room thermostat should be installed at approx. 1,5 m
above floor and where the effects of sunlight, draught or
other heat sources (eg. TV's) are avoided, see fig. 1.
• First of all, carefully remove the cover, see fig. 2.
• Connect the wire before mounting the back plate to the
wall box using the enclosed screws. Then mount the
cover to the back plate, see fig 3.
Fig. 1
8 | © Danfoss | Produced by FEC | 2020.10
Fig. 3
Fig. 2
