ECtemp Next Plus HW
3
Verdrahtung
•

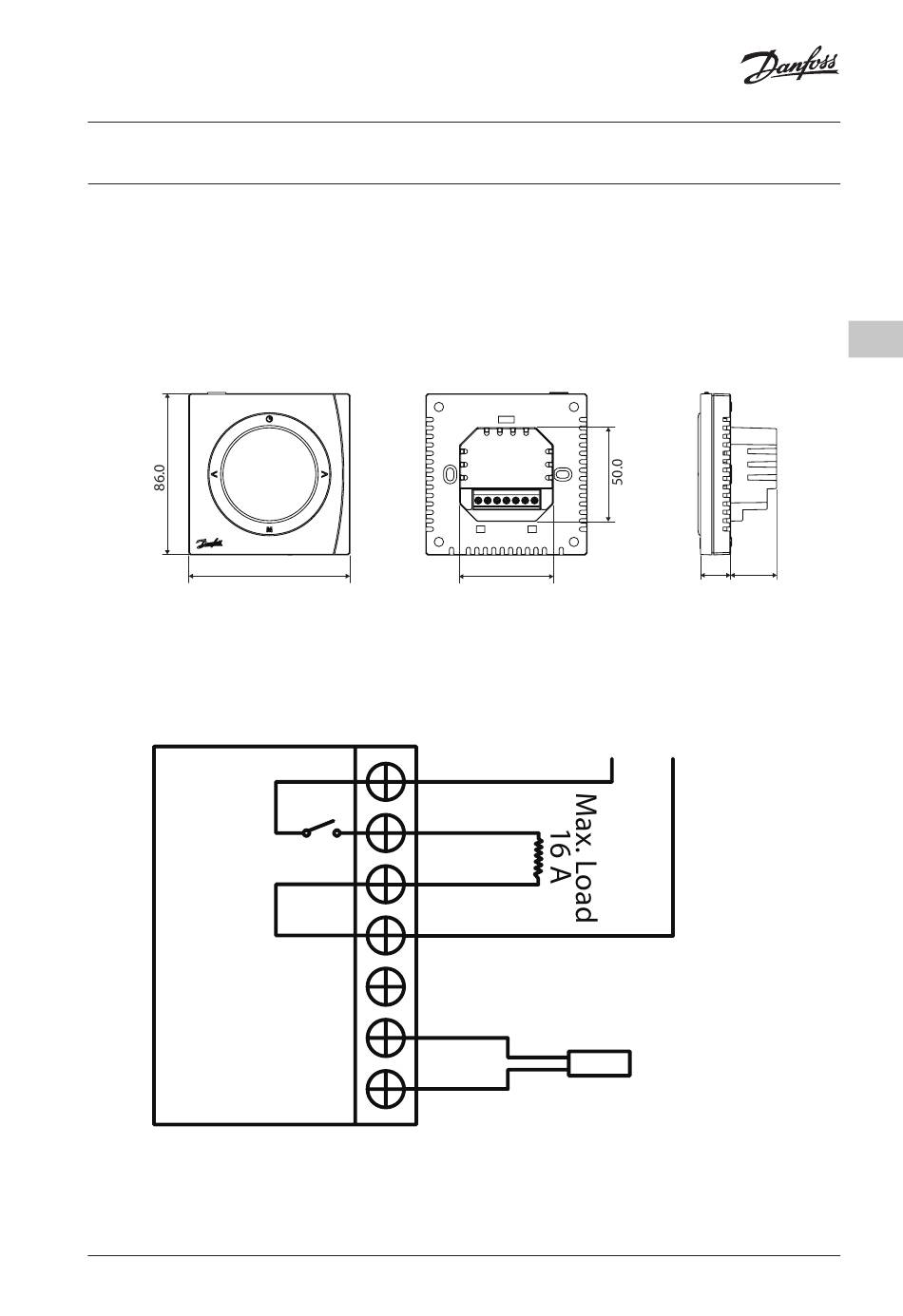

Abmessungen, siehe Abb. 4.
•
Schaltplan, siehe Abb. 5 (S1, S2: Bodenfühlerklemmen).
•
Schließen Sie die Verdrahtung ab, siehe Abb. 5.
86.0
© Danfoss | Produced by FEC | 2020.10
50.0
Abb. 4
85-250 Vac, 50/60 Hz
L
L(Load )
N(Load )
N
S1
S2
Abb. 5
13.0
24.5
L
N
AN347136888492-010101 | 19
DE
