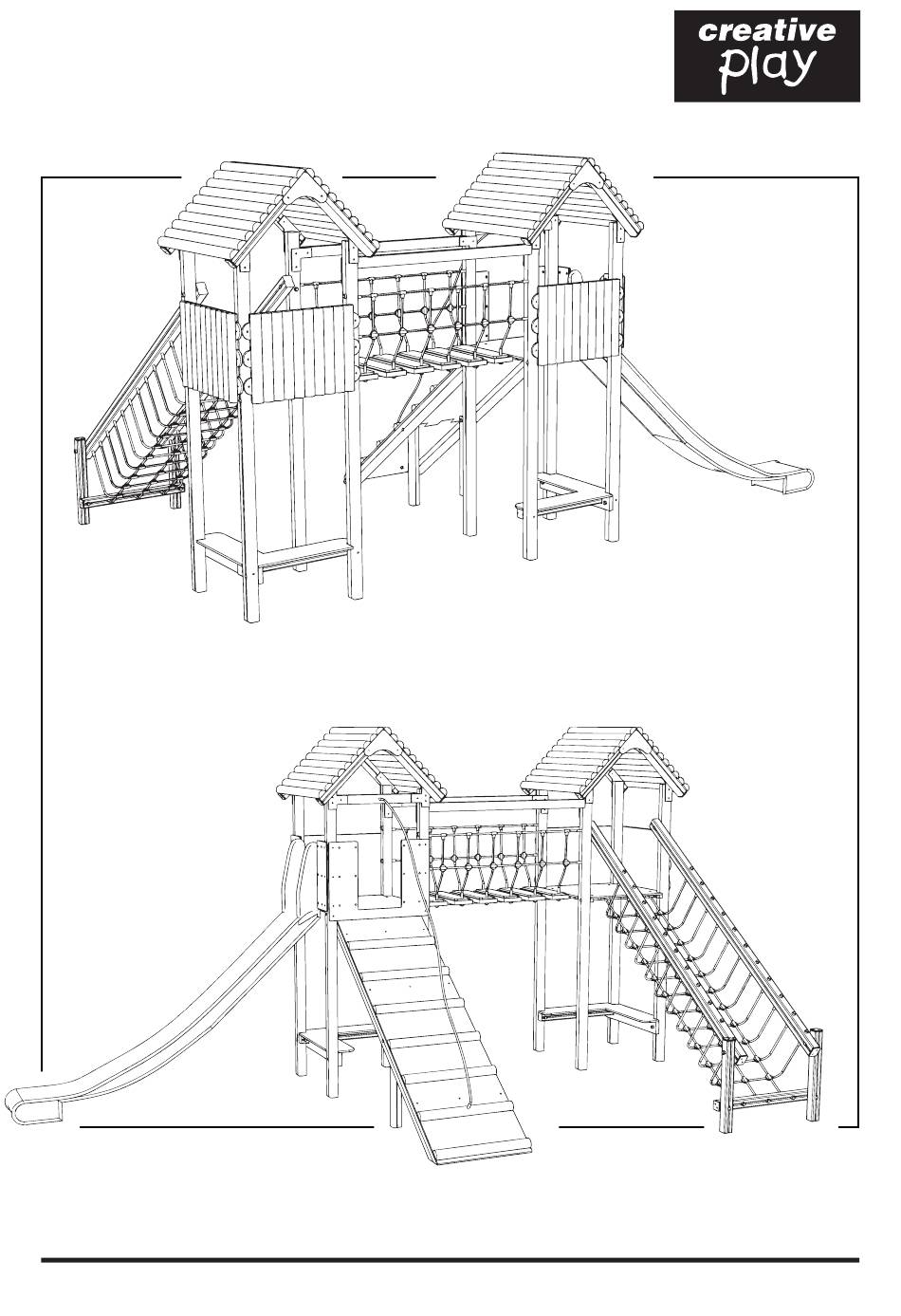

- Page 1 FORT LINCOLN Installation Instructions REF: ZM104 - FORT LINCOLN pg 1 of 17...
-
Page 2: Parts Required
PARTS required (2m Spiral SLIDE) (CLATTERBRIDGE 2.0) (RAMP ROPE ) HEXBOARD required (BOTTOM RAMP) (TOP RAMP) (90 SIDE) (120 SIDE) (120x90 CLATTERBRIDGE FLOOR) (LEFT SEAT) (RIGHT SEAT) REF: ZM104 - FORT LINCOLN pg 2 of 17... - Page 3 1920 CODE TYPE SIZE QTY ZM103k 120x90 3600 ZM103l 120x90 3600 ZM106-r1 ø100 ZM103q 120x90 ZM106-r2 ø100 ZM106-r3 ø100 1400 OTHER timber CODE TYPE SIZE QTY ZM103r 218x43 ZM103s 143x43 1145 REF: ZM104 - FORT LINCOLN pg 3 of 17...
-
Page 4: Tools Required
(M12 x 200 Square Cup HEX bolt) (end caps) (FM120 ‘Brass screws’) (M12 x 150 Square Cup HEX bolt) x360 (FM80 ‘Brass screws’) (7.5 x 50 ‘Brass screws’) (M12 ‘NYLOC’) TOOLS required REF: ZM104 - FORT LINCOLN pg 4 of 17... -
Page 5: Foundation Details
Foundation Details FIG.1 350 Concrete + 150 Soil 600 Concrete + 150 Soil Slide Clatterbridge 90 x 90 Ramp Ramp 90 x 90 REF: ZM104 - FORT LINCOLN pg 5 of 17... -
Page 6: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: ZM104 - FORT LINCOLN pg 6 of 17... - Page 7 ZM103b/c/d/e/f /g/h/iand install them including b Follow fundation details and using 64 x FM80 ‘Brass Screws’ NOTES: Attach one plate on every side, with staggered heights (8 POST = 32 PLATES) REF: ZM104 - FORT LINCOLN pg 7 of 17...
- Page 8 Using M12 - 8x 150mm square cup bolt / 8x NYLOCS / 8x COVERED END CAPS QTY x2 Attach the Timbers ZM103p to the timbers WO106c/e/g/i Using M12 - (4x 230mm) square cup bolt / 4x NYLOCS / 4x COVERED END CAP REF: ZM104 - FORT LINCOLN pg 8 of 17...
- Page 9 Attach the Timber ZM106am to the timbers WO106l/m/r/s Using M12 - (4x 150mm) square cup bolt / 4x NYLOCS / 4x COVERED END CAPS Attach the HEXBOARD to the timbers WO106ah/am Using 12x FM80 ‘Brass Screws’ REF: ZM104 - FORT LINCOLN pg 9 of 17...
- Page 10 Using (4x 200mm) M12 - square cup bolt / 4x NYLOCS / 4x Covered end cap NOTES: Uses standard ramp picture Attach the HALF ROUND to HEXBOARD RAMP and to the ZM103-r1 timbers ZM103l Using 30x FM80 ‘Brass Screws’ NOTES: Uses standard ramp picture SIDE VIEW REF: ZM104 - FORT LINCOLN pg 10 of 17...
- Page 11 Using (2x 200mm) M12 - square cup bolt / 2x NYLOCS / 2x Covered end cap Attach the Timber ZM103k to the timbers WO103b/d/m Using (4x 200mm) M12 - square cup bolt / 4x NYLOCS / 4x Covered end cap REF: ZM104 - FORT LINCOLN pg 11 of 17...
- Page 12 Using 12x NYLOCS / 12x Covered end cap THREAD BAR 212mm THREAD BAR (CLATTERBRIDGE ) Attach the the TIMBERS WO103j to WO103d/e/f/g TIMBERS Using 12x FM80 Brass Screws / 8x FM120 Brass Screws REF: ZM104 - FORT LINCOLN pg 12 of 17...
- Page 13 Installation Instructions Installation Instructions Attach the hexboard SIDE PANELS to the TIMBERS WO103b/c/e/g/i Using 18x FM80 Brass Screws Attach the HALF ROUND TIMBERS ZM106-r2 Using 60x 7.5 x 50 ‘Brass screws’ REF: ZM104 - FORT LINCOLN pg 13 of 17...
- Page 14 Installation Instructions Installation Instructions Attach the SLIDE and COVERS Using 19x FM80 Brass Screws / SLIDE FIXINGS Attach the TIMBER ZM104q to the TIMBERS ZM104f/h Using 12 x FM80 Brass Screws REF: ZM104 - FORT LINCOLN pg 14 of 17...
- Page 15 Installation Instructions Installation Instructions Attach the HALF ROUND to the TIMBER ZM101aa/ab ZM101-r1 Using 256x FM80 ‘Brass screws’ QTY x 3 Both Sides REF: ZM104 - FORT LINCOLN pg 15 of 17...
- Page 16 Using 2x NYLOCS / 2x Covered end cap DRILL HALF ROUND AND HEXBOARD *MAKE SURE YOU HAVE A SCRAP TIM- BER AGAINST THE UNDERSIDE OF THE HEXBOARD WHEN DRILLING (this is to ensure the hex board doesn’t ‘splinter’) REF: ZM104 - FORT LINCOLN pg 16 of 17...
-
Page 17: Additional Dimensions
Additional Dimensions REF: ZM104 - FORT LINCOLN pg 17 of 17...
