- Page 1 USER GUIDE & INSTALLATION INSTRUCTIONS 900 Deluxe Induction U110270-05a...
-
Page 3: Table Of Contents
Contents Before you start... Troubleshooting Personal safety Installation Electrical connection safety Dear Installer Peculiar smells Safety Requirements and Regulations Ventilation Provision of Ventilation Maintenance Location of Cooker Induction care Positioning the Cooker Oven care Moving the Cooker Oven Shelves (dependant on model) Fitting the Stability Bracket Hob care Repositioning the Cooker Following... -
Page 5: Before You Start
Before you start... CAUTION: Your cooker should give you many years of A long term cooking process • trouble-free cooking if installed and operated has to be supervised from time to time. correctly. It is important that you read this A short term cooking process has to be section before you start. - Page 6 WARNING: THE APPLIANCE MUST BE Fig. 1.1 EARTHED. Note: The cooker must be connected to the correct electrical supply as stated on the voltage label on the cooker, through a suitable cooker control unit incorporating a double- pole switch, having a contact separation of at 10 mm²...
-
Page 7: Peculiar Smells
Failure to install the appliance correctly approved spare parts should be used. It • could invalidate any warranty or liability is recommended that this appliance is claims and lead to prosecution. serviced annually. DO NOT install the appliance on a WARNING •... -
Page 8: Induction Care
NEVER leave the hotplate unattended If flammable materials are stored in the • • at high heat settings. Pans boiling over drawer, oven(s) or grill(s) it may explode can cause smoking, and greasy spills may and result in fire or property damage. catch on fire. - Page 9 change in temperature. Fig. 1.3 Only certain types of stainless steel, • enamelled steel or cast iron cookware with enamelled bases are suitable for induction hob cooking. Take care NOT to scratch the surface when • placing cookware on the glass panel. Fig.
-
Page 10: Oven Care
DO NOT place anything between the • Fig. 1.8 base of the pan and the hob surface (e.g. asbestos mats, aluminium foil, wok stand). Take care NOT to place metallic objects • ArtNo.324-0001 Steam burst such as knives, forks, spoons and lids on the hob surface since they can get hot. -
Page 11: Oven Shelves (Dependant On Model)
Accidental damage may cause the door Hob care • glass panel to fracture. NEVER allow anyone to climb or stand on • the hob. Keep oven vent ducts unobstructed. • DO NOT use the hob surface as a cutting DO NOT use harsh abrasive cleaners or •... -
Page 12: Cooling Fan
DO NOT put the griddle plate in a Cooling fan • dishwasher. This appliance may have a cooling fan. When the grill or oven is in operation the fan will run NEVER use caustic or abrasive cleaners as • to cool the fascia and control knobs. these will damage the surface. -
Page 13: Overview

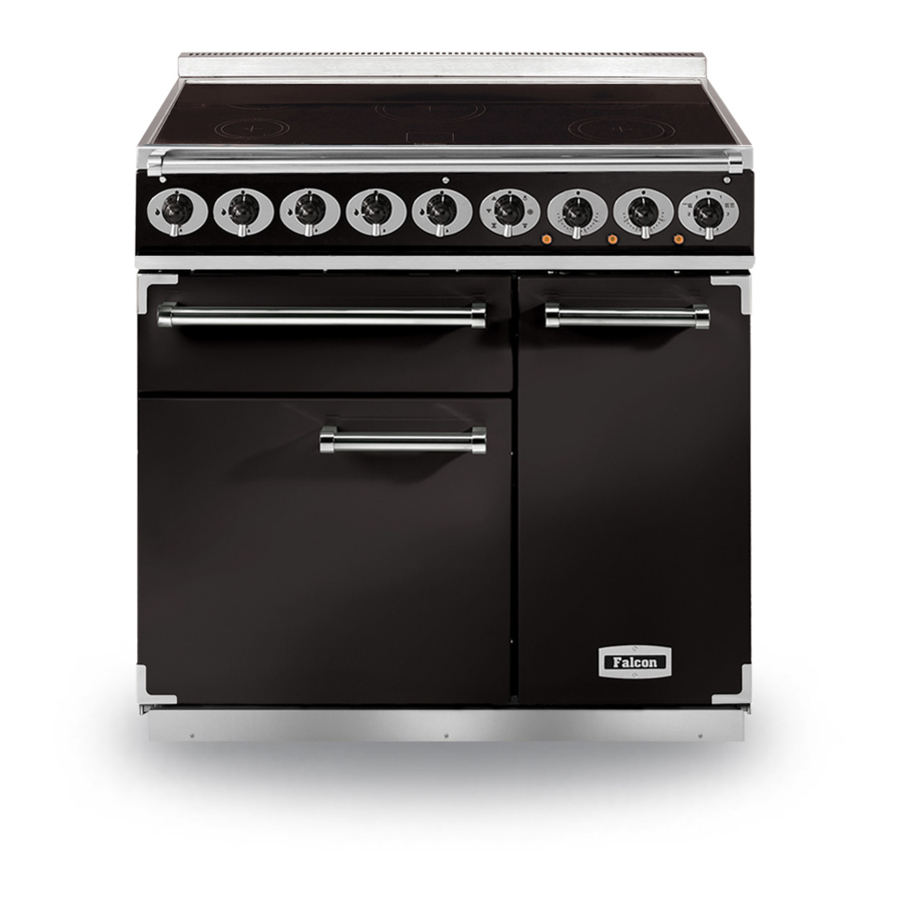

Overview Fig. 2.1 The Falcon induction cooker (Fig. 2.1) has the following Fig. 2.2 features: A. 5 induction cooking zones B. A control panel C. A glide-out grill D. Main multi-function oven E. Tall fan oven The Hob Use only pans that are suitable for induction hobs. We recommend stainless steel, enamelled steel pans or cast iron pans with enamelled bases. - Page 14 Never use a round-bottomed wok, even with a stand. Fig. 2.3 The very best pans have bases that are very slightly curved up when cold (Fig. 2.3). If you hold a ruler across the bottom you will see a small gap in the middle. When they heat up the metal expands and lies flat on the cooking surface.
- Page 15 Automatic Heat-up, A Automatic heat-up time at Power level 100% (min:sec) This function is available on all of the cooking areas. It 0:48 allows rapid heating up of the element to bring the selected cooking zone up to temperature. Once the zone is at the 2:24 required cooking temperature the power level will reduce 3:50...
- Page 16 The maximum times for all other power levels are shown in Table 2.3. Maximum Operating Time Power Level Power Boost Setting, P 2 hours L1 and L2 6 hours All of the induction cooking zones have Power Boost 6 hours available, activated by turning the control knob clockwise until [P ] is shown on the hob control display.
- Page 17 The Glide-out Grill™ (Fig. 2.9) Fig. 2.9 WARNING: When the trivet has been removed from the grill pan, please ensure that the grill pan and cradle are fully returned into the grill chamber. The grill pan door MUST remain open. Accessible parts may be hot when the broiler is in use.
- Page 18 Defrost Fan Assisted Oven This function operates the fan to circulate cold air This function operates the fan, circulating air heated only. Make sure the temperature control is at 0°C and by the elements at the top and the base of the oven. that no heat is applied.
-
Page 19: Operating The Oven
Operating the Oven Fig. 2.10 The multi-function oven has two controls: a function selector and a temperature setting knob (Fig. 2.10). Turn the function selector control to a cooking function. This is the fan oven setting (Fig. 2.11). Turn the oven temperature knob to the temperature you ArtNo.061-0001 - 90 induction - 900S MF oven controls need. -
Page 20: Using The Glide-Out Grill
Using the Glide-out Grill™ DocAUS.020-0004 - Overview - 110DF - Elan Fig. 3.2 Fig. 3.1 Nearest to the element Middle High Middle Low Furthest from the element Four grill height positions refer to Fig. 3.5 Fig. 3.4 Fig. 3.3 To switch on both elements To switch on the right half element Four grill height positions Fig. -
Page 21: Cooking Tips
Cooking tips Cooking with a multifunction oven General oven tips Remember: not all modes are suitable for all food types. The The wire shelves should always be pushed firmly to the back oven cooking times given are intended for a guide only. of the oven. -
Page 22: Cooking Table
Cooking table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. -
Page 23: Cleaning Your Cooker
Cleaning Your Cooker Isolate the electricity supply before carrying out any major Fig. 6.1 cleaning. Allow the cooker to cool. Never use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. Do not mix different cleaning products – they may react together with hazardous results. -
Page 24: Glide-Out Grill
Glide-out Grill Fig. 6.2 Before you remove any of the grill parts for cleaning, make sure that they are cool, or use oven gloves. Wash the grill pan and trivet washed in hot soapy water. Alternatively, wash the grill pan in a dishwasher. After grilling meats or any foods that soil, leave to soak for a few minutes in the sink immediately after use. -
Page 25: Control Panel And Oven Doors
Control Panel and Oven Doors Fig. 6.6 The control panel and control knobs should only be cleaned with a soft cloth wrung out in clean hot soapy water – but take care that no surplus water seeps into the appliance. Wipe with a clean dampened cloth then polish with a dry cloth. -
Page 26: Cleaning Table
Cleaning Table Cleaners listed (Table 6.1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 27: Troubleshooting
Troubleshooting DocNo.050-0001 - Troubleshooting - Induction GENERIC Interference with and repairs to the hob MUST NOT certain conditions, the cooling fan may remain active when be carried out by unqualified persons. Do not try the grill or oven(s) are switched off. This is normal and the fan to repair the hob as this may result in injury and will switch off automatically. - Page 28 The oven light is not working Fig. 7.1 The bulb has probably blown. You can buy a replacement bulb (which is not covered under the guarantee) from most electrical stores. Depending on your bulb type, ask for an Edison screw fitting 15 W 230 V lamp, FOR OVENS.
-
Page 29: Installation
INSTALLATION Check the appliance is electrically safe when you have finished. Installation Dear Installer Location of Cooker Before you start your installation, please complete the details The cooker may be installed in a kitchen/kitchen diner but NOT in a room containing a bath or shower. below, so that, if your customer has a problem relating to your installation, they will be able to contact you easily. -
Page 30: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe when you have finished. Positioning the Cooker Fig. 8.1 Fig. 8.1 and Fig. 8.2 show the minimum recommended 75 mm 75 mm distance from the cooker to nearby surfaces. 800 mm The cooker should not be placed on a base. Above hotplate surround should be level with, or above, any adjacent work surface. -
Page 31: Fitting The Stability Bracket
INSTALLATION Check the appliance is electrically safe when you have finished. Lowering the Two Rear Rollers Fig. 8.5 To adjust the height of the rear of the cooker, first fit a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig. -
Page 32: Electrical Connection
INSTALLATION Check the appliance is electrically safe when you have finished. Electrical Connection Current Operated Earth Leakage Breakers The combined use of your cooker and other domestic The cooker must be installed by a qualified electrician, in appliances may cause nuisance tripping, so we recommend accordance with all relevant British Standards/Codes of that the cooker is protected on an individual RCD (Residual Practice (in particular BS 7671), or with the relevant national... -
Page 33: Circuit Diagrams
Circuit Diagrams Right Rear Left Rear Right Front Left Front Centre Interface board Hob Display Induction unit Code Colour 6 way connector Green 6 way connector Blue Brown... - Page 34 Oven P095199 P095199 (H6) The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Grill front switch Multi-function oven fan Blue Grill control Cooling fan Brown Grill left-hand element Right-hand oven front switch Black...
-
Page 35: 10. Technical Data
10. Technical Data INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATion: Cooker back, serial number repeater badge below door opening. Countries of destination: GB, IE, FR, DE, NL, SE, BE, AT, CH. Connections Electric 230 / 400 V 50 Hz Dimensions Total height Min 912 mm... - Page 36 660 DEPTH INCLUDING HANDLES 600 DEPTH EXCLUDING HANDLES...
- Page 37 Hotplate Efficiency Data Brand Falcon Model Identification Deluxe Size Type Induction Type of Hob Induction Number of electric zones Zone 1 - Ø cm 15.5 Heating Technology Energy Consumption (ECElectric cooking) - Wh/kg Zone 2 - Ø cm 18.5 Heating Technology Energy Consumption (ECElectric cooking) - Wh/kg Zone 3 - Ø...
- Page 38 Oven Data Brand Falcon Model identification 900 Induction Type of oven Electric Mass Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Multifunction Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional kWh / cycle 0.96...
-
Page 39: 11. Warranty/After Sales Service
English 11. Warranty/After Sales Service If consultation or technical assistance is needed, please Notes provide the local authorised service agent with the purchase If your appliance is outside the 3 year warranty period, our invoice and the product code/serial number. service provider may charge for this visit. - Page 40 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. www.falconworld.com...
