OC-G-5646-2-ET OLED Lighting
Controllers
Issue 003
User manual
www.gardasoft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OC-G-5646-2-ET and is the answer not in the manual?

Questions and answers

Related Manuals for GARDASOFT OC-G-5646-2-ET

Summary of Contents for GARDASOFT OC-G-5646-2-ET

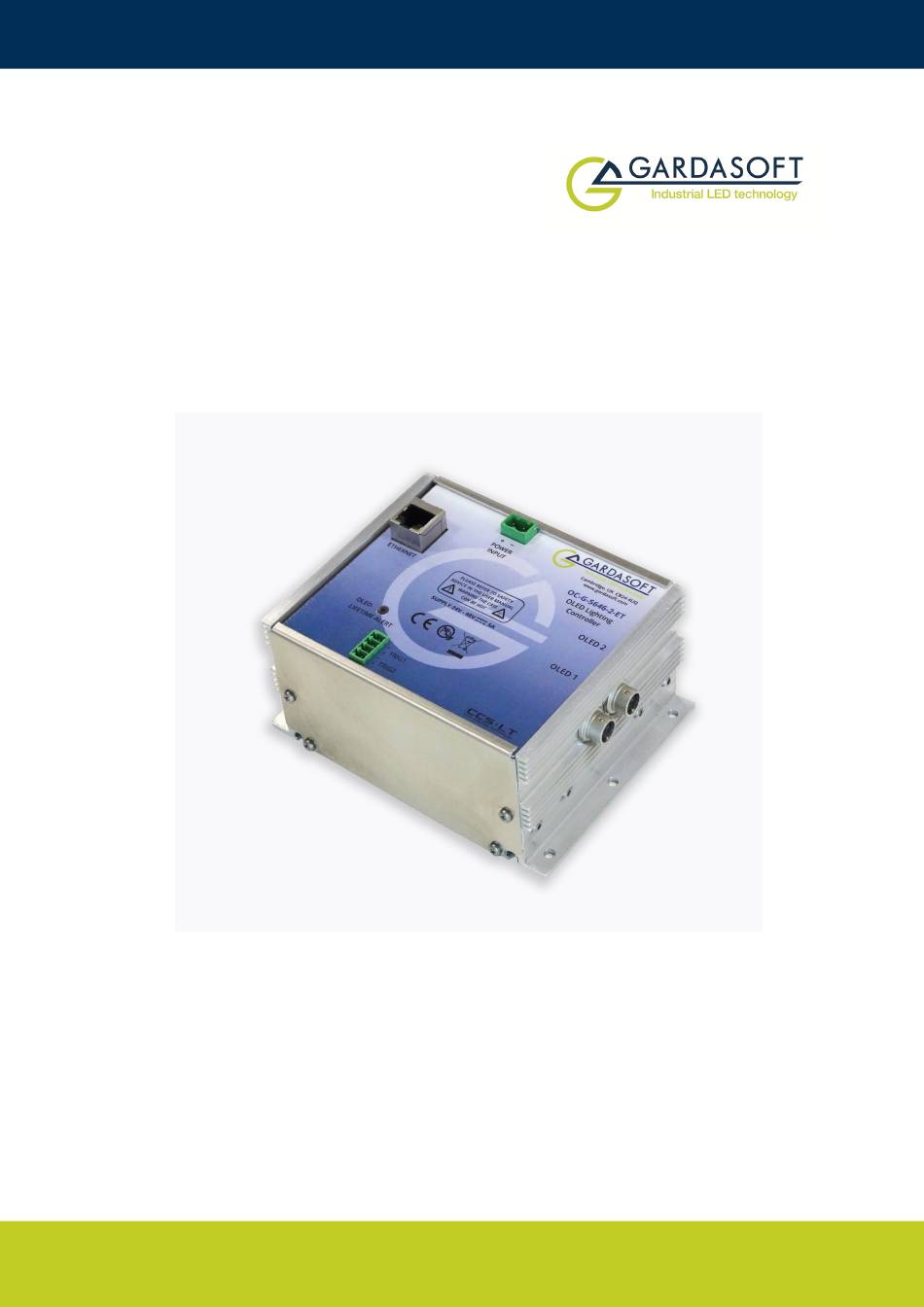

  • Page 1 OC-G-5646-2-ET OLED Lighting Controllers Issue 003 User manual www.gardasoft.com...
  • Page 2 Deliberate acts of endangerment and vandalism are not covered by this document and must be considered by the installer. While care has been taken in the preparation of this document Gardasoft Vision Ltd will not accept any liability for consequential loss of any kind except those required by law.

  • Page 3: Table Of Contents

    OC-G-5646-2-ET OLED Lighting Controllers -User Manual Contents Getting started Summary of features Safety Heat Electrical General Installation guidance (disclaimer) Sicherheit Wärme Elektrik Allgemein Installationsanleitung (Haftungsausschluss) Sécurité Chaleur Électricité Généralités Guide d'installation (clause de non-responsabilité) Mounting the OC-G-5646-2-ET Environmental considerations Connections...
  • Page 4 OC-G-5646-2-ET OLED Lighting Controllers -User Manual 10.2.2 Lighting channel commands 10.2.3 Command summary Reference information 11.1 Specification 11.2 Restrictions 11.3 Error codes 11.4 Fatal error codes 11.5 Event codes...

  • Page 5: Getting Started

    OC-G-5646-2-ET and connect the OC-G-5646-2-ET up to a power supply as described in Section 6, Connections. Set up the OC-G-5646-2-ET for the desired operation as described in the configuration sections; Section 9, Webpage configuration , and Section 10, Command configuration.

  • Page 6: Safety

    Heat Ensure the OC-G-5646-2-ET is mounted correctly (see Section 5, Mounting the OC-G-5646-2-ET), and that you do not exceed any of the ratings for the unit (see Section 1.1, Specifications and ratings) At its maximum ratings, the OC-G-5646-2-ET’s enclosure can exceed 65°C which is sufficient to cause a burn if touched.
  • Page 7 OC-G-5646-2-ET OLED Lighting Controllers - User Manual The Power Supply Unit (PSU) used to energise the OC-G-5646-2-ET must provide double insulation/reinforced isolation from mains elec- tricity and protected against short circuits and overloads. We recom- mend using a PSU that limits its output current to the appropriate rating of the controller by design, by setting the current limit on the supply (if possible), or through over current protection.

  • Page 8: General

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual General The OC-G-5646-2-ET must not be used in an application where its failure could be a danger to personal health or damage to other equipment. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

  • Page 9: Sicherheit

    Wenn diese Symbole in der Anleitung auftauchen, enthält der Text Hinweise zu den zu ergreifenden Vorsichtsmaßnahmen. W ärme Stellen Sie sicher, dass der OC-G-5646-2-ET korrekt montiert ist (siehe Section 5, Mounting the OC-G-5646-2-ET) und dass Sie die Grenzwerte für das Gerät nicht überschreiten (siehe Section 11, Reference information).
  • Page 10 Trigger- oder andere Ports angeschlossen sind, müssen ebenfalls durch eine doppelte Isolierung/verstärkte Isolierung vom Stromnetz getrennt sein. Das Netzgerät, das zur Stromversorgung des OC-G-5646-2-ET dient, muss durch eine doppelte Isolierung/verstärkte Isolierung von der Stromversorgung getrennt sein und gegen Kurzschlüsse und Überlastungen geschützt sein.

  • Page 11: Allgemein

    Emissionen auf ein Niveau zu begrenzen, das den Empfang von Rundfunkübertragungen ermöglicht. Allgemein Das OC-G-5646-2-ET darf nicht in Anwendungen eingesetzt werden, bei denen es durch einen Ausfall des Geräts zu einer Gefahr für die Gesundheit von Personen oder zur Beschädigung anderer Geräte kommen könnte.

  • Page 12: Sécurité

    Lorsque ces symboles apparaissent dans le manuel, reportez-vous aux consignes pour connaître les précautions à prendre. Chaleur Veillez à ce que le OC-G-5646-2-ET soit monté correctement (voir Section 5, Mounting the OC-G-5646-2-ET) et à ne dépasser aucune valeur nominale pour l'unité (voir Section 11, Reference information).
  • Page 13 Le boîtier d'alimentation utilisé pour mettre sous tension le OC-G- 5646-2-ET doit fournir une isolation double/renforcée pour isoler le OC-G-5646-2-ET de l'alimentation secteur, et le protéger des courts- circuits et des surcharges. Nous recommandons d'utiliser un boîtier d'alimentation qui limite le courant de sortie de l'appareil à la valeur nominale appropriée du contrôleur, en réglant la limite de courant...

  • Page 14: Généralités

    émissions à un niveau qui permet la réception des transmissions diffusées. Généralités Le OC-G-5646-2-ET ne doit pas être utilisé dans une application où la santé des personnes et l'intégrité des équipements seraient mises en danger s'il venait à tomber en panne.

  • Page 15: Mounting The Oc-G-5646-2-Et

    Environmental considerations The OC-G-5646-2-ET enclosure is a fire enclosure as long as it is mounted so that none of the connectors are facing downwards. If a fire enclosure is used, the enclosure should be metal or plastic (with a flammability rating of UL94 V1 or better);...
  • Page 16 OC-G-5646-2-ET OLED Lighting Controllers - User Manual The OC-G-5646-2-ET does not have an IP rating and must be mounted so that moisture and dirt cannot enter the unit. To avoid a fire hazard, consider the implications of overheating in the unlikely event of a fault in the OC-G-5646-2-ET.

  • Page 17: Connections

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual Connections The connectors fitted to an OC-G-5646-2-ET controller are shown in the illustration below. You should refer to Section 6.3, Trigger inputs for the pin allocations of the trigger connectors. See Section 11, Reference information for information about connection ratings.

  • Page 18: Lighting Output

    The lighting connections to an OC-G-5646-2-ET controller are made through OLED connectors. The lighting output connections and data lines must not be commoned to any other controllers or grounded in any way.

  • Page 19: Connectors

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual Connectors The OC-G-5646-2-ET packaging includes mating connectors for the power supply input, and trigger inputs. Should spare parts be required these can be obtained from Würth (www.we-online.com), Farnell (www.farnell.com), or Newark (www.newark.com). See the table below for further information.

  • Page 20: General Description

    The output is only enabled when the trigger input has a voltage on it. Light auto-sensing When a channel does not have a light connected, the OC-G-5646-2-ET continually tries to supply a very small current. When a light is connected, it flashes for a short time (the light is not damaged by this) until the OC-G-5646-2-ET detects that it is connected.

  • Page 21: Output Modes And Triggers

    The output current can be varied from 0% to 100% of full brightness. Pulsed output The output is off by default. When the OC-G-5646-2-ET is triggered, it waits for a delay and then pulses the output. The delay, pulse width, retrigger delay and pulse intensity are all configurable.

  • Page 22: Fault Detection

    Check for ageing of the lighting or a failed LED. Cold start You can clear the OC-G-5646-2-ET configuration to its default settings - this clears the lighting ratings and sets all channels to 50% brightness continuous operation. You can do this by sending the CL command using Ethernet connection.

  • Page 23: Ethernet Communication

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual Ethernet communication You may need to ask your network administrator for advice about setting up the Ethernet connection. Ethernet set up is not affected by cold booting the OC-G-5646-2-ET. www.gardasoft.com See Application note APP923 (available from ) for troubleshooting Ethernet problems.

  • Page 24: Dhcp

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual GardasoftMaint allows you to view the controllers on your network, change their IP addresses and upgrade their firmware if it becomes necessary. In the messaging section of GardasoftMaint, you can communicate with your controller using the commands explained in Section 10, Command configuration.

  • Page 25: Fixed Ip Address

    An enquiry message is a UDP packet from source port 30310, destination port 30311 with the message body ‘Gardasoft Search’ (8-bit ASCII, 13 characters). The message output by the OC-G-5646-2-ET is a UDP packet from source port 30311, destination port 30310. It is formatted as: Gardasoft,OC-G-5646-2-ET,000000,111111111111,22222222...

  • Page 26: Webpage Configuration

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual Webpage configuration You can set up the OC-G-5646-2-ET through its own internal web pages. Click the Open w ebpage... button in GardasoftMaint to take you directly to the OC-G-5646-2-ET's webpages. You can also type the controller’s IP address (displayed in GardasoftMaint) into your web...

  • Page 27: Configuration Page

    You can set up all the parameters for each output channel. Pressing the Submit button updates the OC-G-5646-2-ET configuration and saves the changes to non-volatile memory. On this page you can: Change the current rating for the light (but use this feature with care).

  • Page 28: General Setup Page

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual Check the OLED Lifetime status. The display is updated when the OLED nears the end of its life, and again when the OLED reaches the end of its life. General setup page The General Setup page allows you to set up or clear the webpage's password and set up the internal trigger.

  • Page 29: Command Configuration

    Several commands can be put into one command line by separating them by a semi-colon ( ; ).The OC-G-5646-2-ET sends any replies to the commands followed by a > character to show that the command line has completed.

  • Page 30: General Commands

    10.2.1 General commands Any changes you make using Ethernet commands are not saved permanently until you send the AW command. Report the version of firmw are running in the OC-G-5646-2-ET This command returns the firmware version. For example: VR returns...
  • Page 31 OC-G-5646-2-ET OLED Lighting Controllers - User Manual Save the settings to memory Once the settings are saved to memory they are retained when the unit is switched off. If this is not done, changes to the settings are volatile, and if the unit is switched off they revert to those in force when the last AW command was issued.
  • Page 32 OC-G-5646-2-ET OLED Lighting Controllers - User Manual When using Ethernet, use the following forms of the ST command: Reports the general settings. A typical output is: TM 1, TP 20.00ms Where: Internal trigger. 1 = on, 0 = off. Internal trigger period.

  • Page 33: Lighting Channel Commands

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual If Ethernet messages are not enabled, the last event or error number can be read by this command. Any error displayed on the unit is cleared, so if there was a lighting error, the OC-G- 5646-2-ET resumes auto-sensing on that channel.
  • Page 34 OC-G-5646-2-ET OLED Lighting Controllers - User Manual Set pulse mode The output can be set up to pulse on a trigger input. The delay from trigger to the start of the pulse, the length of the pulse and the brightness are configurable.

  • Page 35: Command Summary

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual RPc,p Where: c = output channel (1 to 2) p = trigger input (1 or 2) This command can be used to override the state of an input. The override is cancelled as soon as an edge is detected on the input.

  • Page 36: Reference Information

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual Reference information This section contains the specification for the OC-G-5646-2-ET and any restrictions on its use. Error and event codes are also listed. 11.1 Specification OC-G-5646-2-ET User interface Ethernet Output channels 2, constant current...

  • Page 37: Restrictions

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual 11.2 Restrictions The maximum output power for OC-G-5646-2-ET is 30W per channel. The following timings and restrictions are applied whenever settings are saved (using the AW command). Continuous M ode The maximum output current is 2A per channel.

  • Page 38: Error Codes

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual 11.3 Error codes Error number Reason Err 1 A parameter value is invalid. Err 2 Command not recognised. Err 3 Numeric value is the wrong format. Err 4 Wrong number of parameters. This is a warning, not an error. One of the parameters is out of range.

  • Page 39: Fatal Error Codes

    OC-G-5646-2-ET OLED Lighting Controllers - User Manual 11.4 Fatal error codes Error number Reason The internal temperature of the OC-G-5646-2-ET Err 44 has become too high. Err 40, Err 41 One channel is outputting more current than Err 45 expected.
  • Page 40 OC-G-5646-2-ET OLED Lighting Controllers - User Manual These pages are left blank for your notes: — —...
  • Page 41 OC-G-5646-2-ET OLED Lighting Controllers - User Manual — —...
  • Page 42 OC-G-5646-2-ET OLED Lighting Controllers - User Manual Version 003 - January 2020 © Copyright 2020 Gardasoft Vision Ltd Gardasoft LLC Gardasoft Vision Ltd Oak Ridge Road Trinity Court Weare Buckingway Business Park New Hampshire Cambridge CB24 4UQ UK 03281 USA...
