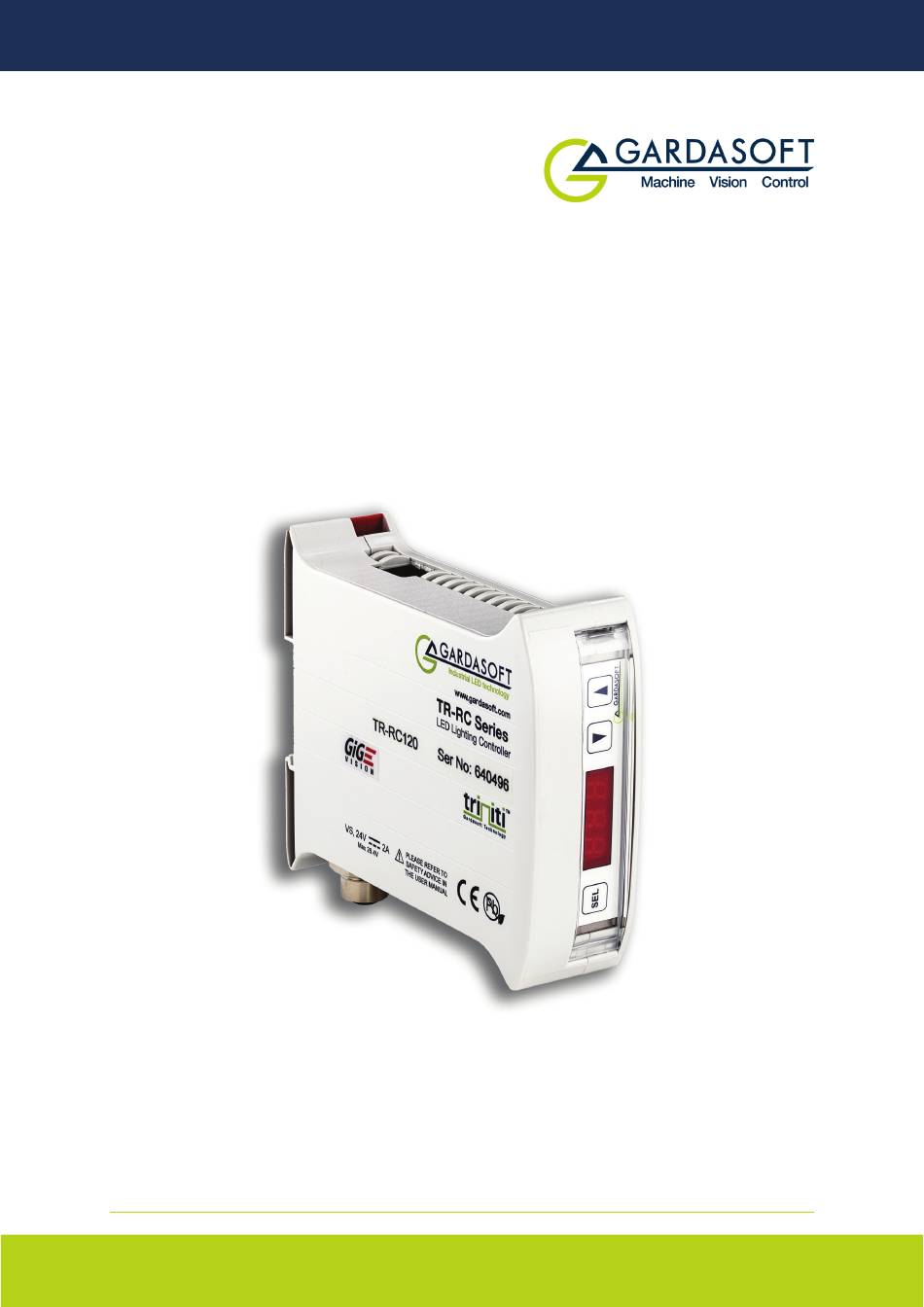

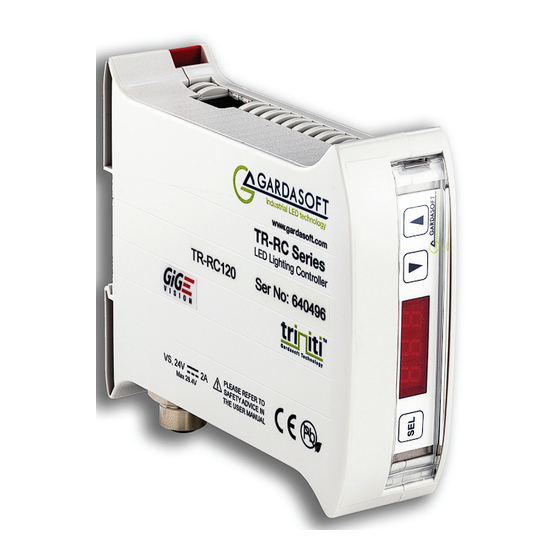

- Page 1 TR-RC120 LED Lighting Controllers - User Manual TR-RC120 LED Lighting Controller Issue 009 User manual www.gardasoft.com...
- Page 2 Deliberate acts of endangerment and vandalism are not covered by this document and must be considered by the installer. While care has been taken in the preparation of this document Gardasoft Vision Ltd will not accept any liability for consequential loss of any kind except those required by law.
-
Page 3: Table Of Contents
TR-RC120 LED Lighting Controllers - User Manual Contents Getting started TR-RC120 features - a summary GigE Vision™ Safety precautions Heat Electrical General Installation guidance (disclaimer) Sicherheitsvorkehrungen Hitze Elektrik Allgemeines Haftungsausschluss Mesures de sécurité Chaleur Électricité Général Clause de non-responsabilité Mounting the TR-RC120... - Page 4 TR-RC120 LED Lighting Controllers - User Manual Factory settings Ethernet address IP address 8.1.1 DHCP 8.1.2 Fixed IP address Automatic sensing Web page configuration Main page Configuration page General setup page Configuration commands 10.1 Lighting setup 10.2 Front panel commands 10.2.1 Startup 10.2.2 Setting the light rating 10.2.3...
-
Page 5: Getting Started
Mount the TR-RC120 (see Section 5, “Mounting the TR-RC120”) and connect it up as required (see Section 6, “Connecting the TR-RC120”). Set up the TR-RC120 for the desired operation as described in Section 10, “Configuration commands”, or Section 10.2, “Front panel commands”. -
Page 6: Safety Precautions
Heat Ensure the TR-RC120 is mounted correctly (see Section 5, “Mounting the TR-RC120”), and that you do not exceed any of the ratings for the unit (see Section 11.1, “Specifications and ratings”). At its maximum ratings, the TR-RC120’s enclosure can exceed 65°C which is sufficient to cause a burn if touched. -
Page 7: Installation Guidance (Disclaimer)
This information is for guidance only. Installers must perform their own risk assessment specific to each installation. While Gardasoft Vision Ltd has taken every care in the preparation of this advice, Gardasoft Vision Ltd accepts no liability for damages of any kind except those required by law. -
Page 8: Allgemeines
Chaleur Assurez-vous que le TR-RC120 est monté correctement (voir Section 5, “Mounting the TR-RC120”) et que vous ne dépassez pas les charges pour l’unité (voir Section 11.1, “Specifications and ratings”). À ces charges maximales, le boitier du TR-RC120 peuvent dépasser 65°C, ce TR-RC120 qui est suffisant pour occasionner des brûlures en... -
Page 9: Électricité
émissions à un niveau permettant la réception des transmissions radiodiffusées. Général Le TR-RC120 ne doit pas être utilisé dans une situation où toute panne de celui-ci mettrait en danger la santé des personnes ou risquerait d’endommager d’autres équipements. -
Page 10: Environmental Considerations
Leave 25mm clear either side of the TR-RC120 to aid cooling. The TR-RC120 has an ingress rating of IP20 and it should be sited so that water or dirt cannot enter the unit. -
Page 11: Power
Power Any power supply derived from mains electricity must have a Safety Extra Low Voltage (SELV) output. Route low voltage wiring to the TR-RC120 controller separately from mains electricity wiring. If this is not possible, make sure the low voltage wiring has an insulation rating that is appropriate or supplementary insulation is used. -
Page 12: Ethernet
Ethernet The RJ45 connector fitted to the TR-RC120 requires a straight-through cable to connect to a network switch, hub or router. The connection is 10Base-T and operates at 10MBits per second. -
Page 13: General Description
101% to 200% 30ms 201% to 300% 10ms 301% to 500% 501% to 1000% So for example, if the brightness is set to 250%, then the TR-RC120 does not allow pulses greater than 10ms long. With 10ms pulses, any trigger — —... -
Page 14: Triggering
Trigger pulses should have a minimum pulse width of 2μs. You can set the sense of the TR-RC120 trigger input. Do this by setting the P flag from the front panel (see Section 10.2, “Front panel commands”), the web page (see Section 9, “Web page configuration”) or the RE command (see Section... -
Page 15: Internal Trigger
“Triggering”). 7.2.2 Internal trigger You can set the TR-RC120 to generate its own trigger pulses. The period of these pulses can be set in increments of 100μs from approximately 10ms to 5000ms. You can set the RC1xx to produce a single pulse for testing purpose. This is set by either a TR1 command (see Section 10.3.3, “General commands”) -
Page 16: Safepower
SafePower Technology, available from www.gardasoft.com. Light characterisation You can reduce the time it takes for your TR-RC120 controller to reach high accuracy in time-critical machine vision systems when changing from one overdrive brightness setting to another. This can be done by instructing the controller to make current and voltage measurements up to a customer specified brightness limit when the light is characterised. -
Page 17: Flags
This flag cannot be used when the light is set according to its voltage rating. The S flag cannot be changed from the TR-RC120’s front panel. Fault detection The TR-RC120 can detect a range of errors when connected to a light. The displayed error codes are shown below with their reasons. Error Reason Internal power dissipation too high. -
Page 18: Ethernet Address
TR-RC120 LED Lighting Controllers - User Manual configuration by using the CL command (see Section 10.3.3, “General commands”). You can start the TR-RC120 from a powered down state (cold boot) with the front panel keypad locked; this process removes the keypad lock. Ethernet address You may need to ask your network administrator for advice about setting up the Ethernet connection. -
Page 19: Dhcp
Section 10.3.3, “General commands” and Section 10.3.4, “Lighting commands”. You can also open the selected controller’s web pages at the click of a button. For more information about the TR-RC120’s web pages, see Section 9, “Web page configuration”. 8.1.1 DHCP Most networks use a DHCP server. -
Page 20: Web Page Configuration
An enquiry message is a UDP packet from source port 30310, destination port 30311 with the message body ‘Gardasoft Search’ (8-bit ASCII, 16 characters). The message output by the TR-RC120 is a UDP packet from source port 30311, destination port 30310. It is formatted as: Gardasoft,TR-RC120,000000,111111111111,22222222... - Page 21 TR-RC120 LED Lighting Controllers - User Manual view the light data, and view the measurements the TR-RC120 makes during operation. To refresh this page it is important that you click the Refresh button on the web page () rather than on your web browser.
-
Page 22: General Setup Page
100% brightness continuously. The TR-RC120 controller is compatible with current or voltage rated lights. If you connect a triniti enabled light, its ratings are set up by the TR-RC120 automatically. Otherwise you must enter the rating for the light before connecting it to the controller, or if you replace it with a different type of light. -
Page 23: Front Panel Commands
The firmware version number is then displayed, for example 068, and then the unit is ready for operation. When the TR-RC120 is not being configured, the display shows the status of the lighting output as shown below: The TR-RC120 displays an error if a light is connected but no rating specified. -
Page 24: Setting The Light Rating
TR-RC120 LED Lighting Controllers - User Manual Display Select to: To set up an output channel. Set up Ethernet access. Set up a key lock. Factory test. Do not use. Set up the internal trigger. View the trigger status. View the output current. -
Page 25: Setting Up Switched Output
TR-RC120 LED Lighting Controllers - User Manual bri is displayed. Press the SEL button. Use the and buttons to select the required brightness from 1% to 99%. Press the SEL button. Use the and buttons to set the Error Detect flag: F E is enabled, F-E is disabled. -
Page 26: Setting Up Pulsed Operation
TR-RC120 LED Lighting Controllers - User Manual 10.2.5 Setting up pulsed operation Press and hold SEL for 1 second and follow the keystrokes below: CH1 is displayed. Press the SEL button. Use the and buttons to select SPu (other options displayed are SOn and SCo). -
Page 27: Setting Time Periods
SEL button. 10.2.7 Setting the internal trigger timer You can set an internal trigger timer when the TR-RC120 is in pulse mode. When set, the TR-RC120 triggers with the same delay and pulse width already set up as described in Section 10.2.5, “Setting up pulsed operation”. -
Page 28: Using The Key Lock
TR-RC120 LED Lighting Controllers - User Manual Ensure the TR-RC120 is set to pulsed operation. To set the period of the internal trigger timer, press and hold SEL for 1 second, and follow the keystrokes below: CH1 is displayed. Press the SEL button. -
Page 29: Viewing The Trigger Status
10.2.9 Viewing the trigger status You can view the trigger input status and whether the light is pulsing when the TR-RC120 is set to pulse or switched mode. To do this, press and hold SEL for I second and is displayed. Use the and keys to scroll to and press SEL. -
Page 30: Ethernet Commands
10.3.2 Command structure Commands are sent by the host (a PC connected to the network). The command is returned by the TR-RC120, together with any reply generated <LF><CR> by that command, in UDP or TCP/IP packets followed by The last character sent is the >... - Page 31 When an error occurs, the host may request a reply message to be sent to it by using the GT command. Multiple commands can be entered on one line by separating them with a semi-colon (;). The TR-RC120 replies to the commands individually, <LF><CR> and adding the > prompt after the final separating them with command reply.
-
Page 32: General Commands
Save the settings to memory This command saves the settings to non-volatile memory. If you power cycle the TR-RC120 before sending the AW command, all changes are lost and the unit returns to the values set before the last AW command. - Page 33 TM1,TP20.00ms Where: = Trigger status. 1 is on, 0 is off = Trigger period Show configuration This command shows the configuration of the TR-RC120. Type in: A typical reply to this command might be: CH1,MD0,S50.0,0.0,DL1.000ms,PU1.000ms,RT 0.0us,IP1,FL0,CS0.000A,RA0.000A Where: Channel number; this is always 1.
- Page 34 Use this command to read the last event or error code when Ethernet messaging has been disabled: Any error displayed on the TR-RC120 is cleared. If this was a lighting error, the unit resumes auto-sensing. If there are no outstanding events or errors, the ‘>’...
-
Page 35: Lighting Commands
Use upper case characters and do not enter commas or spaces. Disable the keypad You may find it necessary to lock the front panel keypad to prevent any unauthorised changes to the settings to the TR-RC120. To disable the keypad, type in the following command: KBd,c Where: 0 to enable the keypad. - Page 36 TR-RC120 LED Lighting Controllers - User Manual Where: s = brightness as a percentage (0 to 100). Set pulse mode This command sets the output to pulse on a trigger input: RT1,p,d,s,r Where: pulse width in milliseconds (0.1 to 100).
-
Page 37: Command Summary
TR-RC120 LED Lighting Controllers - User Manual Setting m = 0 turns off automatic sensing. The PQ command returns the current maximum brightness for automatic sensing. 10.4 Command summary Command Example Effect Save changes. Clear configuration. Enable Ethernet messages. Clear any error conditions. -
Page 38: Tr-Rc120 Reference Information
TR-RC120 LED Lighting Controllers - User Manual TR-RC120 reference information This section of the user manual contains information about the TR-RC120’s specification, ratings. You can find further information in Section 11.2, “Restrictions”, Section 11.3, “Event codes”, and Section 11.4, “Error codes”. -
Page 39: Restrictions
> 1.5A 50% max duty cycle 11.3 Event codes On receipt of a GT1 command, the TR-RC120 sends event messages over its Ethernet link when a light is connected or an error occurs. The message format is: Evt1,<event code> Some event codes are displayed on the TR-RC120’s front panel; these are shown in red. -
Page 40: Error Codes
SafePower train-up has failed or been cancelled. In switch mode, the light has been turned off because the duty cycle is too high. 11.4 Error codes Some error codes are displayed in the TR-RC120’s front panel; these are shown in red. Error Reason number Err 1 A parameter value is invalid. - Page 41 TR-RC120 LED Lighting Controllers - User Manual Error Reason number Err 27 Ethernet settings cannot be read from the EEPROM. They may be incorrect. Err 34, 47, The internal power dissipation is too high. Output turned off. Err 35, The output current to the light is too low.
- Page 42 TR-RC120 LED Lighting Controllers - User Manual Issue 009 - September 2021 © Copyright 2021 Gardasoft Vision Ltd Gardasoft Vision Ltd Trinity Court Buckingway Business Park Cambridge CB24 4UQ UK tel: +44 1954 234970 www.gardasoft.com...
