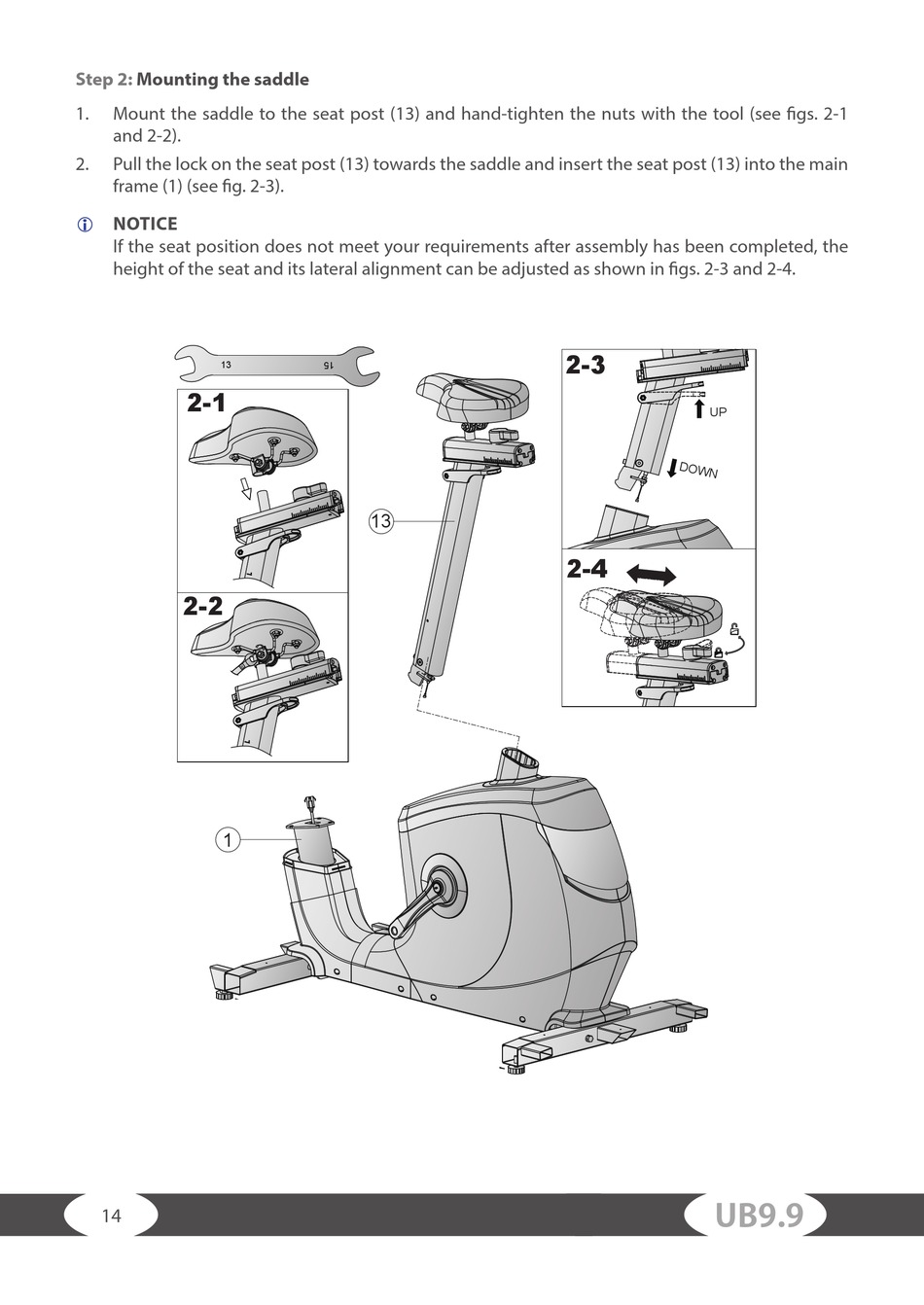

Step 2: Mounting the saddle
1. Mount the saddle to the seat post (13) and hand-tighten the nuts with the tool (see figs. 2-1
and 2-2).
2. Pull the lock on the seat post (13) towards the saddle and insert the seat post (13) into the main
frame (1) (see fig. 2-3).
NOTICE
L
If the seat position does not meet your requirements after assembly has been completed, the
height of the seat and its lateral alignment can be adjusted as shown in figs. 2-3 and 2-4.
13
2-1
2-2
1
Step-2
14
13
2-3
2-4
