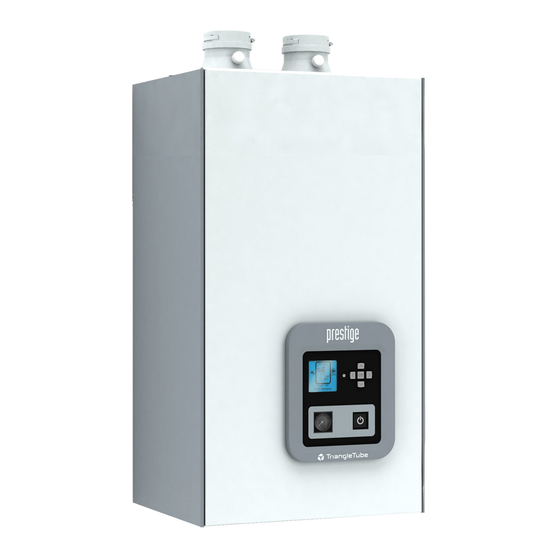

TriangleTube Prestige SOLO 60 Instructions Manual

TriangleTube Prestige SOLO 60 Instructions Manual

Natural to propane
Hide thumbs Also See for Prestige SOLO 60:

Advertisement

Quick Links

Prestige SOLO 60, 175 and 250 Boilers
Natural to Propane Instructions
Kit Part Number: PSRKIT33
Kit Includes:
-
Rating Label
-
Conversion Label
-
(3) Propane Gas Orifices
-
T-25 Torx Wrench
Recommended Tools
-
Standard Adjustable Wrenches
-
Phillips-Head Screwdriver
-
Flat-blade Screwdriver
-
T-40 Torx Wrench
-
Calibrated Combustion Analyzer
W RNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
W RNING
Failure to follow instructions below can
result in severe personal injury or damage if
ignored.
Instructions
installer/service technician.
Read all instructions before proceeding.
Follow instructions in proper order.
W RNING
For your safety, turn off electrical power
supply at service panel before proceeding to
avoid possible electrical shock hazard.
Failure to do so can cause severe personal
injury or death.
are
for
a
qualified
NOTI E
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
NOTI E
Upon completion of the conversion from
Natural to Propane, affix the new rating
label included in the kit to the unit adjacent
to the existing rating label. DO NOT affix
the new label over the existing rating label.
Add propane conversion labeling to the gas
valve.
NOTI E
These instructions cover NG to LP conversion
for MCBA and Trimax controlled Prestige
boilers. Specific control related instructions
are denoted as (MCBA) or (TRIMAX).
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Prestige SOLO 60 and is the answer not in the manual?

Questions and answers

Summary of Contents for TriangleTube Prestige SOLO 60

  • Page 1 Prestige SOLO 60, 175 and 250 Boilers Natural to Propane Instructions Kit Part Number: PSRKIT33 Kit Includes: Rating Label Conversion Label (3) Propane Gas Orifices T-25 Torx Wrench Recommended Tools Standard Adjustable Wrenches Phillips-Head Screwdriver Flat-blade Screwdriver T-40 Torx Wrench...
  • Page 2 Prestige SOLO 60, 175 and 250 Boilers Natural to Propane Instructions Installation of the Propane Orifice the venturi for reference later when the gas valve is reassembled to the venturi. 1. Turn off the electrical power supply to the boiler.
  • Page 3 Prestige SOLO 60, 175 and 250 Boilers Natural to Propane Instructions the blower housing using the two T-25 Torx Blower Install Brass Gas Valve head screws. Propane Orifice. Maintain Black Gasket NOTI E on Gas Valve For the reassembly process do not use adhesive on the venturi / blower gasket.
  • Page 4 Prestige SOLO 60, 175 and 250 Boilers Natural to Propane Instructions Combustion Test and Adjustments 2. If the combustion levels during high fire is out- side the recommended combustion settings 1. The installer MUST perform a complete com- adjust the THROTTLE SCREW (see Fig. 3)
  • Page 5 Prestige SOLO 60, 175 and 250 Boilers Natural to Propane Instructions Offset Pressure Manual Operation Cover Screw Throttle Released Screw NOTI E An adequate CH load must be present to dis- sipate the heat generated during the combus- Fig. 3: Combustion Adjustment - Prestige Burner tion test.
  • Page 6 Prestige SOLO 60, 175 and 250 Boilers Natural to Propane Instructions 8. If the combustion level (O 2 or CO 2 ) during low 9. Press the OK button while the fan icon is high- fire is not within +/-0.2 of the combustion level lighted to shutdown the burner.
