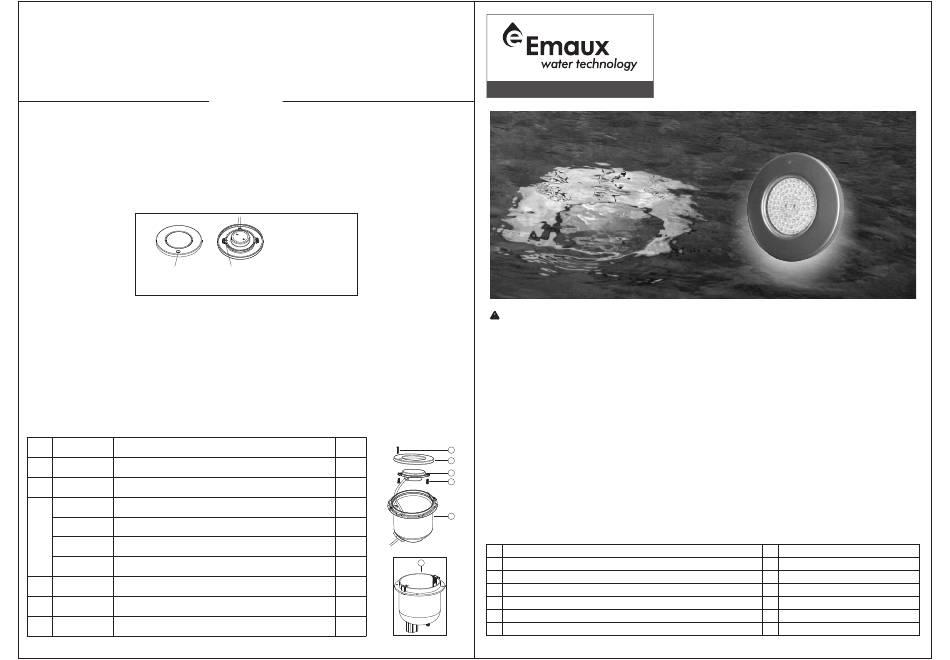

emaux EL-S100S Operating Manual

C) To remove light assembly, remove the special pilot screw at top of face ring, remove light assembly from
niche, and place assembly on deck.
D) Disassemble light fixture and remove LED panel.
E) Secure the face ring to the light fixture. Sealing screws must be tightened in the following manner to ensure a
proper seal.
F) Replace the light assembly into the niche and tighten the special pilot screw.
Use only the special pilot screw provided with this underwater light. This screw mounts and electrically grounds
the housing securely to the mounting ring and wet niche. Failure to use the screw provided could create an
electrical hazard which could result in death or serious injury to pool users, installers or others due to electrical
shock.
G) Fill pool until the underwater light is completely submerged in water before operating the light for more than
60 seconds. Turn on main switch or circuit breaker, as well as the switch which specifically operates the
underwater light, to check for proper operation.
PILOT SCREW
MAINTENANCE OF THE LIGHTS
1) Do not leave the lights "on" above water for longer than 1 minute.
2) Before switching on the lights, check whether the lights are fully submerged underwater and
the circuit boxes are running properly.
3) This unit does not need any kind of maintenance. If it is not working properly, please contact
EMAUX authorized dealer where you purchase the unit from.
4) Warranty will be voided if the Emaux Underwater Light was dismantled by unauthorized
personnel.
REPLACEMENT PARTS
Item Part No. Product Description
∅33/16x9/8" Pilot Screw
1 3011058
2 440256151 Face Ring Assembly for EL-S100 Lights
440546196 Ultra- thin 99 LED panel 10W Warm White
440546195 Ultra- thin 99 LED panel 10W Cool White
3
440546197 Ultra- thin 99 LED panel 10W RGB
440546198 Ultra- thin 99 LED panel 10W Single Blue
4 03011354 M4*8 Round Head Screw
5 88047302 Stainless Steel Housing
6 88043502 Plastic Housing
WARNING
SCREW OFF AND REPLACE LED PANEL
Figure 4
Qty
1
1
1
1
1
1
2
1
1
4-4
www.emauxgroup.com
SAFETY WARNINGS
• Only suitably qualified installers is allowed to carry out the installation of this product.
•
Avoid direct contact with electrical power.
•
Respect all regulations in effect for preventing accidents.
•
All units are required to be disconnected from the main electricity before any operation of maintenance.
•
Never handle with wet hands and feet.
• This unit is design for use only when fully submerged in water, connecting with a safety transformer.
• Never operate this Underwater Light for more than 1 minute unless it is totally submerged in water.
• Be sure power is off before installing or removing LED plate. Allow LED plate to cool before replacing.
• This product should be installed according to your local electrical installation ordinances and regulations.
• Maximum Depth for Light installation at 1 meter.
•
Maximum Water Temperature Range for light operation 0 - 30 C
1
•
for type Z attachments
2
The external flexible cable or cord of this luminaire cannot be replaced;if the cord is damaged,the
3
luminaire shall be destroyed.
4
SPECIFICATION
5
A) Electrical Specification :
B) Colour change options(For RGB version only)
1 White
6 3
Blue
5 Red+Green
7 Mode A: Blue+ Gradual Red
9 Mode C: Blue+Gradual Green
Mode E: RGB Colour Sequence: Red>Green>Blue
11
Mode F: Four Colour Sequence: Red>Green>Blue>Purple
13

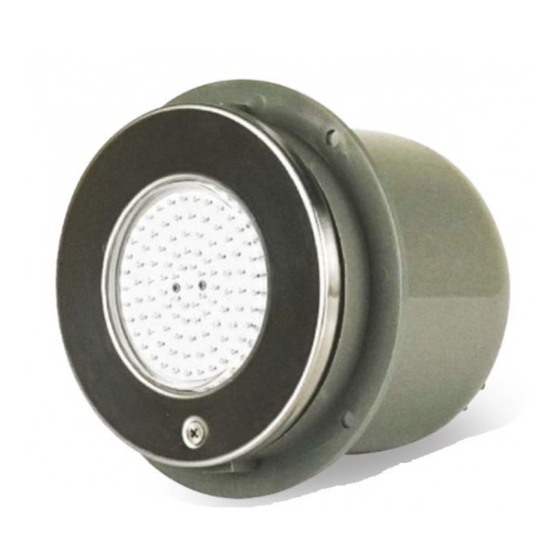

EL-S100
UNDERWATER LIGHT OPERATING MANUAL
Model：EL-S100S / EL-S100P / EL-S100L
Keep this manual for future reference
o
1) Voltage : AC12V 2) Frequency : 50/60Hz 3) Power : 10W
2 Green
4 Green+Blue
6 Red+Blue
8
Mode B: Green+Gradual Red
10 Mode D: Blue+Gradual Red
12 Auto Colour Change
Rapid Auto Colour Change
14
4-1
EMLI18051002
