emaux Arr30 Manual

Maintenance of the Lights

1) Do not leave the lights "on" above water for longer than 1 minute.
2) Do not leave the lights directly under sunlight. Fill the pool with fresh water as soon as possible after the
lights are installed.
3) Before switching on the lights, check whether the lights are fully submerged underwater and the circuit
boxes are running properly.
4) This unit does not need any kind of maintenance. If it is not working properly, please contact EMAUX
authorized dealer where you purchase the unit from.
5) Warranty will be voided if the Emaux Underwater Light was dismantled by unauthorized personnel.

REPLACEMENT PARTS

Item Part No.
1 03011334 M5x30 Screw
89045901 LED Panel (Cool White)
89045902 LED Panel (RGB)
2
89045903 LED Panel (Warm White)
89045904 LED Panel (Single Blue)
3 01050166 Cable clip
4 03011307 M4x12 Screw
5 89040203 Fitting for Concrete pool
6 89045517 Fitting for vinly pool
1
2
3
4
Description Qty
5 6
4-4
www.emauxgroup.com
1
1

SAFETY WARNINGS

• Only qualified electrician is allowed to carry out the installation of this product.
• Avoid direct contact with electrical power.
4
• Respect all regulations in effect for preventing accidents.
• All units are required to be disconnected from the main electricity before any operation of maintenance.
4 • Never handle with wet hands and feet.
• This unit is design for use only when fully submerged in fresh water, connecting with a safety transformer.
• Never operate this Underwater Light for more than 1 minute unless it is totally submerged in water.
1
• Be sure power is off before installing or removing LED plate. Allow LED plate to cool before replacing.
• This product should be installed according to your local electrical installation ordinances and regulations.
1
• Maximum Depth for Light installation at 1 meter.
• Maximum Water Temperature Range for light operation 0 - 30 C.
• For type Y attachments
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire
shall be replaced.

SPECIFICATION

A) Electrical Specification : 1) Voltage : AC12V
B) Colour change options(For RGB version only) :
1 White
3 Blue
5
Red+Green
7 Mode A: Blue+ Gradual Red
9 Mode C: Blue+Gradual Green
11 Mode E: RGB Colour Sequence: Red>Green>Blue
Mode F: Four Colour Sequence: Red>Green>Blue>Purple
13
Arr30

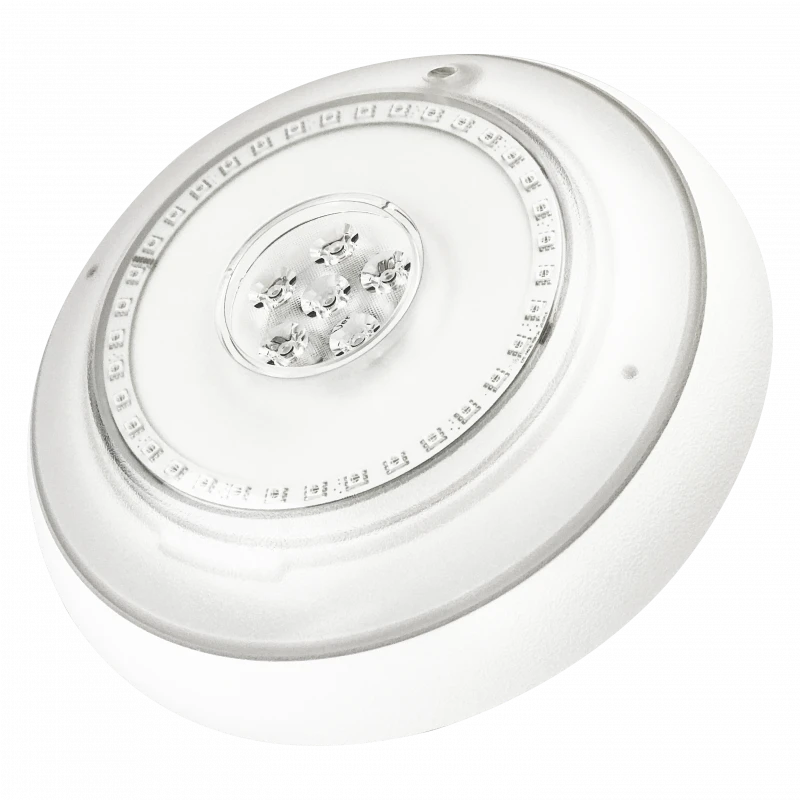

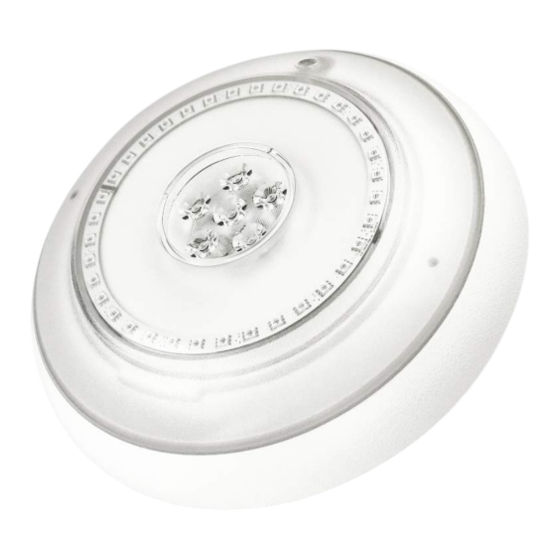

UNDERWATER LIGHT OPERATING MANUAL
Model Arr30CW / Arr30B / Arr30C / Arr30W
Keep this manual for future reference
o
2) Frequency : 50/60Hz 3) Power : 30W.
2 Green
4 Green+Blue
6
Red+Blue
8 Mode B: Green+Gradual Red
10 Mode D: Blue+Gradual Red
12 Auto Colour Change
Rapid Auto Colour Change
14
4-1
EMLI18051508
