Power Box - Steelcase FlexFrame Installation Manual

NOTE: Refer to page 2 for information
on routing power or lighting cords.

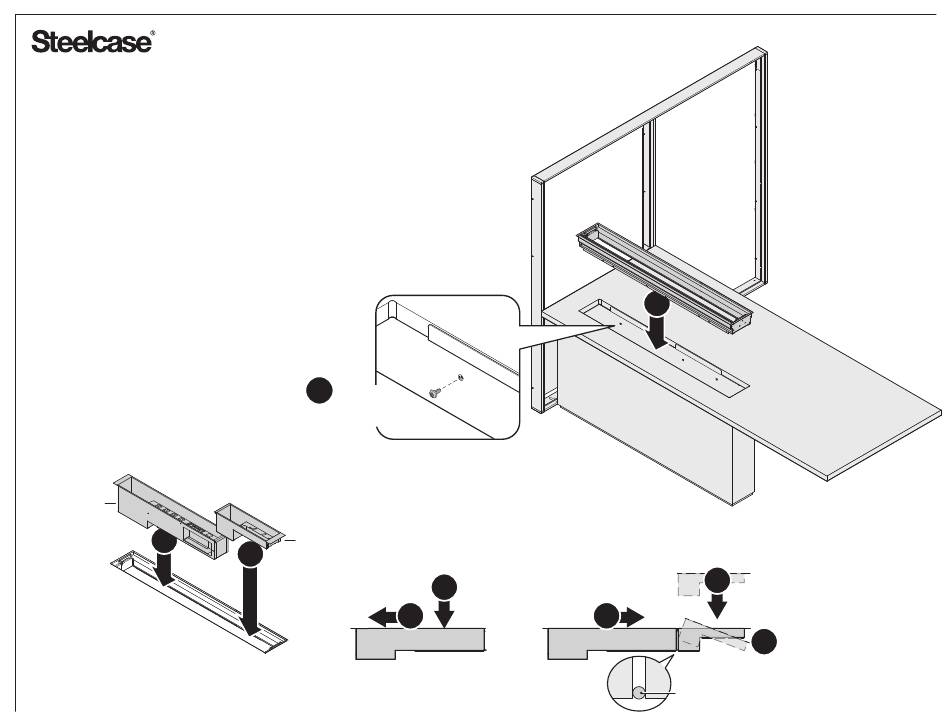

5.
Install (6) screws into threaded inserts
in box as shown.
Leave screws slightly loose.
6.
Lower grommet sleeve into place in
opening. Tighten all screws to secure.
7.
Drop power box into position. Push to
the rear (slide under lid support).
8.
Place puck/accessory tray and seat
as shown.

POWER BOX

7
5
1/4-20 x .50"
Machine Screws
(3) each side
PUCK/ACCESSORY TRAY
8
7b
REAR
7a
8b
FRONT
6
8a
8c
Components will fit over
PIN (fixed in support box).
Page 8 of 9
939502138 Rev B
