INSTALL WORKSURFACE

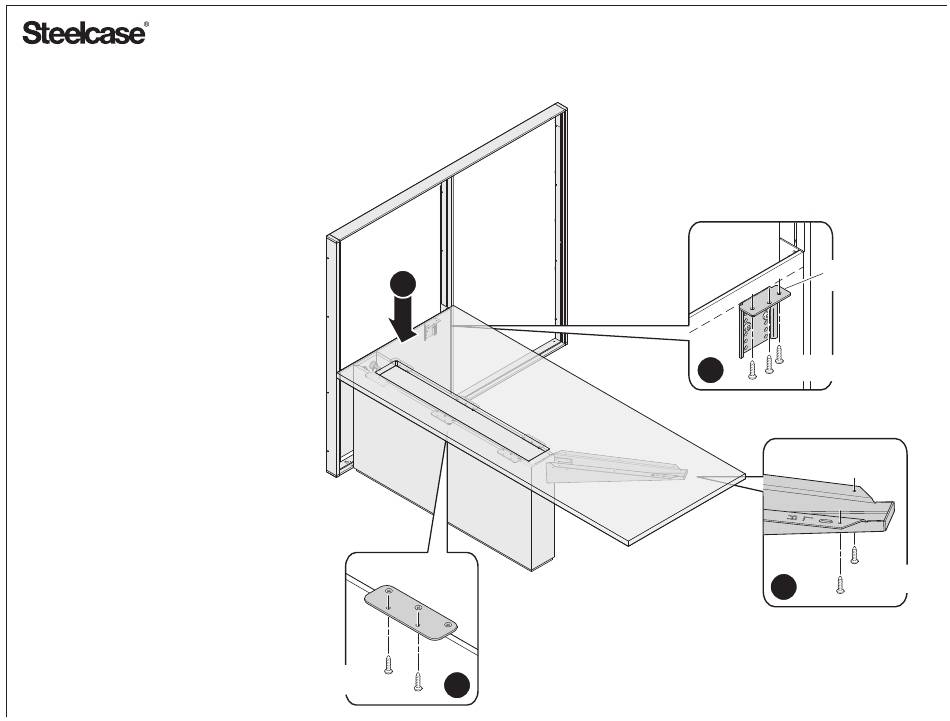

1.
Lower worksurface onto support box
assembly. Align holes in the bottom of
the worksurface with holes in brackets.
This will assure that the grommet
will fit into opening.
2.
Secure worksurface to brackets
with (2) screws, each bracket.
Failure to install screws into
worksurface holes will cause
the grommet to not fit correctly!
3.
Secure worksurface to cantilever.
4.
Secure worksurface to worksurface
bracket.
1
#10-9 x .875"
2
Flat Head Screws
WORKSURFACE
BRACKET
#10-9 x .875"
4
Truss Head Screws
#10-9 x .875"
3
Truss Head Screws
Page 7 of 9
939502138 Rev B
