Steelcase FlexFrame Installation Manual page 5

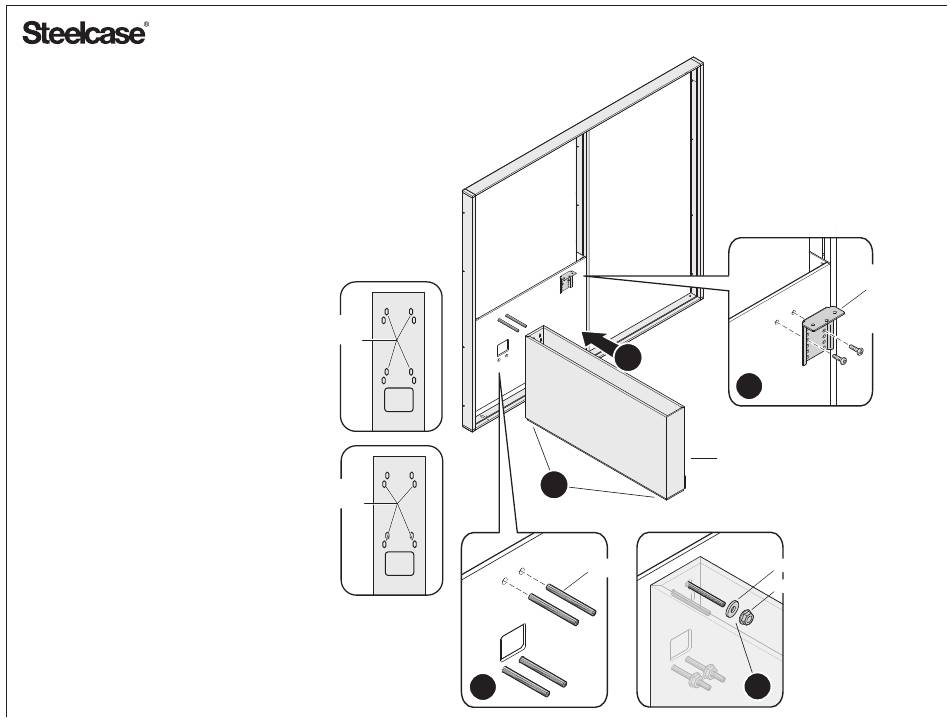

ATTACH COMPONENTS
1.
Attach worksurface bracket to skin
as shown with screws provided in kit.
Locate bracket to the mid point
of the adjustment.
2.
Install (4) 3" long ¼-20 double
ended studs into holes in skin.
3.
Slide support box into position by
inserting studs through slots in back
of box.
4.
Loosely install (4) ¼-20 lock nuts
and washers provided in kit.
5.
Level top of support box with top of
worksurface bracket by adjusting glides
in bottom of box.
6.
Level support box front to back
then tighten lock nuts.
Use this set of
slots for desk.
Use this set of
slots for table.
3
6
STUDS
2
Locate
WORKSURFACE
BRACKET
at midpoint of
adjustment.
1
SUPPORT BOX
WASHERS
NUTS
4
Page 5 of 9
939502138 Rev B
