Auxiliary Devices Wiring Diagram - Fermax VIDEO CONTROL KIT Manual

KITS
VIDEOCONTROL
VIDEOCONTROL

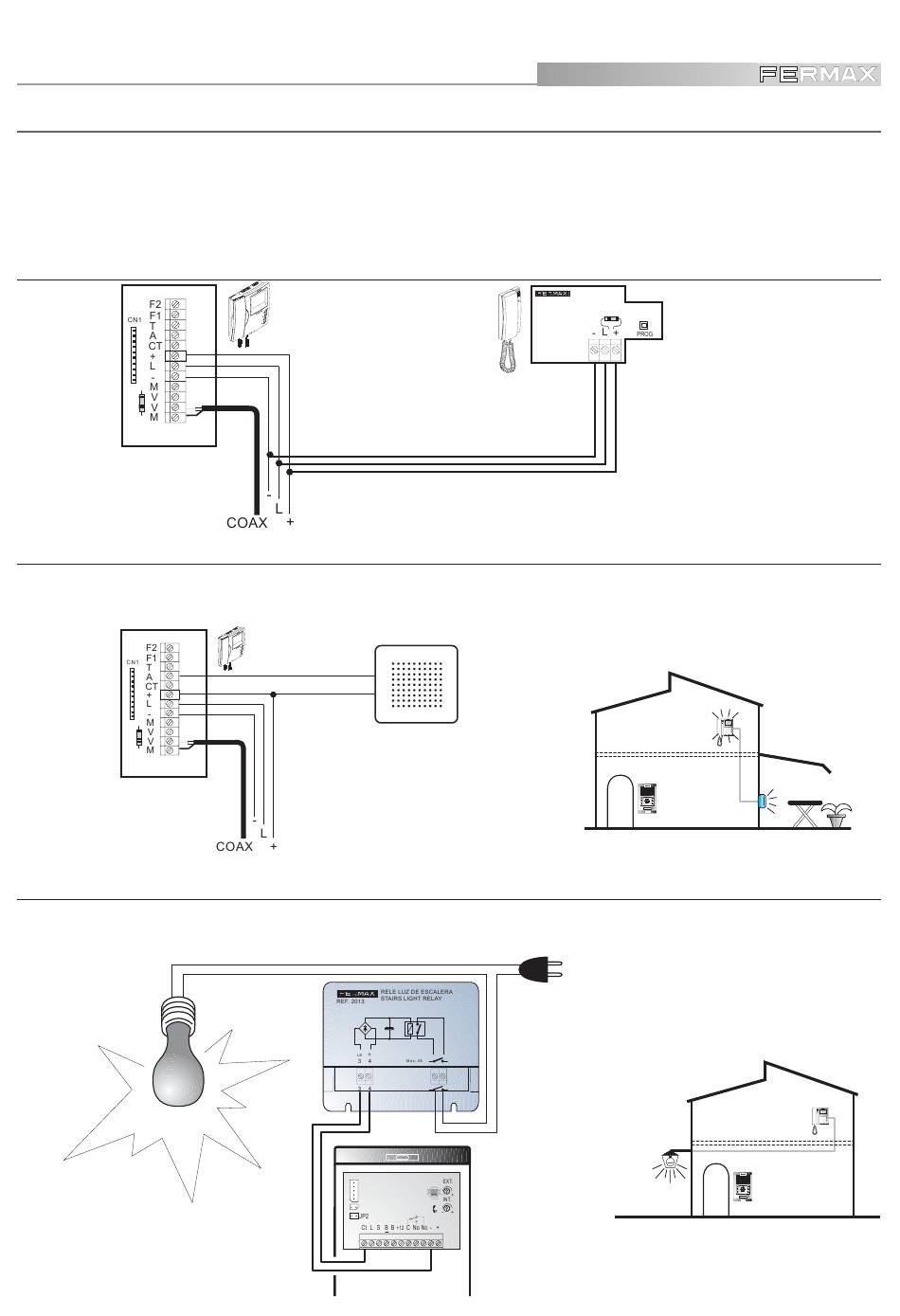

AUXILIARY DEVICES WIRING DIAGRAM

This Kit can be enhanced with the accessories listed below.
For further improvements, such as additional monitors, second access, etc., please
do not hesitate to contact your supplier.
Enhancement with Additional Telephone
Call Extension
The extension (REF.2040) is used to listen to the call sound in a different place to
where the Monitor is installed, for example in the garden.
Relay for dimly lit area
In zones where the aerial camera has to focus on a dimly lit or dark area, external
lighting becomes necessary .
Pag 22
REF.2040
ADDITIONAL TELEPHONE REF. 2451
HIGH RESOLUTION
FLAT MONITOR
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
HIGH RESOLUTION
PAN &TILT CCD CAMERA
HIGH RESOLUTION FLAT MONITOR
