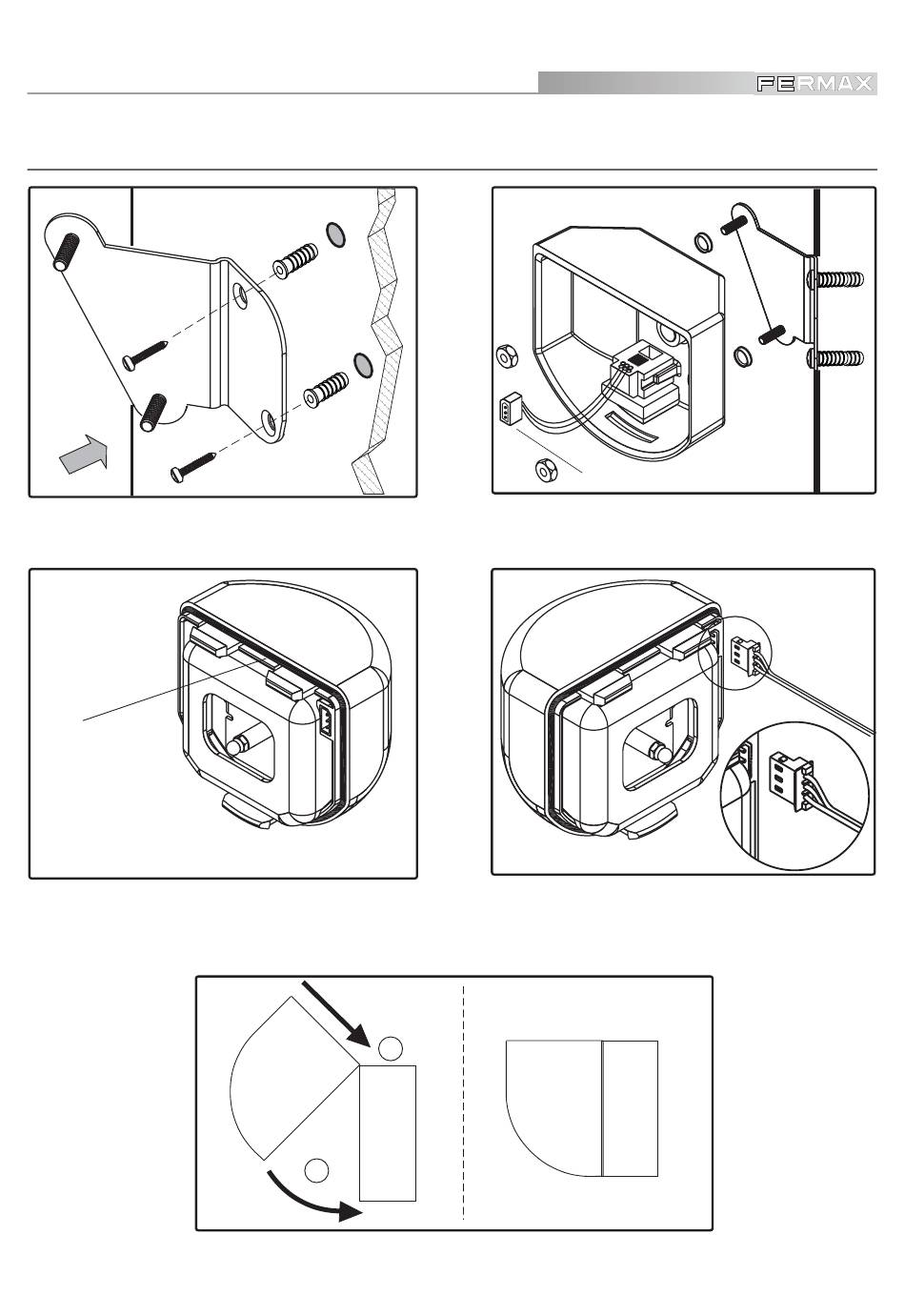

MOUNTING THE AERIAL CAMERA

Fit camera support to wall.
JUNTA
TORICA
It is very important not to forget to fit the
O-ring, as it carries out the camera's
sealant function.
Align the back and front of camera and press to close. Fit the upper part first (1) then
press until the camera clicks into position (2).
Pag 14
Place the rear part of the camera onto the support.
A size 7 tube wrench or box spanner is utilised.
1
2
CONECTOR MOLEX
Fit the molex connector on the camera
rear to front of camera.
CONECTOR
MOLEX
