KITS
VIDEOCONTROL
VIDEOCONTROL

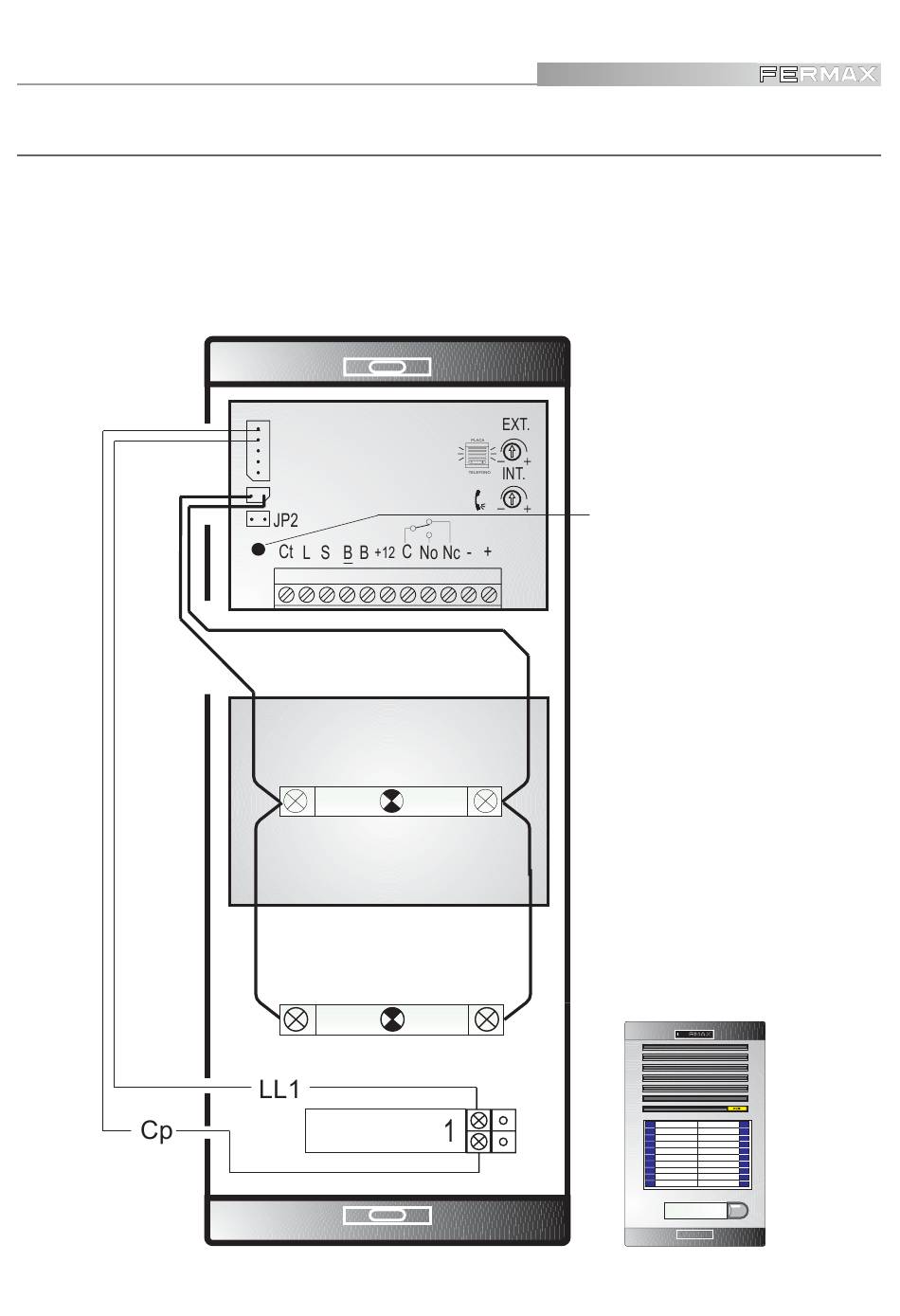

PANEL INTERNAL WIRING DIAGRAM
The Outdoor Panel comes prewired from the factory, both in the Kit with panoramic
card slot (Videocontrol Kit) and the Kit with panel-integrated camera (Videocontrol Kit
Plus). The system can work if these connections are altered or eliminated. Therefore,
when you fit any wires in the prewired terminals you must keep the already existing
wiring.
ADS KIT AMPLIFIER
(*) DIAGNOSTIC LED
CARDHOLDER
Videocontrol Kit Panel
Pag 18
